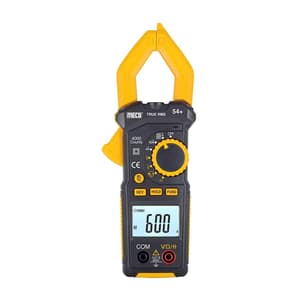

Digital Clam Meter: 3¾ Digit / 4000 count 600A AC TRMS Digital Clampmeter with NCV (LED, Buzzer & EF Strength), Backlight, Torch Light, Audible Continuity, Data Hold, Capacitance and APO functions.

Features & Benefits:

• 3¾ Digits
• 4000 Counts
• TRMS
• Auto Ranging
• AC Current upto 600A
• AC Voltage upto 600V
• DC Voltage upto 600V
• Capacitance upto 4mF
• Resistance upto 40MΩ
• Audible Continuity
• Diode Test
• Data Hold
• Backlight Display
• Torchlight for Clamp
• NCV (LED, Buzzer, EF Strength)
• Auto Power Off
• Low Battery Indication
• Jaw Opening: Cable Dia. 30mm (max.)

Accessories

• Test Leads x 1 Pair
• 1.5V 'AAA' Battery x 2 Pcs
• Instruction Manual x 1 Pc
• Carrying Case x 1 Pc

Specifications:

AC Current (TRMS): 4A, 40A, 400A, 600A (Auto Ranging) Accuracy: ±(2.0%rdg+5dgt) on all ranges except ±(3.0%rdg+5dgt) on 4A AC Response: 40Hz ~ 2KHz Overload: 600A AC max. for 1 min

AC Voltage (TRMS): 4V, 40V, 400V, 600V (Auto Ranging) Accuracy: ±(1.2%rdg+5dgt) AC Response: 40Hz ~ 2KHz

DC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto Ranging Accuracy: ±(0.8%rdg+5dgt)

Capacitance: 4nF, 40nF, 400nF, 4μF, 40μF, 400μF, 4mF (Auto) Accuracy: ±(3%rdg+5dgt)

Resistance (Auto Ranging): 400ohms, 4k, 40K, 400k , 4M, 40M (ohms) Accuracy: ±(1.2%rdg+5dgt)

Low Battery: + and - is indicated
