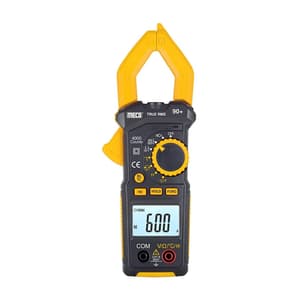

Digital Clam Meter: 3 ¾ 4000 Count 600A AC TRMS Autoranging Digital Clamp Meter with K Type Thermocouple, Temperature, NCV (LED, Buzzer & EF Strength), Backlight, Torch Light, Diode Test, Data Hold, Capacitance and APO functions.

Features & Benefits:

• 3¾ Digits
• 4000 Counts
• TRMS
• Auto Ranging
• AC Current upto 600A
• AC Voltage upto 600V
• DC Voltage upto 600V
• Temperature
• Capacitance upto 4mF
• Frequency upto 4KHz
• Resistance upto 40MΩ
• Audible Continuity
• Diode Test
• Data Hold
• Backlight Display
• Torchlight for Clamp
• NCV (LED, Buzzer & EF Strength)
• Auto Power Off
• Low Battery Indication
• Jaw Opening : Cable Dia. 30mm (max.)

Accessories

• Test Leads x 1 Pair
• 1.5V 'AAA' Battery x 2 Pcs
• Instruction Manual x 1 Pc
• K Type Thermocouple (upto 260° C) x 1 Pair
• Carrying Case x 1 Pc

Specifications:

AC Current (TRMS): 4A, 40A, 400A, 600A (Auto Ranging) Accuracy: ±(2.0%rdg+5dgt) on all ranges except ±(3.0%rdg+5dgt) on 4A AC Response: 40Hz ~ 2KHz Overload: 600A AC max. for 1 min

AC Voltage (TRMS): 4V, 40V, 400V, 600V (Auto Ranging) Accuracy: ±(1.2%rdg+5dgt) AC Response: 40Hz ~ 2KHz

DC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto Ranging) Accuracy: ±(0.8%rdg+5dgt)

Temperature: -20 C to 1000 C / 0 0 -4 F to 1832 F Accuracy: ±(3%rdg+5dgt)

Capacitance: 4nF, 40nF, 400nF, 4μF, 40μF, 400μF, 4mF (Auto) Accuracy: ±(3%rdg+5dgt) Note: 4nF for Reference only

Frequency: 4Hz ~ 4KHz (Auto Ranging) Accuracy: ±(0.5%rdg+5dgt)

Resistance (Auto Ranging): 400, 4k, 40K, 400k , 4M, 40M (ohms) Accuracy: ±(1.2%rdg+5dgt)

Low Battery: + and - is indicated

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
