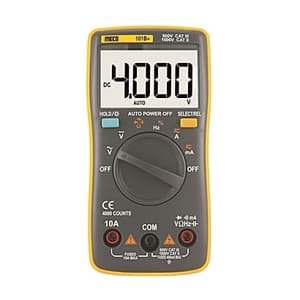

3-3/4 Digit / 4000 Count Autoranging Pocket Size Digital Multimeter with Backlight, Frequency, Capacitance, Duty Cycle, RELΔ, Diode Test, Audible Continuity, Data Hold, and APO function

Features & Benefits:

• 3-3/4 Digits
• 4000 Counts
• Autoranging
• DC Voltage upto 1000V
• AC Voltage upto 750V
• DC Current upto 10A
• AC Current upto 10A
• Resistance upto 40MΩ
• Capacitance upto 200.0µF
• Frequency upto 10.00MHz
• Duty Cycle 0.1% ~ 99.9%
• Diode Test
• Audible Continuity
• Data Hold
• REL Δ
• LCD with Backlight
• Auto Power Off
• Low Battery Indication

Accessories:

• One pair of Test Leads,
• Battery (installed),
• Instruction Manual



DC Voltage: 400mV / 4 / 40 / 400 / 1000V Accuracy: ±(0.5%rdg + 4dgt) on 400mV/4/40/400V ±(0.8%rdg + 4dgt) on 1000V

AC Voltage : 4 / 40 / 400 / 750V Accuracy:±(1.5%rdg + 4dgt) on 750V ±(1.2%rdg + 4dgt) on all ranges except above AC Response: 40Hz - 400 Hz

DC Current:  40/400mA/4/10A Accuracy: ±(1.0%rdg + 4dgt) on 40/400mA ±(1.5%rdg + 4dgt) on 4/10A

AC Current: 40/400mA/4/10A Accuracy: ±(2.0%rdg + 4dgt) AC Response: 40Hz - 200 Hz

Resistance: 400Ω /4 / 40 / 400 KΩ /4 / 40MΩ Accuracy: ±(2.0%rdg + 4dgt) on 40MΩ ±(0.8%rdg + 4dgt) on all ranges except above

Capacitance: 4 / 40 / 400nF / 4 / 40 / 400µF / 4mF Accuracy: ±(3.5%rdg + 4dgt) on all ranges except ±(2.5%rdg + 4dgt) on 40nF ±(5.0%rdg + 4dgt) on 4nF

Frequency: 99.99 - 20.00MHz Sensitivity: 1V to 36V Ac Accuracy: ±(0.8%rdg + 2dgt)

Duty Cycle: 0.1~99.9% Sensitivity: 1V to 36V Ac Accuracy: ±(0.8%rdg + 2dgt)
