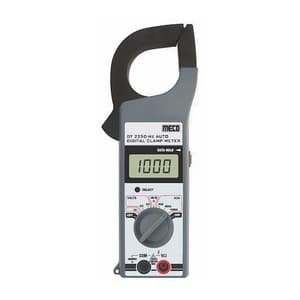

Digital multimeter: 3¾ Digit / 4,200 Counts 1000 AC TRMS Auto Ranging Digital Clamp Meter with Frequency, Data Hold, Duty Cycle, Diode Test, Audible Continuity, Data Hold and APO functions

Features & Benefits:

• 3 ¾ Digits
• 4200 Counts
• TRMS
• Auto / Manual Ranging
• DC Voltage upto 1000V
• AC Voltage upto 750V
• AC Current upto 1000A
• Resistance upto 60MΩ
• Frequency upto 500.0KHz
• Duty Cycle 1% to 90% (Auto)
• Temperature
• Diode Test
• Audible Continuity
• Data Hold
• Auto Power Off
• Low Battery Indication
• Jaw Opening : Cable Dia. 55mm (max.)

Accessories:

• One pair of test leads,
• Instruction manual,
• 1.5V batterys (installed),
• Carring Case,

Specifications:

DC Voltage: 4V, 40V, 400V, 1000V (Auto) Accuracy ±(0.5%rdg+4dgt) on 4V ±(0.7%rdg+4dgt) on 40V & 400V ±(1%rdg+4dgt) on 1000V

AC Voltage:4V, 40V, 400V, 750V (Auto) (40-500Hz) Accuracy ±(1.0%rdg+8dgt) on all ranges except ±(1.5%rdg+8dgt) on 750V

AC Current 40A, 400A, 1000A Accuracy ±(3%rdg+4dgt) on 40A ±(2%rdg+4dgt) on 400A, 1000A Overload 1000A AC max. for 1 min

Resistance: 400V, 4kV, 40KV400kV, 4MV, 40MV, (Auto Ranging) Accuracy ±(0.7%rdg+4dgt) on all ranges except ±(1.2%rdg+4dgt) on 4MV, ±(2.5%rdg+4dgt) on 40MV

% Duty Cycle 1% to 90% (Auto) Accuracy ±(0.5%rdg+5dgt)

Frequency: 10.00Hz, 50.00Hz, 500.0Hz, 5.000KHz, 50.00KHz, 500.0KHz (Auto) Accuracy ±(0.5%rdg+2dgt) Sensitivity 3V Over Volt Protection 200V DC or AC peak

Temperature: 20° to 1000°C Accuracy: ±(1.5 % + 15 Digits)

Audible Cont. 40V Approx Diode Test 1.0 ± 0.6mA Approx
