Digital multimeter: 3¾ Digit, 6,000 Counts, 2000A DC & 2000A AC (TRMS) Clamp Meter 60 Segment Bargraph, Auto & Manual Ranging, ZERO, D Hz/Duty, RPM MIN-MAX, Data Hold, Audible Continuity, APO

Features & Benefits:

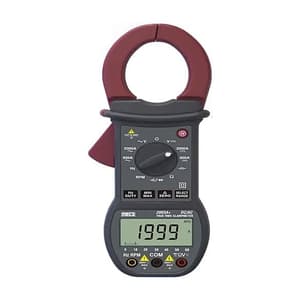

• MECO 2003A Digital Clampmeter/Tong Tester 2000A DC & 2000A AC. TRMS
• Display 3 3/4 LCD Display
• Data Hold Yes
• Display Count 6000 Count
• Range Selection Auto
• Sp. function Audible continuity, Diode Test function
• Jaw Opening Cable Dia 55mm max

Accessories:

• Pair of test leads x 1,
• Instruction manual x 1,
• 1.5V batterys (installed) x 2,
• Carring Case x 1

Specifications:

DC Voltage: 600mV, 6V, 60V, 600V (Auto & Manual Ranging) Accuracy ±(0.5%rdg + 5dgt) Overload 600V DC / AC rms.

AC Voltage: 6V, 60V, 600V (Auto & Manual Ranging) Accuracy ±(1%rdg + 6dgt) (50 ~ 60Hz) ±(2%rdg + 4dgt) (40 ~ 500Hz) Overload 600V DC / AC rms.

DC Current:600A, 2000A Accuracy ±(2.5%rdg + 5dgt) Overload 2000A DC max. for 1 min.

AC Current 600A, 2000A Accuracy ±(3.5%rdg + 5dgt) Overload 2000A AC max. for 1 min.

Resistance:600 , 6k , 60k , 600k , VV V V 6M , 60M , (Auto & Manual V V Ranging) Accuracy±(0.3%rdg + 8dgt) 600V ±(0.3%rdg + 5dgt) 6~600kV ±(0.5%rdg + 5dgt) 6MV ±(2%rdg + 5dgt) 60MV Overload 600V DC/AC rms.

Frequency: 9.999Hz ~ 999.9KHz (autoranging) Accuracy: ±(0.1 %rdg + 2dgt) (for non distorted waveforms only)

Capacitance: 40nF, 400nF, 4 F, 40 F m m (auto-ranging) Accuracy ±(3%rdg+40dgt) on 40nF (Use ZERO) D ±(3%rdg+10dgt) on 400nF to 4 Fm ±(6%rdg+10dgts) on 40 Fm Overload 600V DC / AC rms

% Duty 1% to 90% Cycle Accuracy ±(0.5%rdg+5dgt)

RPM 9.999K RPM, 99.99K RPM (Auto Ranging) Accuracy ±0.5%rdg of fullscale
