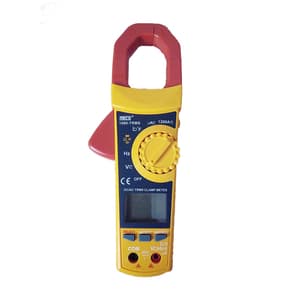

Digital multimeter: 3-5/6 Digit / 6000 count 1200A DC / AC TRMS Autoranging Digital Clampmeter with uA Range, Backlight, K type Thermocouple, APO, Capacitance, Frequency, Duty Cycle, Data Hold, Diode Test,Audible Continuity and APO functions

Features & Benefits:

• 3-5/6 Digits
• 6000 Counts
• TRMS
• Auto / Manual Ranging
• DC Voltage upto 1000V
• AC Voltage upto 750V
• DC Current upto 1200A
• AC Current upto 1200A
• Resistance upto 60MΩ
• Capacitance upto 9.999mF
• Frequency upto 10MHz
• Duty Cycle 0.1% ~ 99.9%
• Temperature
• Diode Test
• Audible Continuity
• Data Hold
• Backlight Display
• Auto Power Off
• Low Battery Indication
• Jaw Opening : Cable Dia. 30mm (max.)

Accessories

• Pair of test leads x 1,
• Instruction manual x 1,
• 1.5V batterys (installed) x 2,
• Carring Case x 1
• K Type Thermocouple upto 260ºC

Specifications:

DC Voltage: 600mV / 6 / 60 / 600 / 1000V Accuracy ±(0.5%rdg + 3dgt)

AC Voltage: 600mV / 6 / 60 / 600 / 750V Accuracy ±(1.0% rdg + 5dgt) AC Response 40Hz~1000Hz

DC Current: 600 / 6000 A / 60 / 600 / m 1200A Accuracy ±(1.2% rdg + 10dgt) on 600 / 6000 Am ±(2.0% rdg + 30dgt) on 60 / 600 / 1200A Overload 1200A DC Max. for 1min. for A

AC Current: 600 / 6000µA / 60 / 600 / 1200A Accuracy ±(2.0% rdg + 30dgt) on all Ranges AC Response 40 Hz~1000Hz Overload 1200A AC Max. for 1min. for A

Resistance: 600 / 6 / 60 / 600k / 6 / V V 60MV Accuracy ±(0.8% rdg + 5dgt) on 600V ±(0.8% rdg + 3dgt) on 6 / 60 / 600k / 6M V V ±(1.0% rdg + 25dgt) on 60MV

Frequency: 99.99Hz~10.00MHz Accuracy ±(0.01% rdg + 3dgt)

Capacitance: 9.999 / 99.99 / 999.9nF / 9.999 / 99.99 / 999.9µF / 9.999mF Accuracy ±(3.5% rdg + 60dgt) on all ranges except ±(5.0% rdg + 10dgt) on 999.9µF & 9.999mF

% Duty Cycle (auto ranging) Range : 0.1%~99.9%

Temperature -20°C~1000°C / 0°F~1832°F Accuracy ±(1% rdg + 5dgt) on - 20°C~400°C ±(1.5% rdg + 15dgt) on 400°C~1000°C ±(0.75% rdg + 5 dgt) on 0°F~750°F ±(1.5% rdg + 15 dgt) on 750°F~1832°F

µA Measurement for HVAC 600.0µA / 6000µA Flame Sensors Accuracy ±(1% rdg + 20 dgt)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
