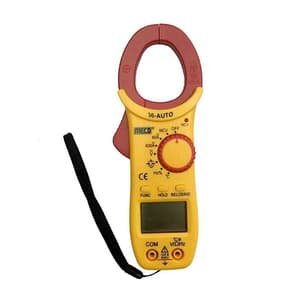

Digital multimeter: 3-5/6 Digit / 6000 count 600A AC/DC Autoranging Digital Clampmeter with K Type Thermocouple, Temperature, NCV (LED, Buzzer & EF Strength), Backlight, Torch Light, Cpacitanence, Frequency, Duty Cycle, Audible Continuity, Data Hold, Diode Test and APO functions

Features & Benefits:

• 3 5/6 Digits
• 6000 Counts
• TRMS
• Auto / Manual Ranging
• AC Current upto 1000A
• AC Voltage upto 750V
• DC Voltage upto 1000V
• Capacitance upto 600µF
• Frequency upto 10MHz
• Duty Cycle 0.1% ~ 99%
• Resistance upto 60MΩ
• Temperature
• Operating Environment 0 to 50C
• Storage Environment -20 to 60C
• Relative humidity 80% RH
• NCV (LED, Buzzer & EF Strength)
• Auto Power Off
• Low Battery Indication
• Jaw Opening : Cable Dia. 30mm (max.)
• Auto Ranging Digital Clampmeter with LCD Backlight.
• Torch Light.
• Auto Power Off.
• Resistance.
• Audible Continuity.
• Data Hold.
• When the Resistance is Less than 30%, The Buzzer is Sounded.

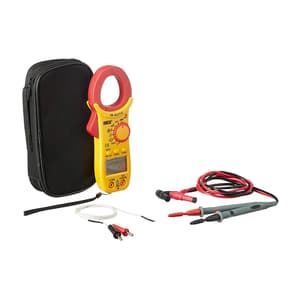

Accessories:

• Pair of test leads x 1,
• Instruction manual x 1,
• 1.5V batterys (installed) x 2,
• Carring Case x 1

Specifications:

DC Voltage: 400mV, 4V, 40V, 400V, 600V Accuracy : ±3% rdg + 3dgt

AC Voltage:4V, 40V, 400V, 600V (Auto Ranging) Accuracy: ±1.2% rdg +3 dgt

AC Current : 40A, 400A Accuracy: ± 2.5% rdg + 8 dgt

Resistance: 400Ω, 4KΩ, 40KΩ, 400KΩ, 4MΩ, 40MΩ (Auto Ranging) Accuracy 1.0 % rdg + 3 dgt

% Duty Cycle 0.1% to 99.9% (Auto) Accuracy ± 0.5%rdg+ 5dgt

Frequency: 10Hz, 100Hz, 1000Hz,10KHz, 100KHz, 1000KHz, 10MHz (Auto Ranging) Accuracy ± 0.5%rdg+ 2dgt Sensitivity 3V Over Volt Protection 200V DC or AC peak

Capacitance: 5nF, 50nF, 500nF, 5μF, 50μF, 200μF (Auto) Accuracy: ± 4% rdg + 3 dgt

Temperature: 20° to 750°C Accuracy: 3.0 % + 5 Digits

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
