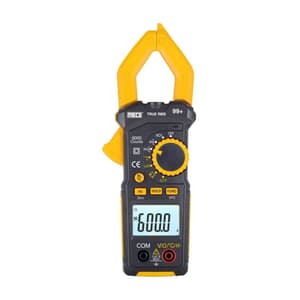

Digital Clam Meter: 3-5/6 Digit 6000 Count 600A DC/AC TRMS Autoranging Digital Clampmeter with K Type Thermocouple, Temperature, NCV (LED, Buzzer & EF Strength), Backlight, Torchlight, Capacitance, Diode Test, Audible Continuity, Data Hold, Hz / Duty, LoZ (DC V / AC V), VFC and APO functions.

Features & Benefits:

• 3-5/6 Digits
• 6000 Counts
• TRMS
• Auto Ranging
• AC Current upto 600A
• DC Current upto 600A
• AC Voltage upto 600V
• DC Voltage upto 600V
• Temperature
• Capacitance upto 100mF
• Frequency upto 100KHz
• Duty Cycle 0.1% ~ 99.9%
• Resistance upto 60MΩ
• Audible Continuity
• Diode Test
• Data Hold
• Backlight Display
• Torch Light for Clamp
• NCV (LED, Buzzer & EF Strength)
• Loz (DCV / ACV)
• VFC
• Auto Power Off
• Low Battery Indication
• Jaw Opening: Cable Dia. 30mm (max.)

Accessories

• Test Leads x 1 Pair
• 1.5V 'AAA' Battery x 2 Pcs
• Instruction Manual x 1 Pc
• K Type Thermocouple (upto 260° C) x 1 Pair
• Carrying Case x 1 Pc

Specifications:

AC Current (TRMS): 60A / 600A Accuracy: ±(2.5%rdg+3dgt) AC Response: 40Hz ~ 1KHz Overload: 600A AC max. for 1 min

DC Current: 60A/ 600A Accuracy: ±(3%rdg+3dgt) Overload: 600A DC max. for 1 min

AC Voltage (TRMS): 6V, 60V, 600V (Auto) Accuracy: ±(1.0%rdg+4dgt) on 6V, 60V ±(1.2%rdg+10dgt) on 600V AC Response: 40Hz ~ 1KHz

DC Voltage: 600mV, 6V, 60V, 600V (Auto) Accuracy: ±(0.5%rdg+5dgt) on all ranges except ±(0.8%rdg+5dgt) on 600V

Temperature: -20°C to 1000°C / -4°F to1832°F Accuracy: ±(1.0%rdg+3dgt)

Capacitance: 6nF, 60nF, 600nF, 6μF, 60μF, 600μF, 6mF, 60mF, 100mF (Auto) Accuracy: ±(4%rdg+5dgt) on all ranges except ±(5%rdg+5dgt) on 100mF Note: 6nF for Reference only

Frequency: 60Hz, 600Hz, 6KHz, 60KHz, 100KHz (Auto) Accuracy: ±(1.5%rdg+5dgt)

Resistance (Auto): 600, 6k, 60K, 600k, 6M, 60M (ohms) Accuracy: ±(0.8%rdg+5dgt) on all ranges except ±(1.2%rdg+5dgt) on 60M ohms

Low Battery: Plus (+) and Minus (-) are indicated

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
