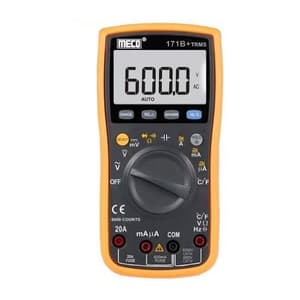

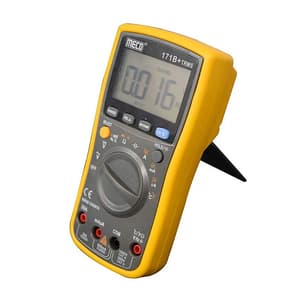

3% Digit / 6000 Count TRMS Autoranging Digital Multimeter With Holestar, Backlight, K Type Thermocouple, Temperature, Frequency, Capacitance, Duty Cycle, Diode Test, Audible Continuity, Data Hold, and APO functions

Features & Benefits:

• Auto Power Off.
• Overload Protection & Multiple Test Facility.
• Rugged & Durable Design.
• Audible Continuity.
• Lcd with Backlight.
• Diode Test, Audible Continuity, Data Hold.
• It can Measure High Voltage.
• The Upper Limit of the Frequency if 20 MHz.

Accessories:

• One Pair of Test Leads,
• Holester,
• Battery (installed),
• Instruction Manual,
• K Type Thermocouple (upto 260 C)



DC Voltage: 600mV/ 6 / 60 / 600 / 1000V Accuracy: ± (1.0% rdg + 4 dgt) on 600mV, ± (0.5% rdg + 2 dgt) on 6/60/600V,  ±(7.0% rdg + 3 dgt) on 1000V

AC Voltage TRMS: 600mV / 6 / 60 / 600 / 750V Accuracy: ± (1.0% rdg + 5 dgt) on all ranges except  ± (1.2% rdg + 5 dgt) on 600mV ±  (1.5% rdg+5 dgt) on 750V AC Response: 40Hz - 500Hz

DC Current:  600 / 6000 A / 60 / 600mA / 6 / 20A Accuracy:  ± (1.0% rdg + 2 dgt) on 600/6000 A  ± ((1.2% rdg + 3 dgt) on 60/600mA  ± (1.5% rdg + 5 dgt) on 6 / 20A

AC Current TRMS: 600 / 6000μA / 60 / 600mA / 6 / 20A Accuracy: ± ((1.5% rdg + 5 dgt) on 600/6000μA ,  ± (2.0% rdg + 5 dgt) on 60/600mA ,  ± (2.5% rdg + 5 dgt) on 6/20A AC Response: 40Hz - 500Hz

Resistance: 600 / 6 / 60 / 600K / 6 / 60M Accuracy: ± (1.2% rdg + 2 dgt) on 600 & 6,  ± (1.0% rdg + 2 dgt) on 6/60/600k  ± (1.5% rdg + 2 dgt) on 60M

Capacitance: 9.999 / 99.99 / 999.9nF/ 9.999 / 99.99 / 999.9 F/ 9.999mF Accuracy: ±(2.0% rdg + 4 dgt) on all ranges except  ± (3.0% rdg + 4 dgt) on 9.999mF

Frequency: 99.99Hz - 20.00MHz Accuracy: ± (0.05% rdg + 4 dgt)

Duty Cycle: 0.1% ~ 99.9% Accuracy: ± ((0.05% rdg + 4 dgt)

Temperature: 40ºC ~ 1000ºC / -40ºF ~ 1832ºF Accuracy: ± (3.0% rdg + 4dgt) on -40 C ~ 0 C / -40 F ~ 32 F, ± (1.0% rdg + 3dgt) on 0 C ~ 400 C / 32 F ~ 750 F, ± (2.0% rdg + 5dgt) on 400 C ~ 1000 C / 750 F ~1832 F
