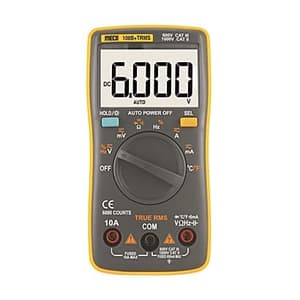

3-5/6 Digit / 6000 Count TRMS Autoranging Pocket Size Digital Multimeter with Backlight, K Type Thermocouple, Temperature, Frequency, Capacitance, Duty Cycle, Diode Test, Audible Continuity, Data Hold and APO functions

Features & Benefits:

• 3-5/6 Digits
• 6000 Counts
• TRMS
• Auto Ranging
• DC Voltage upto 1000V
• AC Voltage upto 750V
• DC Current upto 10A
• AC Current upto 10A
• Resistance upto 60MΩ
• Capacitance upto 9.999mF
• Frequency upto 10.00MHz
• Duty Cycle 0.1% ~ 99.9%
• Temperature
• Diode Test
• Audible Continuity
• Data Hold
• LCD with Backlight
• Auto Power Off
• Low Battery Indication

Accessories:

• One pair of Test Leads,
• Battery (installed),
• Instruction Manual
• K Type Thermocouple (up to 260° C)



DC Voltage: 60 /600mV /6 / 60 /600 / 1000V Accuracy: ±(1.0%rdg + 10dgt) on 60 / 600mV ±(0.5%rdg + 3dgt) on 6 / 60 / 600 / 1000V

AC Voltage TRMS: 60 / 600mV / 6 / 60/ 600 / 750V Accuracy: ±(3.0%rdg + 3dgt) on 60 / 600mV ±(1.0%rdg + 3dgt) on all ranges except above AC Response: 1Hz - 1KHz

DC Current:  60 / 600mA / 6 / 10A Accuracy: ±(1.5%rdg + 3dgt)

AC Current TRMS: 60 / 600mA/ 6 / 10A Accuracy: ±(1.5%rdg + 3dgt) AC Response: 1Hz - 1KHz

Resistance: 600Ω / 6 /60 / 600KΩ / 6 /60MΩ Accuracy: ±(0.5%rdg + 3dgt) on 600Ω ±(0.5%rdg + 2dgt) on 6/60/600KΩ/6MΩ ±(1.5%rdg + 3dgt) on 60MΩ

Capacitance: 9.999/99.99/999.9nF/9.999/99.99/9999.9µF/9.999mF Accuracy: ±(2.0%rdg + 5dgt) on all ranges except ±(5.0%rdg + 5dgt) on 9.999mF ±(5.0%rdg + 20dgt) on 9.999nF

Frequency: 99.99-20.00MHz Accuracy: ±(0.08%rdg + 2dgt)

Duty Cycle: 0.1~99.9% Accuracy: ±(0.8%rdg + 2dgt)

Temperature: -20° to 1000° C / -4° F - 1832° F Accuracy : ±(1.0%rdg + 5dgt) on <400 ° C ±(1.5%rdg + 15dgt) on >400 ° C
