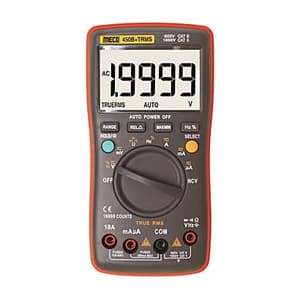

3% Digit / 6000 Count  Autoranging Digital Multimeter With Frequency, Data Hold, NCV, MIN / MAX, Δ ZERO / REL, LCD with Backlight, Capacitance, Duty Cycle, Diode Test, Audible Continuity, Data Hold, and APO functions

Features & Benefits:

• 4½ Digits
• 19999 Counts
• TRMS
• Auto / Manual Ranging
• DC Voltage upto 1000.0V
• AC Voltage upto 750.0V
• DC Current upto 10.000A
• AC Current upto 10.000A
• Resistance upto 199.99MΩ
• Capacitance upto 9.999mF
• Frequency upto 9.999MHz
• Duty Cycle 1% ~ 99%
• Diode Test
• Audible Continuity
• Data Hold
• NCV
• MIN / MAX
• Δ ZERO / REL
• LCD with Backlight
• Auto Power Off
• Low Battery Indication

Accessories:

• One Pair of Test Leads,
• Drawstring Pouch,
• Battery (installed),
• Instruction Manual

Electrical Specification:

DC Voltage: 19.999/199.99 mV/1.999919.999/199.99/1000 V Accuracy:± (0.5% rdg + 3 dgt)

AC Voltage TRMS: 19.999/199.99 mV/1.9999/19.999/199.99/750 V Accuracy: ± (1.0% rdg + 3 dgt) AC Response: 40Hz - 1KHz

DC Current:  199.99/1999.9 µA/19.999/199.99 mA/1.9999/10 A Accuracy: ± (0.8% rdg + 3 dgt) on 199.99/1999.9   ± (1.0% rdg + 3 dgt) on All Other Ranges

AC Current TRMS: 199.99/1999.9µA/19.999/ 199.99mA/1.9999 /10.000A Accuracy: ± (1.0% rdg + 3 dgt) on 199.99/1999.9 µA  ± (1.2% rdg + 3 dgt) on All Other Ranges AC Response: 40Hz - 500Hz

Resistance: 199.99 Ω/1.9999/19.999 /199.99 kΩ/1.9999/19.999 /199.99 mΩ Accuracy:± (1.0% rdg + 3 dgt) on 199.99 Ω , ± (0.5% rdg + 3 dgt) on 1.9999/19.999 /199.99 kΩ, ± (1.5% rdg + 3 dgt) on 1.9999/19.999 mΩ ,  ± (3% rdg + 5 dgt) on 199.99 mΩ

Capacitance: 9.999/99.99/999.9 nF /9.999/99.99/999.9 μF/9.999 mF Accuracy: ± (5.0% rdg + 20 dgt) on 9.999 nF, ± (2.0% rdg + 5 dgt) on 99.99/999.9 nF/9.999/99.99/999.9 µF, ± (5.0% rdg + 5 dgt) on 9.999 mF

Frequency: 99.99/999.9 Hz/9.999/99.99/999.9 KHz/9.999 MHz Accuracy: ± (0.1% rdg + 2 dgt)

Duty Cycle:1-99 % Accuracy: ± (0.1% rdg + 2 dgt)
