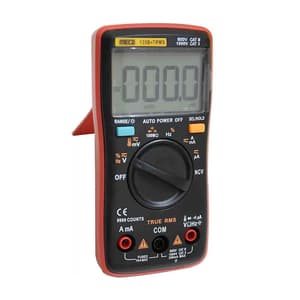

4 Digit / 9999 Count TRMS Autoranging Pocket Size Digital Multimeter with Backlight, K Type Thermocouple, Temperature, Frequency, Capacitance, Duty Cycle, Diode Test, Audible Continuity, Data Hold, NCV and APO functions

Features & Benefits:

• 4 Digits
• 9999 Counts
• TRMS
• Auto / Manual Ranging
• DC Voltage upto 999.9V
• AC Voltage upto 750.0V
• DC Current upto 9.999A
• AC Current upto 9.999A
• Resistance upto 99.99MΩ
• Capacitance upto 9.999mF
• Frequency upto 9.999MHz
• Duty Cycle 1% ~ 99%
• Temperature
• Diode Test
• Audible Continuity
• Data Hold
• NCV
• LCD with Backlight
• Auto Power Off
• Low Battery Indication

Accessories:

• One Pair of Test Leads,
• Drawstring Pouch,
• Battery (installed),
• Instruction Manual
• K Type Thermocouple



DC Voltage: 9.999 / 99.99 / 999.9mV / 9.999 / 99.99 / 999.9V Accuracy: ± (0.5% rdg + 3 dgt)

AC Voltage TRMS: 9.999 / 99.99 / 999.9mV / 9.999 / 99.99 / 750.0V Accuracy: ± (1.0% rdg + 3 dgt) AC Response: 40Hz - 1KHz

DC Current:  99.99/999.9uA 9999mA/9.999A Accuracy: (0.8% ndg 3 dgtl on 99.99/999.9uA ± (1.0% rdg + 3 dgt)

AC Current TRMS: 99.99 / 999.9 A 999.9mA / 9.999A Accuracy: :± (0.8% rdg + 3 dgt) on ± (1.0% rdg + 3 dgt) AC Response: 40Hz - 1KHz

Resistance: 99.99/999 902/9.999/$9.99/999 9/9.999MQ Accuracy: 11.0% rdg3.agti on 99.991210.5% rdg+3 dgtl an 999 92/9.999/99.99/999.9K011.5% rdg+3 dgtl on 9.999M12

Capacitance: 9999/99.99/999.7/9.999/99.99/9999pF/ Accuracy: 15.0% rdg-200 p!+120% rdg-Sept an 39 9973575.990) - TH

Frequency: 99.99Hz - 9.999MHz Accuracy: +(0.1% rdg + 2 dgt)

Duty Cycle: 1~99% Accuracy: + (0.1% rdg+ 2 dgt)

Temperature: -20ºC - 1000ºC / 4ºF - 1832ºF Accuracy: ± (2.5% rdg + 5 dgt)
