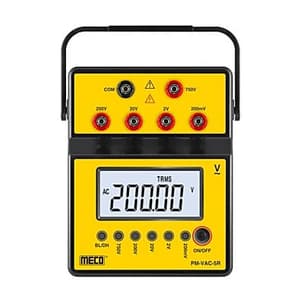

Digital Multi-Range Portable Meters are ideal for continuous AC TRMS and DC measurements. These precision meters are of Class 0.5 and have a backlight display with annunciators for ease of reading. The meters can be used in a horizontal, vertical, or inclined position and there are no parallax errors. These are housed in a strong, compact, and rugged casing with a tilt handle for ease of carrying.

These are designed using advanced microcontrollers and SMT technology and there are no moving parts that could cause loss of accuracy or errors: There are 4 models, one each for A AC, A DC, VAC, and VDC. Each model has 5 ranges thereby eliminating the need for having a separate instrument for each range. There is overload indication and overload protection against accidental misuse.

USB connectivity and user interface software are provided for ease of data handling and analysis. These Digital Multi-Range Portable Meters are most suitable for use in Laboratories, Engineering Schools/ Colleges Workshops, and Field Measurements Applications for continuous use and can serve as a master standard meter for verification or re-calibration of secondary standard meters.

Features & Benefits:

• Precision Class 0.5
• TRMS Measurement
• Microcontroller Design (No Moving Parts)
• Backlight Display with Annunciators (No Parallax Errors)
• USB Port (Standard)
• User Interface Software (Optional)
• Data Hold
• Auto Power Off
• Low Battery Indication
• Overload Indication
• Strong Rugged Casing with Tilt Stand With Calibration Certificate with traceability to NABL Lab will be supplied with every meter.
• Environment: 22 to 32°C, <70% RH (Calibration), 0 to 50°C, <70% RH (Operation), -10 to 60°C, <70% RH (Storage)



Model	Input	Ranges	Resoulation
PM-VAC-5R	AC TRMS	0 - 200mV	0.01
		0 - 2V	0.0001
		0 - 20V	0.001
		0 - 200V	0.01
		0 - 750V	0.1



Standard Accessories:

• 1.5V AA Battery x 4 pcs (installed)
• Test Leads (Red & Black for 2A continuous) x 1 pair
• Instruction Manual x 1 pcs
• Spare Fuse x 2 pcs (For Ammeter Only)
