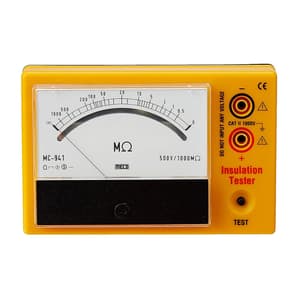

Suitable for both industrial and domestic use and manufactured by one of the top brands of Testing and Measuring Equipment, MECO MC900 is one of the best products available in the market. The insulation tester has an accuracy of 5 %, can measure resistance up to 100 ohms, and can operate under 50-degrees Celsius. MECO Analog Insulation Tester comes with an alligator test leads, polycarbonate cover, and 1.5V batteries. In addition to that, this Electrical Power Testing tool can test voltage up to 500V and has a 3.5KV at 50 Hz for a minute dielectric strength.

Features:

• Accuracy- 5%
• (MC-900BA) Series battery
• Scale length -80 mm
• Resin yellow case with a polycarbonate cover

What’s Included:

• ABS Resin Yellow Case
• Pair of Crocodile / Alligator Test Leads
• 1.5V AA Batteries x 6 (Fitted - In)

Benefits:

• Suitable for both industrial and domestic use
• Can be used for communication cables
• It can operate within 50-degree Celsius
• Available in the market in different voltage and ohm ranges

Specifications:

Accuracy:	+/- 5 Percentage of Indicated Value at 27 Degree C +/-5 Degree C
Dielectric Strength:	3.5 KV At 50 Hz For 1 Min Between Internal Terminal And Case
Insulation Resistance:	More than 50 M Ohm at 500V Between Circuit and Case
Operating temperature:	0 Degree to 50 Degree C
Relative humidity:	80 Percentage Maximum
Resistance:	0 - 1000 M Ohms
Dimensions	144.5x95x72.5 mm (approx.)
Low Battery:	When Battery Voltage Drops Below Operating Voltage, Pointer Cannot Reach Zero After Shorting The Output Terminals
Standards:	IS 10656 - 1983, IEC 61010, Installation Catagory II, 1000V Phase Earth
Storage Temperature:	- 10 Degree C to 60 Degree C
Test Voltage DC:	500V

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
