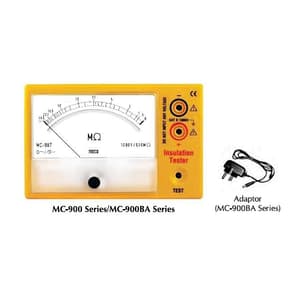

Manufactured by one of the best brands of Testing and Measuring Equipment, MECO MC903BA is one of the best electrical appliances available in the market. It has an accuracy of 5 %, has a case of resin yellow with polycarbonate cover, and a scale length of 80 mm. Certified from IS 10656-1983 this Insulation Tester is available in different voltage and ohm ranges.

MECO Analog Insulation Tester is suitable for measuring the resistance of electrical instruments, cables for industrial and domestic purposes. In addition to that, these Electrical Power Testing equipment have a battery adapter, alligator test leads, carrying case, and an (MC-900BA) Series battery.

Features:

• Accuracy- 5%
• (MC-900BA) Series battery
• Scale length -80 mm
• Resin yellow case with a polycarbonate cover

What’s Included:

• ABS Resin Yellow Case
• Pair of Crocodile / Alligator Test Leads
• 1.5V AA Batteries x 6 (Fitted - In)
• Battery adapter

Benefits:

• Suitable for both industrial and domestic use
• Can be used for cables
• It can operate within 50-degree Celsius
• Easy to carry

Specifications:

Accuracy:	+/- 5 Percentage of Indicated Value at 27 Degree C +/-5 Degree C
Dielectric Strength:	3.5 KV At 50 Hz For 1 Min Between Internal Terminal And Case
Insulation Resistance:	More than 50 M Ohm at 500V Between Circuit and Case
Operating temperature:	0 Degree to 50 Degree C
Power:	9V (6 x 1.5V AA) Battery
Relative humidity:	80 Percentage Maximum
Resistance:	0 - 100 M Ohms
Dimensions	144.5x95x72.5 mm (approx.)
Low Battery:	When Battery Voltage Drops Below Operating Voltage, Pointer Cannot Reach Zero After Shorting The Output Terminals
Standards:	IS 10656 - 1983, IEC 61010, Installation Catagory II, 1000V Phase Earth
Storage Temperature:	- 10 Degree C to 60 Degree C
Test Voltage DC:	500V
