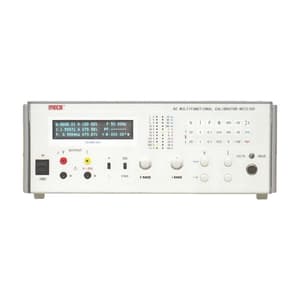

MODEL 90P AC Multifunctional Calibrator can output standard AC Voltage and AC Current. It measures AC Voltage, AC Current, Power, Phase Angle, Power Factor and Frequency (40Hz ~ 70Hz ). The wide output range of Current and Voltage; High reliability and low wave distortion.

Applications:

• Calibration of AC Volt, Amp, Watt, Var, Frequency, Power factor, Phase angle and Energy Meters
• Calibration of Voltage, Current, Active & Reactive Power, Frequency, Power factor, Phase angle and Energy Transducers.

Accessories:

• Output Leads x 1 Pair
• Output Leads (50A/100A) x 1 Pair
• Operation Manual x 1 Pc
• Key Adjuster x 1 Pc
• Power Cord x 1 Pc
• Fuse (4A) x 2 Pcs
• Data Cable for PC Connectivity x 1 Pc

Optional Accessories:

• Standard Current Coil -

Turns Ratio	100 / 1		100 / 1
Input Max.	5A		10A
Current	500A		1000A
Clamp Jaw	> 20mm		> 28mm
DC Impedance	0.7Ω		0.9Ω
DC Burden	5A / 3.5V		10A / 2.5V
AC Burden	5A / 6V		10A / 5V
Frequencies	DC to 60Hz		DC to 60Hz
Accuracy	± 0.3% rdg		± 0.3% rdg

Technical Specification:

Voltage Control	Output Voltage Range: 1V, 2V, 5V, 10V, 20V, 50V, 75V, 150V, 300V, 600V, 1000V Min. Resolution: 0.02mV Basic Error: ACI: ± (0.03 %RD + 0.02 %FS)
Current Control	Output Current Range: 10mA, 20mA, 50mA, 200mA, 1A, 2A, 5A, 10A, 25A, 50A, 100A Min. Resolution: 0.2µA Basic Error: ACI: ± (0.03 %RD + 0.02 %FS
Frequency Control	Frequency Range: 40Hz to 70Hz Frequency Error: ± 0.02 Hz
Phase Control	Phase Angle Range: 0 to 359.99º Phase Error: ± 0.05º
