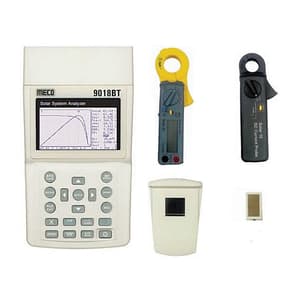

Solar Module Analyzer (Photovoltaic I-V Curve Tester) With DC Current Camp, AC Power Clamp, Thermo & Irradiance Meter with Bluetooth Connectivity: Max Power 1000V, 12A (12000W capability), Measures Single Panel and String OPC STC Data with Vnow, Voc, Isc, Pmax, VmaxP, ImaxP, Efficency and Fill Factor, Real Time Irradiation and Solar Panel Temperature, Inverter Efficency (DC to AC) With PC (USB) Connectivity, Memory Record and Backlight Display

Features:

• I-V curve test for solar system
• Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A (12000W capability)
• The analyzer and the Remote Solar Detector is connected by Bluetooth wireless communication (Bluetooth 2.1 + EDR Class 1).
• The Remote Solar Detector is moisture-proof.
• Intelligent test logic with no personnel attendance required in the field.
• Solar system analyzer waits and tests the system until appropriate sunlight irradiance is detected.
• Max. voltage (Vpm) at Pmax, Max. current (Ipm) at Pmax
• Voltage at open circuit (Voc), Current at short circuit (Isc)
• Efficiency (%) calculation of solar system
• Temperature measurement of solar panels
• Irradiance measurement of sun light
• Series resistance (Rs) calculation of solar panels
• With data logging/open function, the I-V curves of solar system can be analysed / recorded for a period of time (e.g. 60 min.)
• Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard
• Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for verification of solar panel performance (OK, or NO OK)
• Users can set up the parameters of solar panels
• Users can set up the series number of solar panels.
• Parameters of many solar panels can be measured in one measurement.
• The irradiances and temperatures of solar panels can be continuously measured, monitored and recorded.
• Continuously measure/monitor/record the DC power output of solar system and the AC power output of inverter (1 phase or balanced 3 phases)
• Calculate the efficiency of DC to AC power conversion and the efficiency of the max. output power

Application:

• Quality Control at Production Line
• Warehouse or Site of Installation
• Identify Requirements of Solar Power System
• Maintenance of Solar Panels
• Verify the Best Installation Angles of Solar Panels
• Research and Development

User Interface & Data Acquisition Software:

• Information, Parameter, Overall
• Tool bar: including File, Tools, Option, Help

Accessory:

• Solar Irradiance Meter (Remote Solar Detector) x 1
• Thermometer x 1
• USB power cord x 1
• User manual x 1
• AC adaptor x 1
• Optical USB cable x 1
• Rechargeable lithium battery x 1
• Software CD x 1
• Software manual x 1
• Carrying bag x 1
• Thermal conductive gel x 1
• Testing clips (1 black & 1 red) x 1
• 4-wire to 2-wire connecting cable x 1
• 4-wire testing cable x 1
• Solar 15: DC current probe x 1
• Solar 21: AC power clamp x 1
• Testing clips (1 black & 1 red) x 1

Specifications:

Battery Type Rechargeable Lithium Battery, 3400mAh

Battery Life 400 times of linear scan (1000V ~ 1V, 0.1A ~ 12A) 8 hours for standby mode.

Data Logging Memory Size 512K Bytes or 3980 Mod files or 320 REC files or 3980 PWR files or 3980 IRR files

AC Adaptor AC 100 ~ 240V input, DC 15V / 1~3A output

Operation Environment 5ºC ~ 50ºC, <85% RH

Temperature Coefficient 0.1% of full scale / ºC(<18ºC or > 28ºC)

Store Temp. & Relative Humidity -20ºC ~ 60ºC, ≤ 75% RH

Dimension 257(L) x 155(W) x 57(H) mm

Electrical Specifications:

(23 C ± 5 C, 0 0 Irradiance >800W/m ,2 Four-Wire Measurement, Maximum Power Limit is 12000W)

DC Voltage Measurement

Range	Resolution	Accuracy
1 ~ 1000 V	0.01 V / 0.1 V / 1 V	± 1 % ± (1 % of Voc ± 0.1 V)

DC Current Measurement

Range	Resolution	Accuracy
0.1 ~ 12 A	1 mA / 10mA	± 1 % ± (1 % of Isc ± 9 mA)

Irradiance Measurement

Range	Resolution	Accuracy
0 ~ 2000 W/m 2	1 W/m 2	± 3 % ± 20 dgts

Temperature Measurement

Range	Resolution	Accuracy
- 22 ~ 85ºC	0.1ºC	± 1 % ± 1ºC

AC Voltage Measurement

Range	Resolution	Accuracy (50/60Hz)	Accuracy (45-1KHz)
5 V ~ 250 V	0.1 V	± 0.5 % ± 5 dgts	± 1.5 % ± 5 dgts
250 V ~ 600 V	0.1 V	± 0.5 % ± 5 dgts	± 1.5 % ± 5 dgts

Harmonics of AC Voltage in Percentage (1 – 99th order)

Range	Resolution	Accuracy
1 – 10th	0.1%	± 1 % of reading ± 1 %
11 – 20th	0.1%	± 5 % of reading ± 1 %
21 – 30th	0.1%	± 15 % of reading ± 1 %
31 – 40th	0.1%	± 35 % of reading ± 1 %

Harmonics of AC Current in Percentage (1 – 99th order)

Range	Resolution	Accuracy
1 – 10th	0.1%	± 1 % of reading ± 1 %
11 – 20th	0.1%	± 5 % of reading ± 1 %
21 – 30th	0.1%	± 15 % of reading ± 1 %
31 – 40th	0.1%	± 35 % of reading ± 1 %

Phase Angle (50 or 60Hz)

Range	Resolution	Accuracy
- 180 to 180	0.1	± 2
0 to 360	0.1	± 2

Frequency (Hz)

Range	Resolution	Accuracy (50/60Hz)	Allowed Input
mA( 45-65Hz )	0.1	± 2	20mA to 1.2A
A( 45-65Hz )	0.1	± 2	1A to 100A

Total Harmonic Distortion (THD-F)

Range	Resolution	Accuracy
0.0 – 10.0 %	0.1%	± 2%
10.0 – 40 %	0.1%	± 5% of reading ± 5%
40 – 100 %	0.1%	± 10% of reading ± 10%
100 – 999.9 %	0.1%	± 20% of reading

Power Factor

Range	Resolution	Accuracy
0.000 – 1.000	0.001	± 0.04

Peak Value of AC Periodic Voltage

Range	Resolution	Accuracy (50/60Hz)
50Hz	39us	± 5% ± 30 dgts
60Hz	33us	± 5% ± 30 dgts

Crest Factor (C.F) of AC Voltage

Range	Resolution	Accuracy
1.00 – 99.99	0.01	± 5% ± 30 dgts
