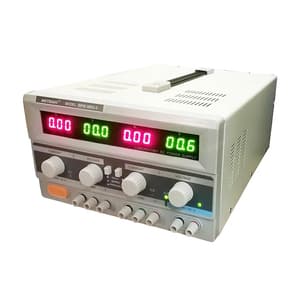

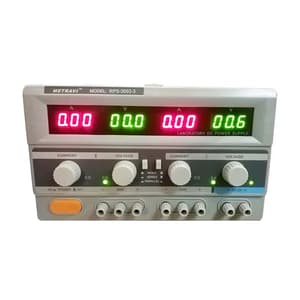

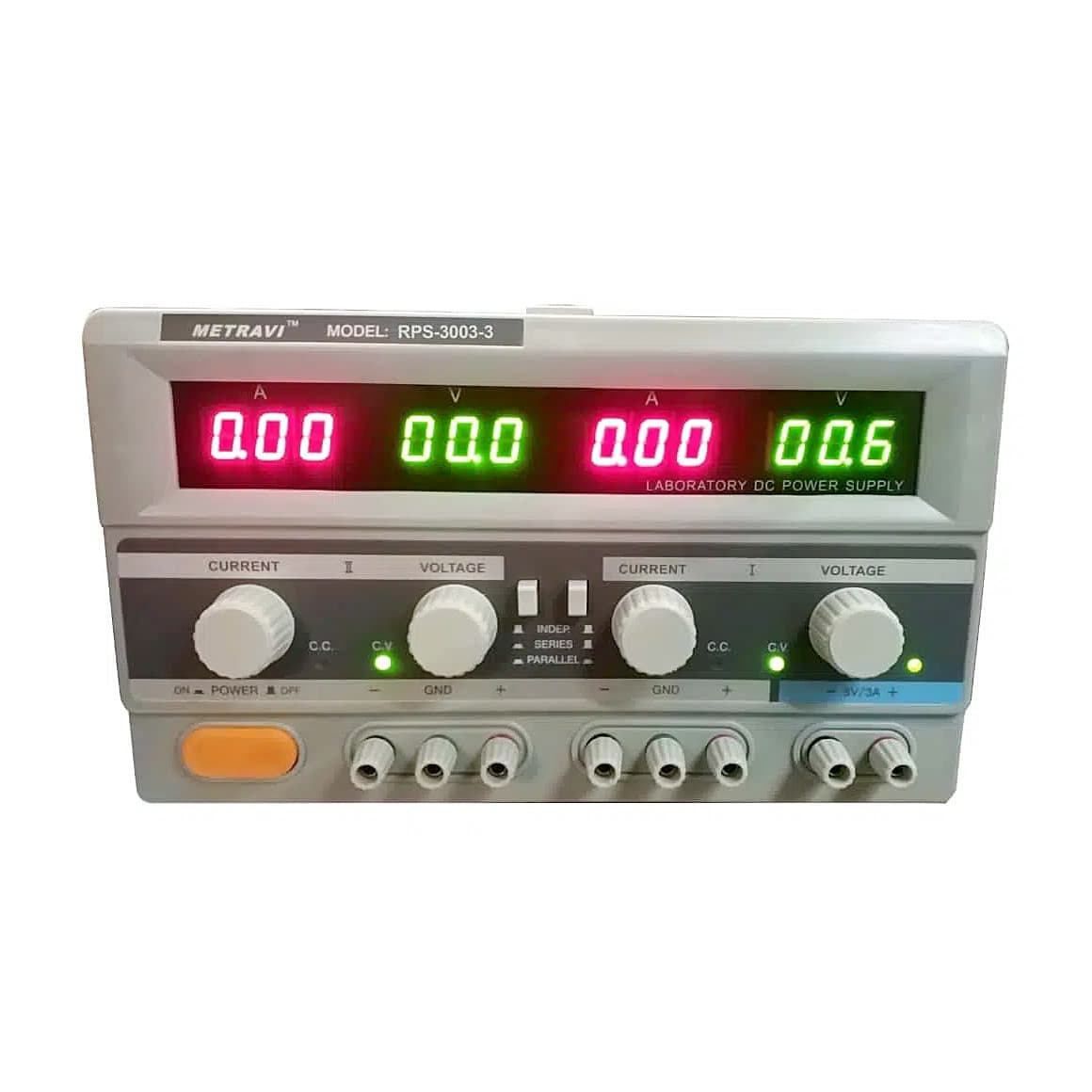

DC Regulated Power Supply with Triple Output and Backlit LCD Display, Dual 0 – 30V / 0 – 3A DC and Fixed 5V/3A. Three way have high accuracy output of which two way are adjustable and one way is fixed. The two adjustable outputs can be selected for constant voltage C V or constant current C C ,designed in high stability and performance circuit In constant voltage operation mode the output voltage can be arbitrarily adjusted from 0V on in the nominal range In constant current operation mode the output current can be adjusted from 0A on in the nominal range.

The two outputs can be connected in parallel or in series while the master adjust controls the voltage and current setting The fixed output voltage is 5V. This output features good stability and low ripple along with overload e g short circuit protection. The unit features small size and excellent performance combined with an elegant design being ideal for research university industry and appliance maintenance laboratories. Widely used in production line test, electrical maintenance, ageing products, battery charging, laboratories, scientific research and teaching and many other areas.

Features:

• Dual Channel Variable output
• Single Channel Fixed output
• Dual Red LED Display
• Voltage and Current displayed together
• Multi-turn variable device to provide high precision voltage setting.
• Continuous working under full load condition
• Constant Current and Constant Voltage Protection
• Short Circuit protection

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
