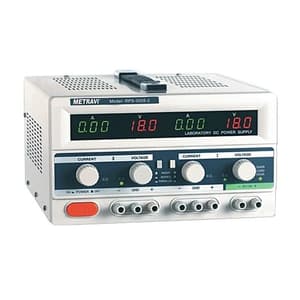

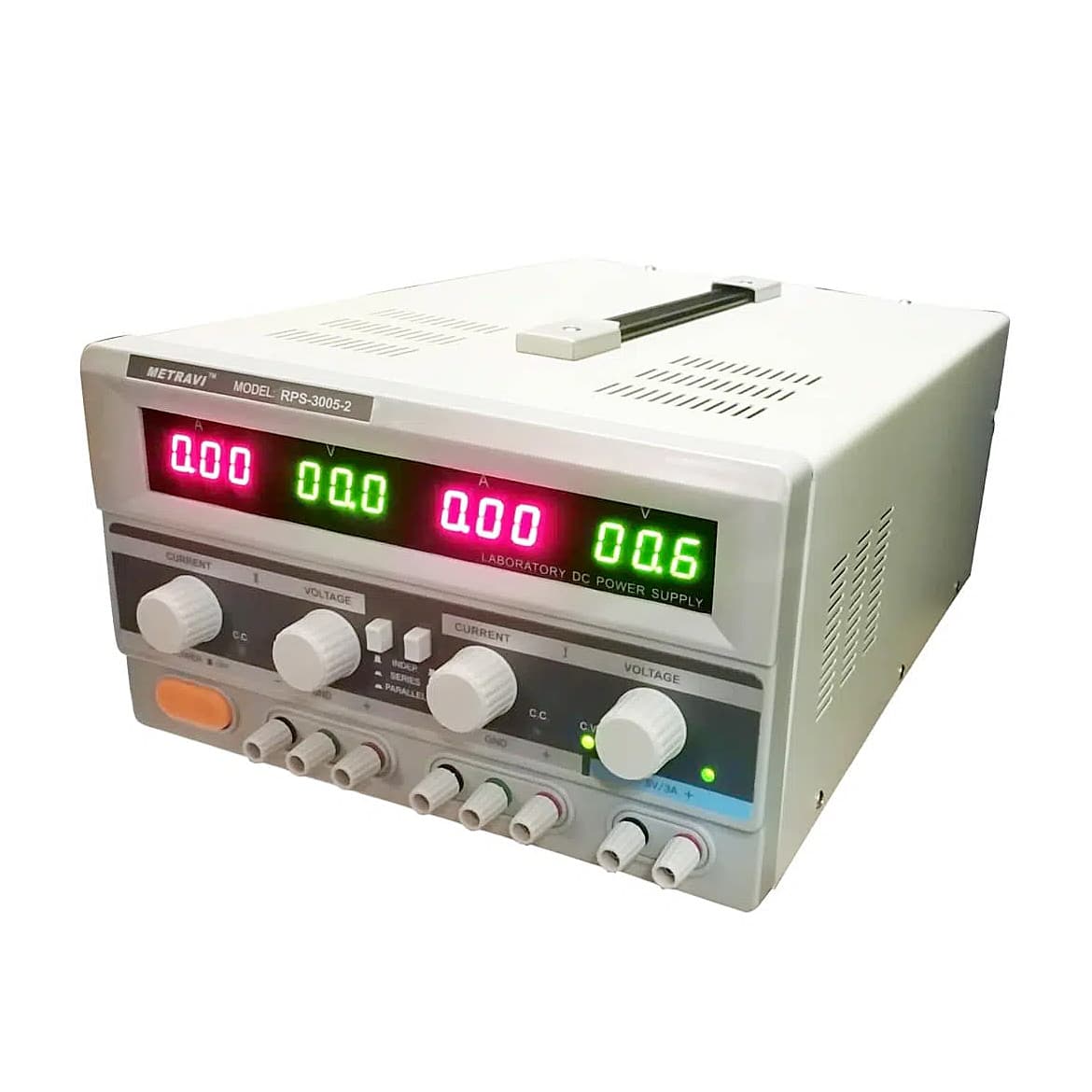

Metravi 0 - 30V / 0 - 5A DC Regulated Power Supply (Dual Output), RPS-3005-2
Roll over image to zoom zoom_in
- Product Type: Power Supply
- Output Voltage: 0 - 30V
- Output Current: 0 - 5A
- No of Channel: Dual
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹22591.1 (Incl. of all taxes)
₹19145+ ₹3446.1 GST (18%)
MRP ₹28154
SAVE 32%
5 Business Days
1 Set
85042100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
DC Regulated Power Supply with Dual Output and Backlit LCD Display of Variable 0 – 30V / 0 – 5A DC. Widely used in production line test, electrical maintenance, ageing products, battery charging, laboratories, scientific research and teaching and many other areas.
The Metravi RPS-3005-2 features 2 and 3 variable outputs, respectively, and one fixed output. The variable outputs are capable of delivering output from 0-30V and 0-5A individually or 0-60V and 0-5A in series and 0-30V and 0-10A in parallel mode.
Features:
- Dual Channel output
- Dual Red LED Display
- Voltage and Current displayed together
- Multi-turn variable device to provide high precision voltage setting.
- Continuous working under full load condition
- Constant Current and Constant Voltage Protection
- Short Circuit protection
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.PO.00057 |
|---|---|
| Product Type | Power Supply |
| Model No | RPS3005-2 |
| Type of Product | DC Power Supply |
| Output Voltage | 0 - 30V |
| Output Current | 0 - 5A |
| Display | Backlit LCD |
| Colour | Cream |
| No of Channel | Dual |
| Input Voltage | 220V / 110V |
| Accuracy | ±10% |
| Line Regulation Rate | CC <0.05% + 5mA, CV <0.02% + 2mV |
| Load Regulation Rate | CC <0.05% + 5mA, CV <0.02% + 2mV |
| Ripple and Noise | CC <2mA, CV <0.5mV |
| Button Lock Function | Button Lock |
| Cooling Fan | Built-in thermo-sensor-activated cooling fan |
| Keyboard Lock Function | Keyboard lock function to prevent operator errors |
| Operational Modes | Constant Current Mode, Constant Voltage Mode |
| LED Indication | Indicates the presence of current, Indicates the presence of voltage |
