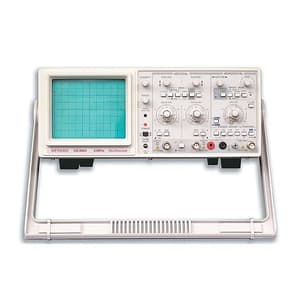

Metravi 20MHz Dual Channel Dual Trace Cathode Ray Oscilloscope, OS-5020

Shop all Metravi

SKU: ME.EL.OS.00030

Model: OS5020

Roll over image to zoom zoom_in
  1. Metravi 20MHz Dual Channel Dual Trace Cathode Ray Oscilloscope, OS-5020

  • Product Type: Oscilloscopes
  • Bandwidth: 20 MHz
  • No. of Channels: Dual Channel
  • Rising time: < 18nS
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

24805.96 (Incl. of all taxes)

21022+ ₹3783.96 GST (18%)

MRP ₹30915

SAVE 32%



5 Business Days

1 Pcs

90302000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

20MHz, Dual Trace Dual Channel Oscilloscope with 1:1 and 10:1 probes. The OS-5020 is a portable-type, advanced-class oscilloscope with a bandwidth of DC to 20 MHz designed with the emphasis on operability and portability and has following features.

  • Wide bandwidth: The instrument has a bandwidth from DC to 20MHz.
  • High sensitivity: Sensitivity is 1 mV/div
  • Large 6" screen: Employment of a large square CRT makes waveforms easier to observe.
  • Internal graticule: Employment of an internal graticule CRT permits waveforms observation to be made without parallax error.
  • ALT TRIG: Even an observation of two waveforms of different frequencies, the waveform of the each cannel is stably triggered.
  • TV synchronization: Employment of a new TV sync separator circuit allows the instrument to observe TV signals stably.
  • Autofocusing: The instrument has a bandwidth from DC to 20MHz. : Focusing shift is automatically corrected.


Features:

  • Full bandwidth sweeping circuit is used in the sweeping system
  • The flexible and convenient triggering mode has the functions for selecting signals from one channel or triggered by Ext signals
  • The instrument has the functions of TV-H / TV-V synchronization and trigger-lock to observe all kinds of signals stably
  • From the terminal for trigger input, CH1 and CH2 signals can be output along with the triggering channel to connect the Ext frequency counter
  • Y deflection operation: Y1, Y2, ALT, CHOP, ADD, mode X-Y
  • Vertical Deflection: 5mV/Div to 20V/Div in factor 1-2-5 sequence in 12 steps
  • Maximum Input Voltage: 400V (DC +ACp-p)
  • Triggering Source: Y1, Y2, ALT, POWER, EXT
  • Trigger Coupling: AC/DC (EXT), NORM/TV-H, TV-V
  • Horizontal Sweep Mode: AUTO, TRIG, LOCK, SINGLE
  • Sweep time factor: 0.1uS/div to 0.2s/div in 1-2-5 sequence in 20 steps
  • X-Y Mode input: X-Axis YI and Y-Axis Y2
  • Z Axis minimum input level: TTL Level
  • Calibration Signal: Square wave of 0.5V at 1kHz
  • CTR Display size: 8cm x 10cm

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.OS.00030
Product TypeOscilloscopes
Model NoOS5020
Bandwidth 20 MHz
No. of Channels Dual Channel
Rising time < 18nS
Magnification x10
Maximum Input Voltage 400V (DC +ACp-p)
