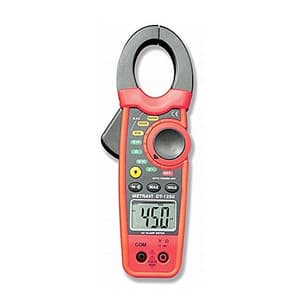

Metravi 3-1/2 Digit / 1000A Digital AC Clamp Meter, DT-1250

Shop all Metravi

SKU: ME.EL.CL.00085

Model: DT1250

Roll over image to zoom zoom_in
  1. Metravi 3-1/2 Digit / 1000A Digital AC Clamp Meter, DT-1250
  2. Metravi 3-1/2 Digit / 1000A Digital AC Clamp Meter, DT-1250
  3. Metravi 3-1/2 Digit / 1000A Digital AC Clamp Meter, DT-1250

  • Weight: 0.3 Kg
  • Product Type: Clamp Meters
  • AC Current Range: 0-20A/200A/1000A
  • AC Voltage Range: 0–200mV/2V/20V/200V/600V
  • DC Voltage Range: 0–200mV/2V/20V/200V/600V
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

3358.28 (Incl. of all taxes)

2846+ ₹512.28 GST (18%)

MRP ₹4185

SAVE 32%



5 Business Days

1 Pcs

90308990

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The DT-1250 has 3-1/2 Digits, Backlit LCD, Data Hold, Max Hold, 30mm Jaw Size, AC/DC Voltage, AC Current up to 1000A, Resistance, Diode and Continuity Test. 500V DC/AC Protection in all ranges.


Features:

  • Large 2000 count LCD display with bright white LED backlight.
  • Wide measuring range from 0.01A AC up to 1000A AC.
  • Measures AC and DC Voltage up to 600 Volts.
  • Measures resistance from 0.012 up to 20MS.
  • Designed to the international safety standard IEC61010 CAT III 600V/CAT II 1000V, Pollution degree 2.
  • Max Hold records the highest reading in the current and voltage ranges.
  • Auto Power Off after approximately 15 minutes to conserve battery life.
  • Continuity Buzzer < 12052
  • Diode Test Current 0.3mA typical
  • Low Battery Indication, "BAT" is displayed.
  • 30mm Maximum conductor size.
  • Data Hold Switch used to freeze reading on display.
  • Overrange Indication : "OL" is displayed.
  • Maximum Rate : 2 per second, nominal
  • Input Impedance : 7.8 MS2 (VDC and VAC)
  • AC Current bandwidth : 50/60Hz (AAC)
  • AC Voltage bandwidth : 50/60Hz (VAC)
  • Operating Temperature : 14 to 122°F (-10 to 50°C)
  • Storage Temperature : -22 to 140°F (-30 to 60°C)
  • Relative Humidity : Up to 85%
  • Altitude Operating : 3000m
  • Altitude Storage : 10,000m
  • Over voltage : Category III 600V

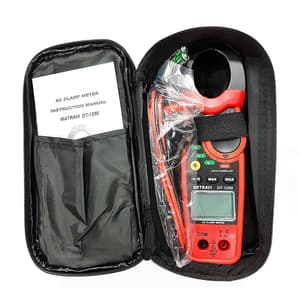

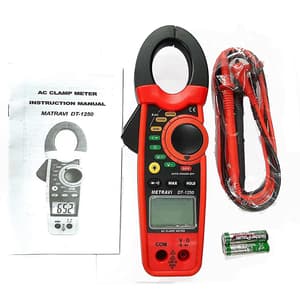

What's Included In This Package:

  • 1x User manual
  • 1x Test leads
  • 2x Batteries
  • 1x Soft carrying case
  • 1x Infra-red non contact temperature adaptor to measure temperature from -30°C to 550°C with fixed emissivity of 0.95 and distance to sighting ratio of 8:1. Model TS-03 (Optional)


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.CL.00085
Product TypeClamp Meters
Model NoDT1250
AC Current Range 0-20A/200A/1000A
AC Voltage Range 0–200mV/2V/20V/200V/600V
DC Voltage Range 0–200mV/2V/20V/200V/600V
Resistance Range 0–200O/2kO/20kO/200kO/2MO/20MO
Colour Black-Red
Display Backlit LCD
Power Source Battery Operated
Battery Type Alkaline
Battery Size AAA
No of Batteries 2
Jaw Dia 30 mm
Resistance Accuracy ±1.0%
DC Voltage Accuracy ±0.8%
AC Voltage Accuracy ±1.5%
AC Current Accuracy ±2.5%
Certifications CAT-II 1000V, CAT-III 600V, IEC 61010
Length x Width x Height (mm) 229 x 80 x 49
