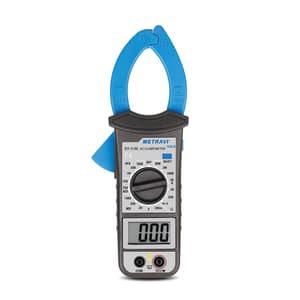

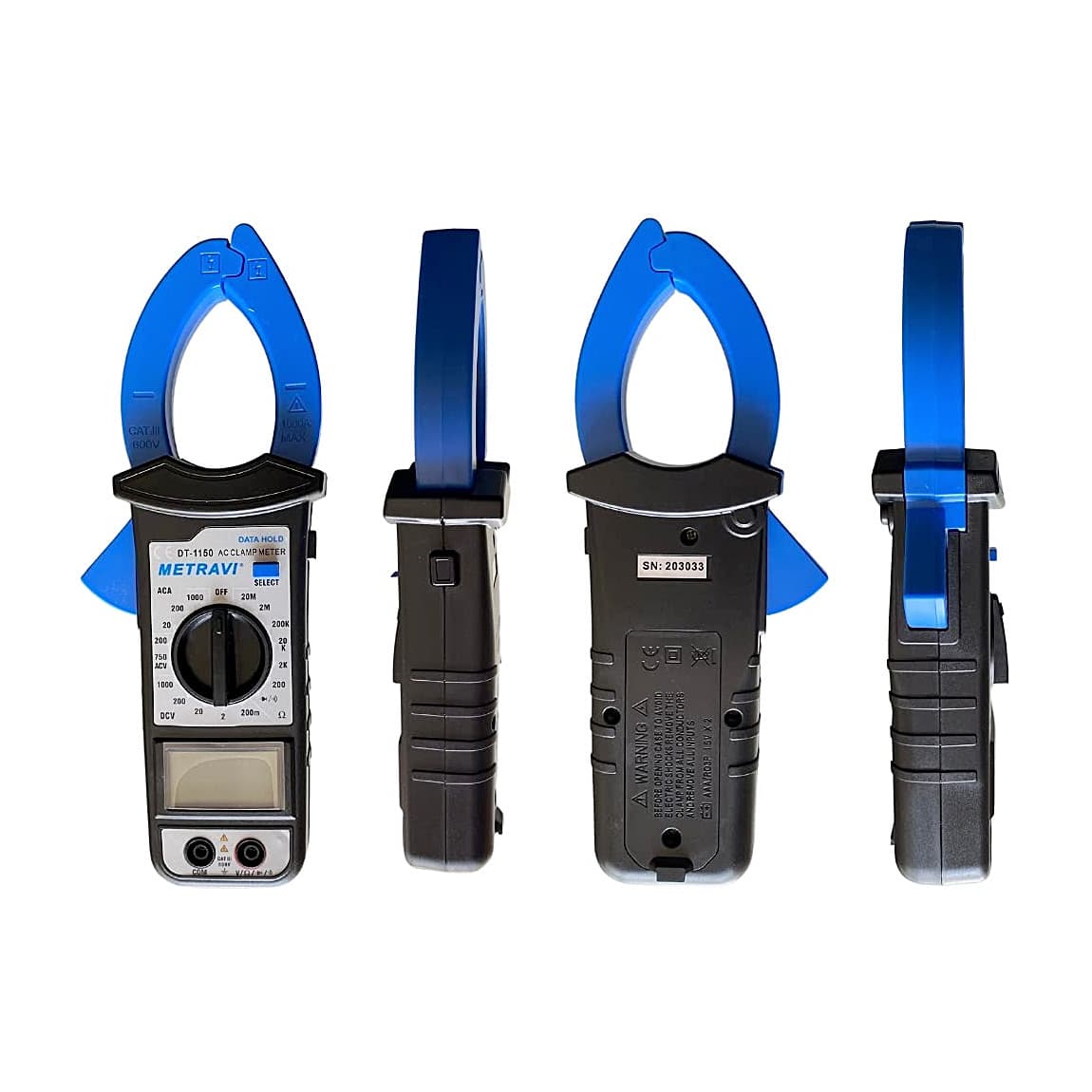

Metravi 3-1/2 Digit / 2000 Counts Digital AC Clamp Meter, DT-1150
- Weight: 0.35 Kg
- Product Type: Clamp Meters
- AC Current Range: 0-20A/200A/1000A
- AC Voltage Range: 0-200V/750V
- DC Voltage Range: 0-200mV/2V/20V/200V/1000V
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2193.62 (Incl. of all taxes)
₹1859+ ₹334.62 GST (18%)
MRP ₹2734
SAVE 32%
5 Business Days
1 Pcs
90303100
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
DT-1150 Digital clamp meter has a 3-1/2 digit 2000 Count LCD display and is powered by two AAA Batteries. The unit adopts full function overload protection circuit and can be used for the measurement of AC/DC voltage, AC current, DC current, Resistance, Diode and Continuity. It has a sturdy built and adopts a rotary switch that integrates Power on/off, Function selection and Range selection. It is handy and portable making it the ideal tool for electrical measurement.
Features:
- Display : 3 ½ Digit 2000 count LCD, with auto polarity conversion
- Over-Range Indication : "OL" will be shown on the LCD
- Low Battery Display : symbol appears
- Working Environment : 0~40°C, 45% ~ 70% RH Non Condensing (When temperature is less than 10°C)
- Storage Environment : -10°C~50°C, RH is less than 80%
- Warranty is one year against manufacturing defects
- Data Hold
- Overload Indication
- Low Battery Indication
- Diode & Continuity test

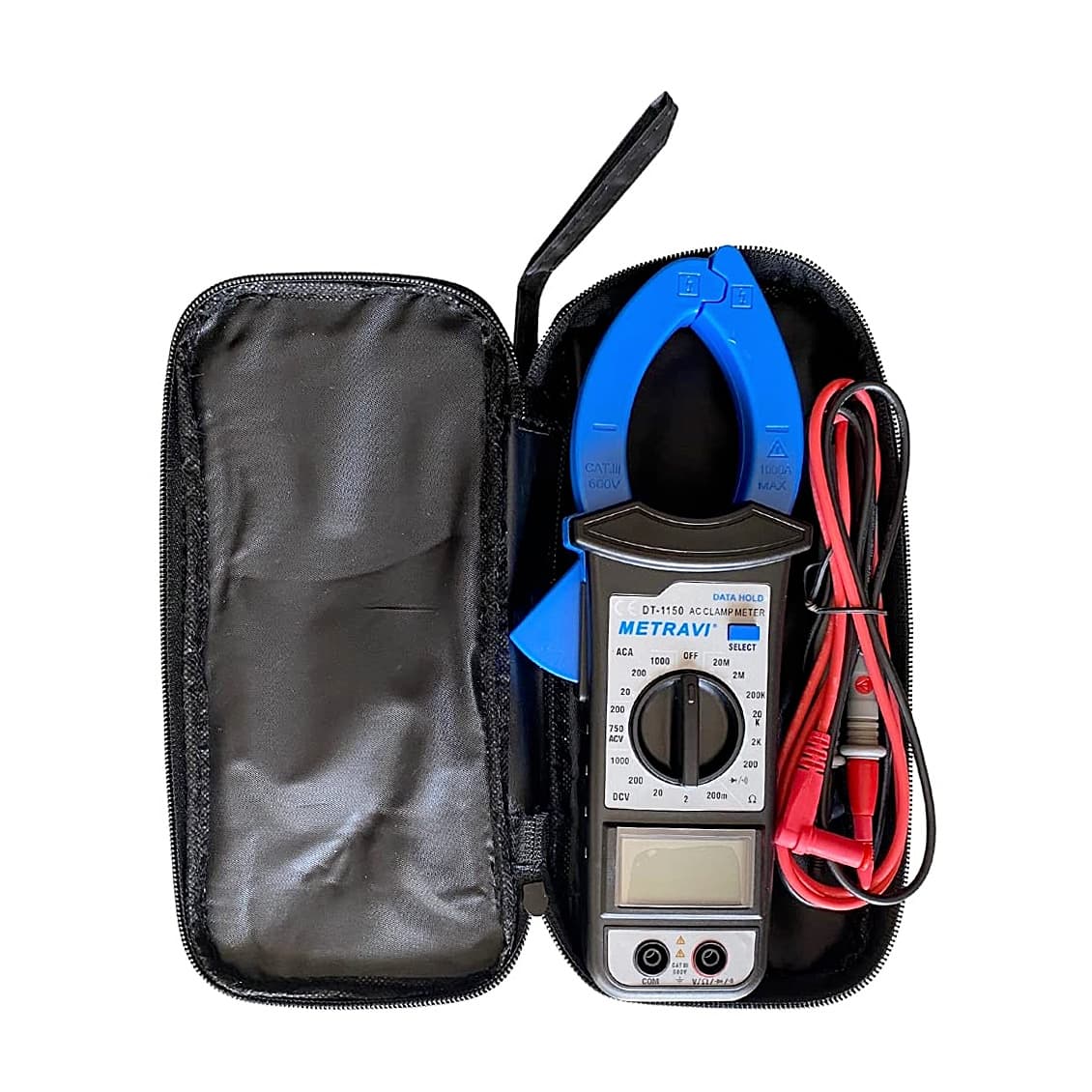

What's Included In This Package:
- 1x User Manual
- 1x Test Leads
- 2x Batteries
- 1x Soft carry case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
SKU | ME.EL.CL.00082 |
---|---|
Product Type | Clamp Meters |
Model No | DT1150 |
AC Current Range | 0-20A/200A/1000A |
AC Voltage Range | 0-200V/750V |
DC Voltage Range | 0-200mV/2V/20V/200V/1000V |
Resistance Range | 0 to 20MO |
Colour | Blue-Black |
Display | LCD |
Power Source | Battery Operated |
Battery Type | Alkaline |
Battery Size | AAA |
No of Batteries | 2 |
Jaw Dia | 40 mm |
Resistance Accuracy | ±1.5% |
DC Voltage Accuracy | ±0.8% |
AC Voltage Accuracy | ±1.5% |
AC Current Accuracy | ±2.0% |
DC Voltage Resolution | 0.1mV to 1V |
AC Voltage Resolution | 0.1V to 1V |
AC Current Resolution | 0.01A to 1A |
Resistance Resolution | 0.1O to 10kO |
Certifications | CAT-III 600V, CE, IEC-61010-1, IEC-61010-2-032, Pollution Grade 2 |
Length x Width x Height (mm) | 250 x 97 x 48 |
