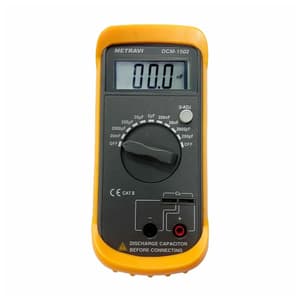

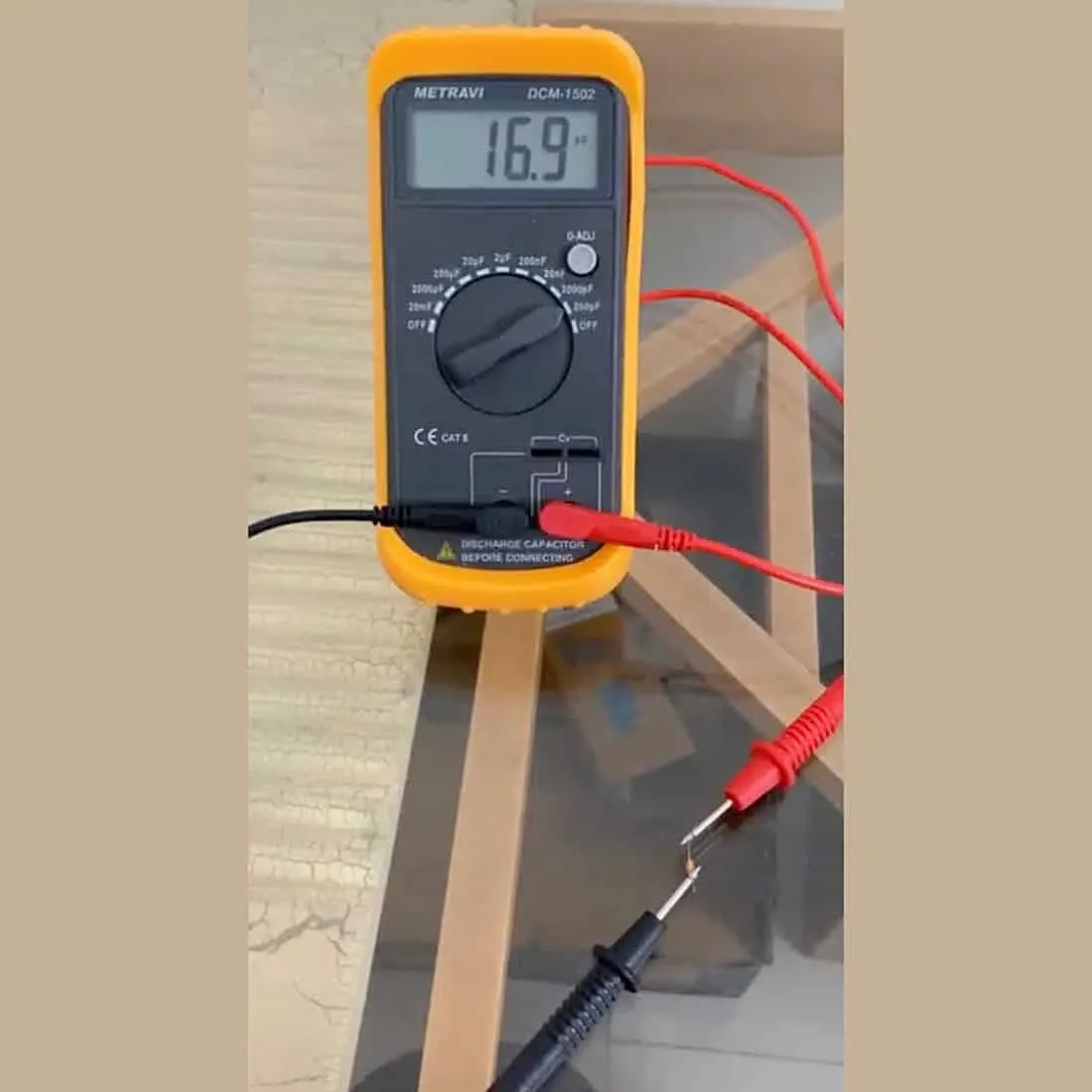

Metravi 3-1/2 Digits / 20mF Digital Capacitance Tester, DCM-1502

Shop all Metravi

SKU: ME.EL.CA.00006

Model: DCM1502

Roll over image to zoom zoom_in
  1. Metravi 3-1/2 Digits / 20mF Digital Capacitance Tester, DCM-1502
  2. Metravi 3-1/2 Digits / 20mF Digital Capacitance Tester, DCM-1502
  3. Metravi 3-1/2 Digits / 20mF Digital Capacitance Tester, DCM-1502

  • Product Type: Capacitance Meter
  • Colour: Yellow-Black
  • Sampling Time: 0 - 5 sec
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

3085.7 (Incl. of all taxes)

2615+ ₹470.7 GST (18%)

MRP ₹3846

SAVE 32%



5 Business Days

1 Pcs

90308990

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi DCM-1502 Capacitance Meter has 3-1/2 Digits, LCD, Zero Adjustment, up to 20mF Capacitance Measurement


Features:

  • Easy to read LCD Display 3-1/2 Digits 1999 Counts
  • High measuring Accuracy
  • Measurements possible even under strong magnetic field
  • LSI Circuit Provides high reliability and durability
  • Light Weight and compact construction
  • Range: 0 – 200p / 2n / 20n / 200n / 2u / 20u / 200u / 2000u / 20000uF
  • Accuracy: ± 0.5%
  • Input overload protection is provided.
  • LCD display for low power consumption and clear readout even in bright ambient light conditions.
  • In-line pushbuttons allow one hand operation.
  • Light-weight and compact construction for easy operation.
  • Low battery indication.
  • Over range : Display shows "1".
  • Operating Temp : 0°C to 40°C
  • Operating Humidity : 80% max. R.H.

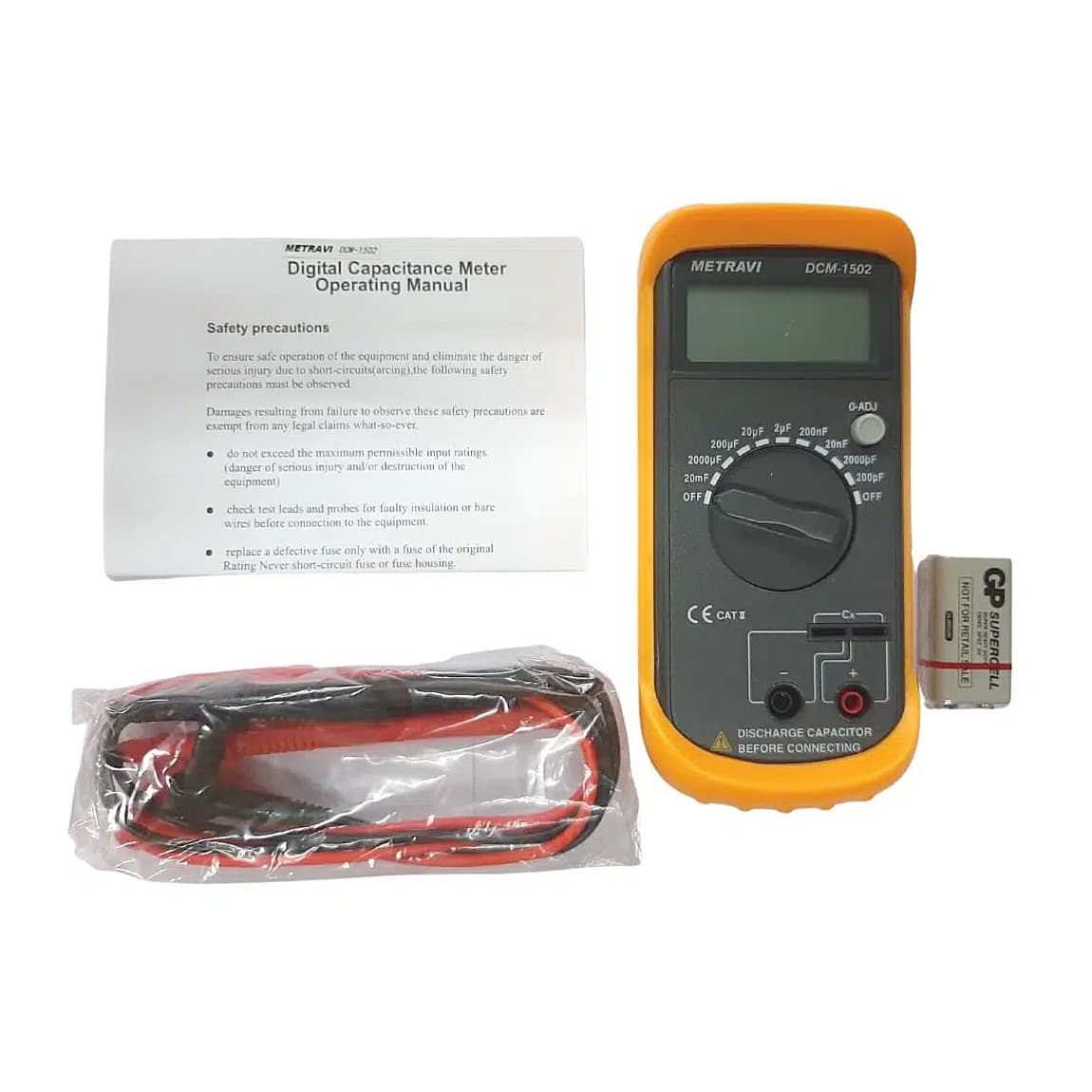

What’s Included In This:

  • 1x Test alligator clips (red & black)
  • 1x Instruction manual
  • 1x Battery

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.CA.00006
Product TypeCapacitance Meter
Model NoDCM1502
Colour Yellow-Black
Display LCD
Capacitance Range 0-200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF/20000uF
Capacitance Resolution 0.1pF - 10uF
Capacitance Accuracy ±0.5%
Sampling Time 0 - 5 sec
Power Source Battery Operated
Battery Type Alkaline
Battery Size 9V
No of Batteries 1
