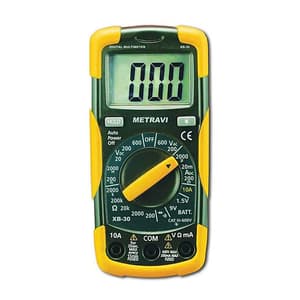

Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30

Shop all Metravi

SKU: ME.EL.MU.00060

Model: XB30

Roll over image to zoom zoom_in

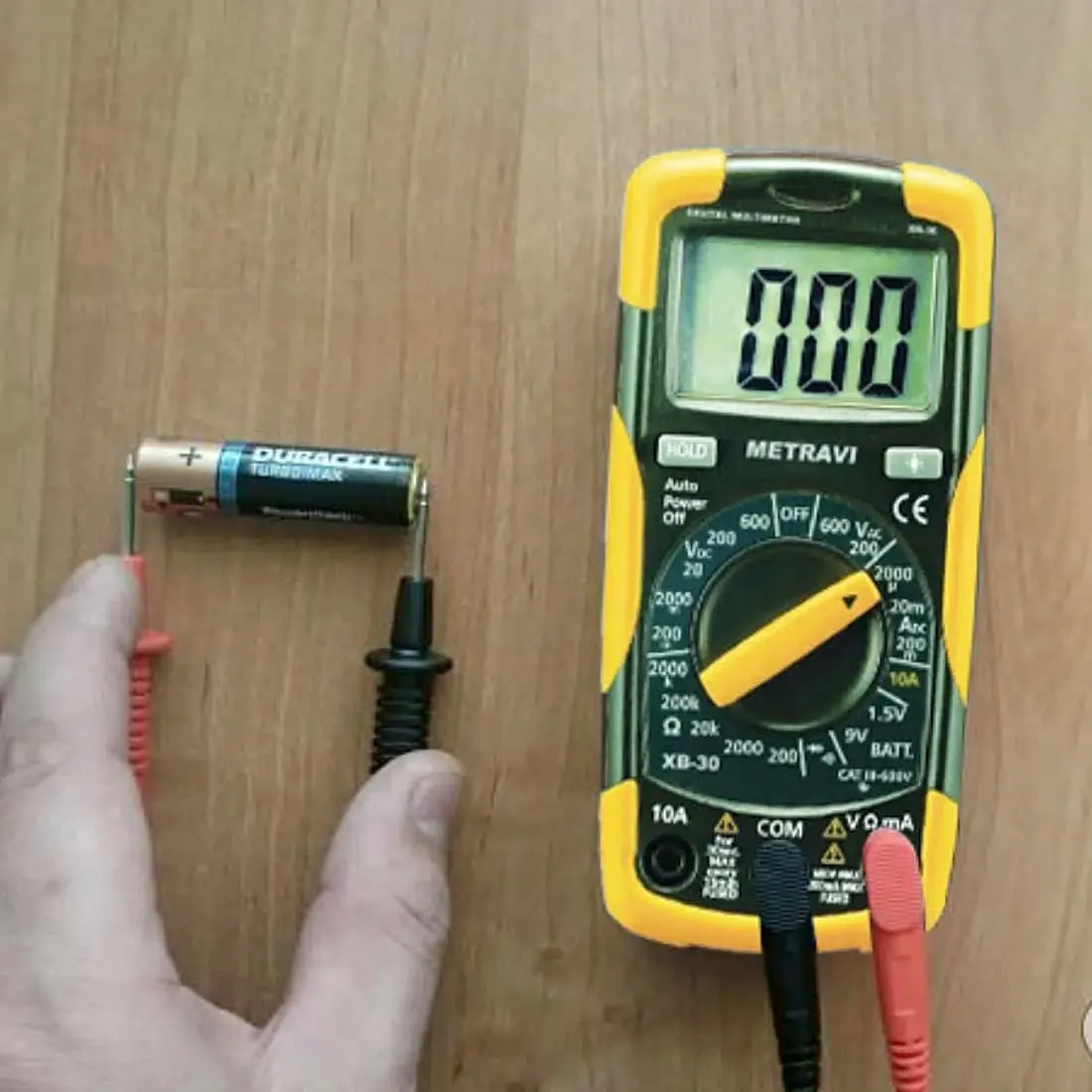

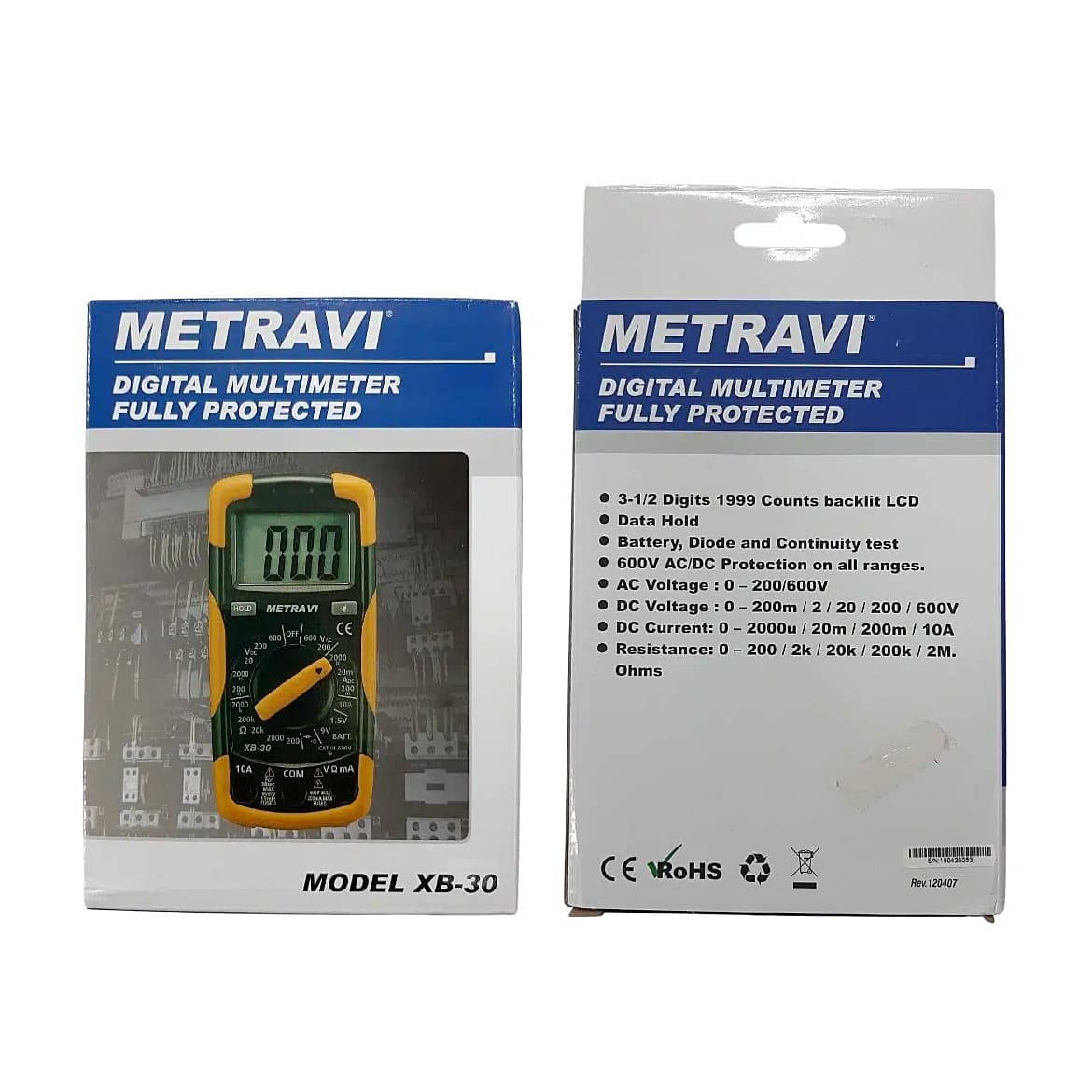

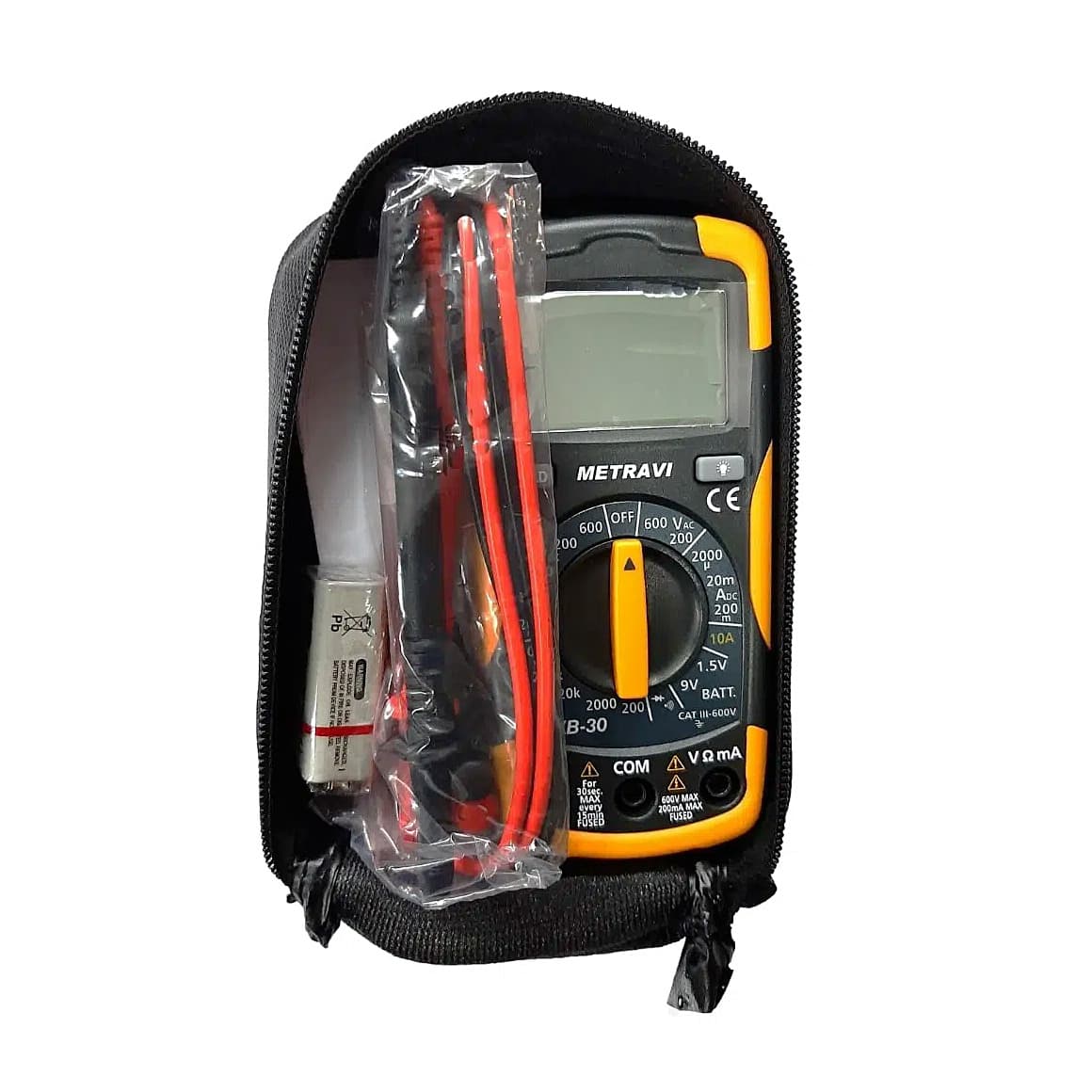

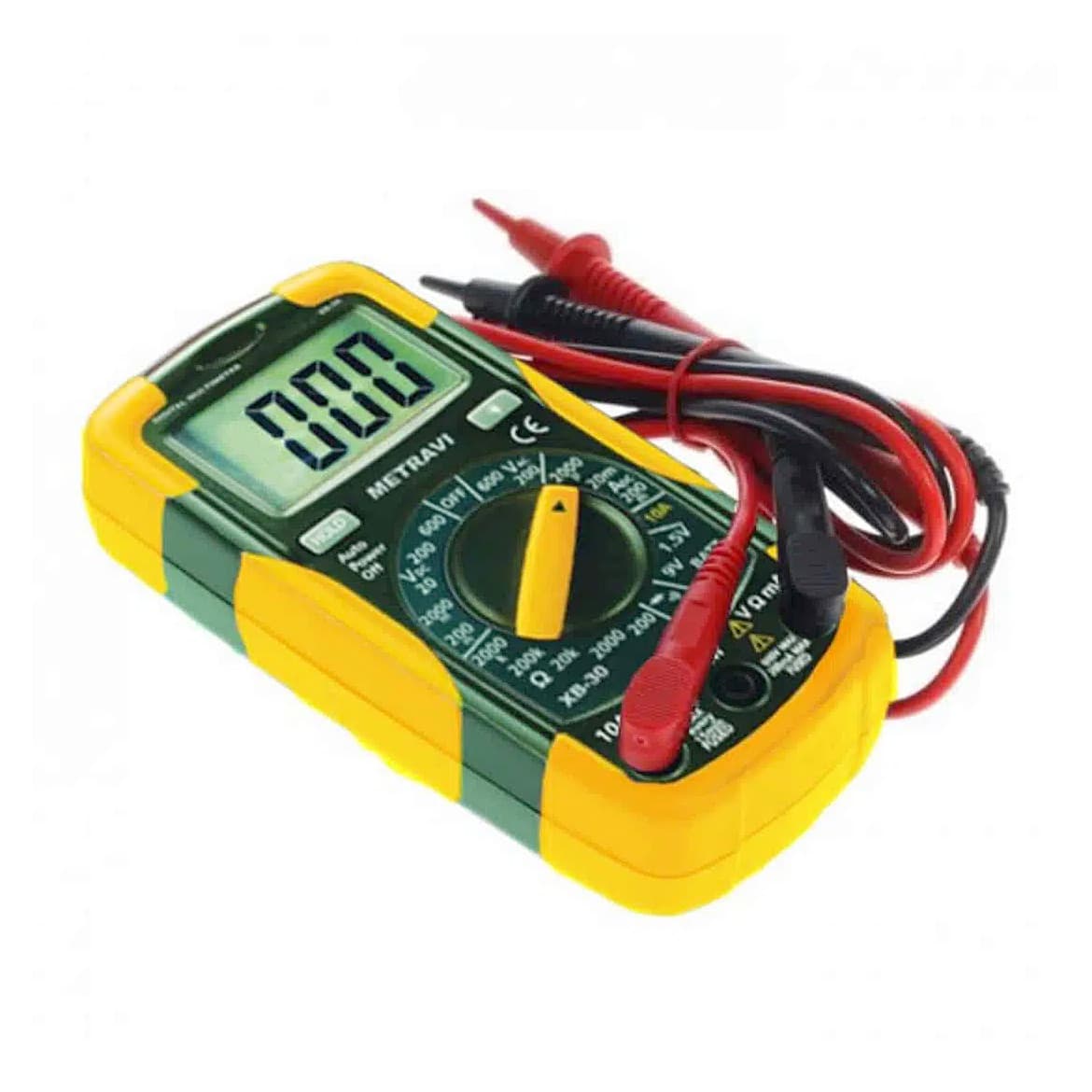

  1. Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30
  2. Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30
  3. Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30
  4. Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30
  5. Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30
  6. Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30

  • Weight: 255 Grams
  • Product Type: Multimeter
  • DC Voltage Range: 0–200mV/2V/20V/200V/600V
  • AC Voltage Range: 0-200V/600V
  • DC Current Range: 0-2000µA/20mA/200mA/10A
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

1624.86 (Incl. of all taxes)

1377+ ₹247.86 GST (18%)

MRP ₹2025

SAVE 32%



5 Business Days

1 Pcs

90308990

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

3-1/2 Digits, Backlit LCD, Fully Protected, Data Hold, AC Voltage, DC Voltage, DC Current, Resistance, Diode & Continuity Test.

Safety:

For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Category III.


Features:

  • Display: 1999 (3 ½) Count , 15mm Backlit LCD
  • Auto Power Off
  • Overload Indication
  • Low Battery Indication
  • Over Load Protection of 500V DC/AC RMS
  • Battery Test: 9V/1.5V
  • With Diode Test, Continuity  Test and Data Hold.
  • Operating Temperature 32 deg * F to mathcal 122 deg * F (0 deg * Cto * 50 deg * C)
  • Storage Temperature - 4 deg * F to 140 deg * F ( - 20 deg * C to 60 deg * C )
  • Relative Humidity <70% operating, <80% storage
  • Operating Altitude 7000ft. (2000) meters maximum.
  • Confirms to CE, CAT-III 600V, IEC 1010-1

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.MU.00060
Product TypeMultimeter
Model NoXB30
Display Backlit LCD
Colour Yellow-Black
Polarity Automatic
Sampling Time 2 times/sec

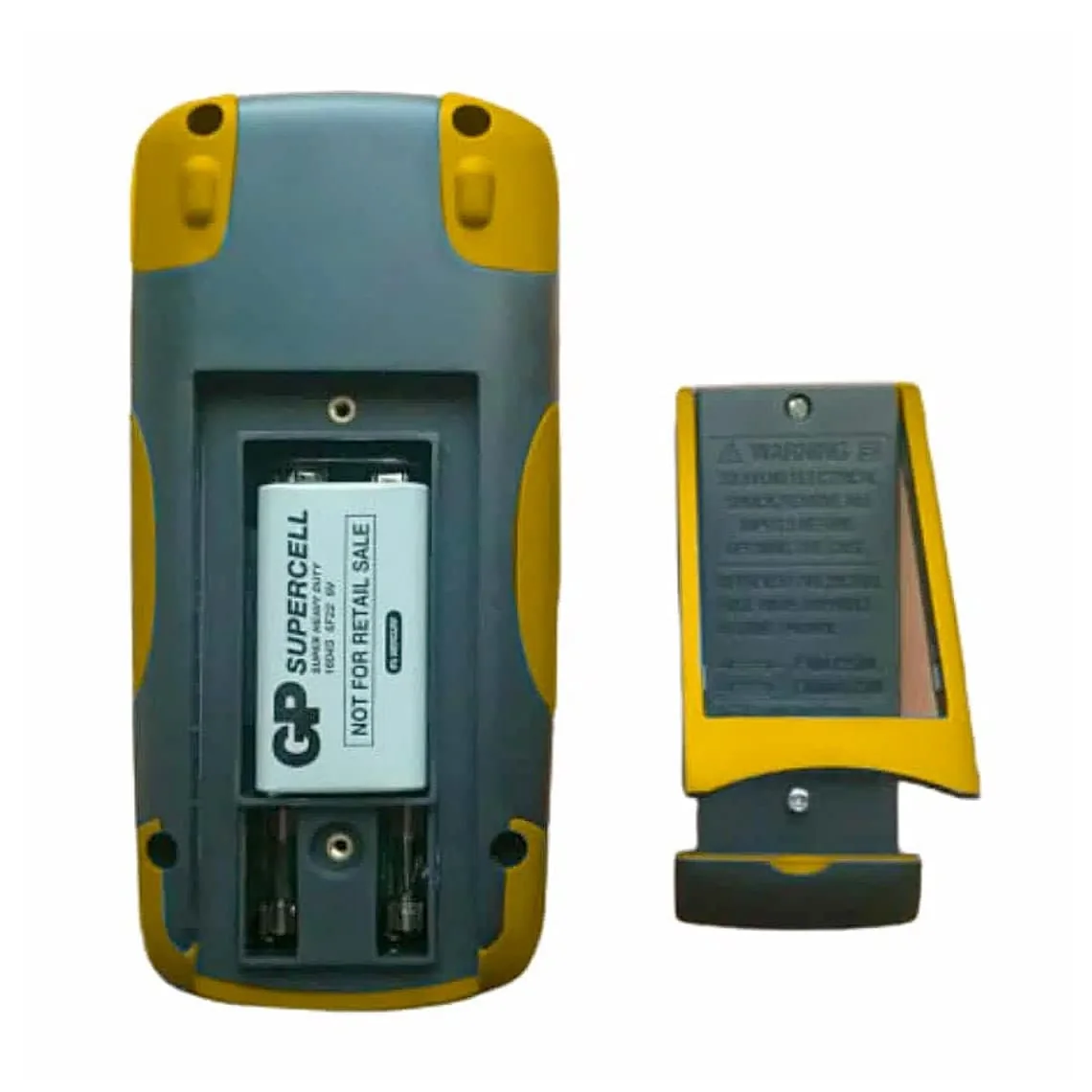

Power Source Battery Operated
Battery Type Alkaline
Battery Size 9V
No of Batteries 1
DC Voltage Range 0–200mV/2V/20V/200V/600V
DC Voltage Accuracy ±0.5%
AC Voltage Range 0-200V/600V
AC Voltage Accuracy ±1.2%
DC Current Range 0-2000µA/20mA/200mA/10A
DC Current Accuracy ±1%
Resistance Range 0-200/2k/20k/200k/2M Ohms
Resistance Accuracy ±1.0%
DC Voltage Resolution 0.1mV to 1V
AC Voltage Resolution 0.1V to 1V
DC Current Resolution 1µA to 10mA
Resistance Resolution 0.1 to 1k Ohms
Certifications CAT-III 600V, CE, IEC 1010-1
