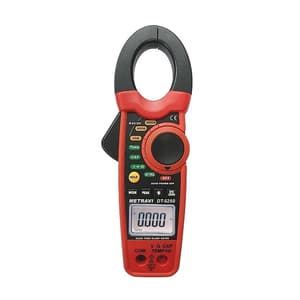

Metravi 3-3/4 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-5250

Shop all Metravi

SKU: ME.EL.CL.00064

Model: DT5250

Roll over image to zoom zoom_in
  1. Metravi 3-3/4 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-5250
  2. Metravi 3-3/4 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-5250
  3. Metravi 3-3/4 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-5250

  • Weight: 0.3 Kg
  • Product Type: Clamp Meters
  • Jaw Dia: 30 mm
  • DC Current Range: 0 – 40A / 400A / 1000A
  • Frequency Range: 0 to 4kHz
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

8383.9 (Incl. of all taxes)

7105+ ₹1278.9 GST (18%)

MRP ₹10449

SAVE 32%



5 Business Days

1 Pcs

90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

3-3/4 Digits, LCD, Data Hold, 30mm Jaw Size, T-RMS, AC/DC Voltage, AC/DC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test.

Features:

  • True RMS measurement of AC Current and AC Voltage
  • Large 4000 count 3-3/4 Digits LCD display with a bargraph and bright white LED backlight.
  • Wide measuring range from 0.01 AC/DC up to 1000A AC/DC Measures AC and DC Voltage up to 600 volts
  • Measures resistance from 0.12 up to 40M
  • Capacitance measurements up to 40mF
  • Temperature measurement from-40°C +1000°C and -40° to + 1832°F
  • Designed to the international safety standard IEC61010 CAT III 600V/CAT II 1000V, Pollution degree 2
  • Auto Power Off after approximately 20 minutes to conserve battery life
  • Continuity Buzzer and Diode Test
  • Frequency measurement up to 4kHz
  • Peak Hold to record the minimum and maximum readings for current and voltage
  • Data Hold switch used to freeze reading on display
  • T-RMS Clamp Meter
  • Auto Power Off
  • Data Hold Facility
  • Bargraph
  • Low Battery Indication
  • Overload Indication
  • Diode Test and Continuity Test


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.CL.00064
Product TypeClamp Meters
Model NoDT5250
Display Backlit LCD
Colour Black-Red
Jaw Dia 30 mm
Sampling Time 2 times/sec
Power Source Battery Operated
Battery Type Alkaline
Battery Size 9V
No of Batteries 1
DC Current Range 0 – 40A / 400A / 1000A
AC Current Range 0 – 40A / 400A / 1000A
DC Voltage Range 0 – 400mV / 4V / 40V / 400V / 600V
AC Voltage Range 0 – 400mV / 4V / 40V / 400V / 600V
Resistance Range 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO
Capacitance Range 0 – 4nF / 40nF / 400nF / 4uF / 40uF / 400uF / 4mF / 40mF
Temperature Range -40°C to 1000°C
Frequency Range 0 to 4kHz
DC Current Accuracy ±2.8%
AC Current Accuracy ±2.8%
DC Voltage Accuracy ±0.8%
AC Voltage Accuracy ±1.0%
Resistance Accuracy ±1.0%
Capacitance Accuracy ±3.0%
Temperature Accuracy ±2.5%
Frequency Accuracy ±1.5%
DC Current Resolution 0.01A to 1A
AC Current Resolution 0.01A to 1A
DC Voltage Resolution 0.1mV to 1V
AC Voltage Resolution 0.1mV to 1V
Resistance Resolution 0.1O to 10kO
Capacitance Resolution 0.001nF to 0.01µF
Frequency Resolution 0.001kHz
Temperature Resolution 1°C
Certifications CAT-II 1000V, CAT-III 600V, CE, IEC 61010
