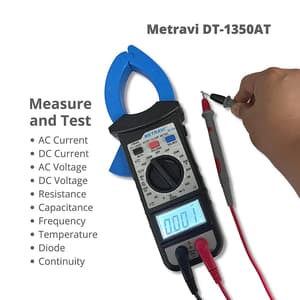

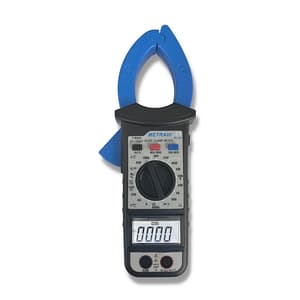

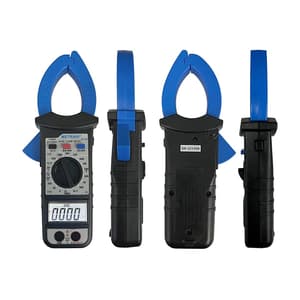

Metravi 3-5/6 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-1350AT

Shop all Metravi

SKU: ME.EL.CL.00058

Model: DT1350AT

Roll over image to zoom zoom_in
  1. Metravi 3-5/6 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-1350AT
  2. Metravi 3-5/6 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-1350AT
  3. Metravi 3-5/6 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-1350AT
  4. Metravi 3-5/6 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-1350AT
  5. Metravi 3-5/6 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-1350AT
  6. Metravi 3-5/6 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-1350AT

  • Weight: 0.35 Kg
  • Product Type: Clamp Meters
  • AC Current Range: 0-600A/1000A
  • DC Current Range: 0-600A/1000A
  • AC Voltage Range: 0-6V/60V/600V/750V
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

3726.44 (Incl. of all taxes)

3158+ ₹568.44 GST (18%)

MRP ₹4644

SAVE 32%



5 Business Days

1 Pcs

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi DT-1350AT clamp meter is a 5 5/6 Digital Clamp Meter with backlit LCD and powered by two AAA Batteries. The Unit adopts full-function overload protection circuit and can be used for the measurement of DC/AC Voltage, AC Current, DC Current, Resistance, Capacitance, Frequency and Temperature.

The unit is reasonably structured and adopts a rotary switch that integrates function selection, range selection and power on/off. It is a portable and ideal tool for electrical measurements. The DT-1350AT is in compliance with safety standards, including IEC61010-1, IEC61010-2-032, CAT III 600V and Pollution Degree II.


Safety:

This Unit is in compliance with safety standards, including IEC61010-1, IEC61010-2-032, CAT III 600V and Pollution Degree II. Please read the User Manual carefully before use

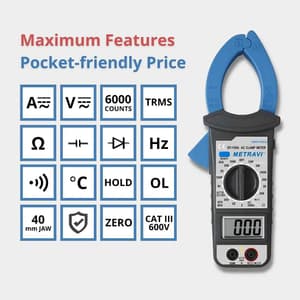

Features:

  • 3-5/6 Digits 6000 Counts Backlit LCD Display
  • Confirms to IEC61010-1, IEC61010-2-032, CAT III 600V
  • Over Range and Low Battery Indication
  • Data Hold Facility
  • Clamp Jaw 40mm
  • 500V AC/DC Protection in all ranges

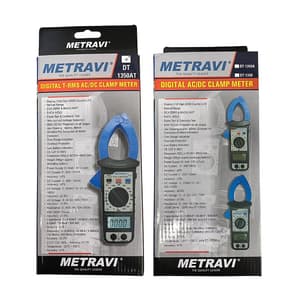

What's Included In This Package:

  • User Manual
  • Test Leads
  • K-type Bead Thermocouple Probe
  • Battery
  • Carry case


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.CL.00058
Product TypeClamp Meters
Model NoDT1350AT
Display Backlit LCD
Jaw Dia 40 mm
Low Battery Indication Low Battery Indication
NCV Detection Non-contact Voltage Detection
Power Source Battery Operated
Battery Size AAA
No of Batteries 2
AC Current Range 0-600A/1000A
DC Current Range 0-600A/1000A
AC Voltage Range 0-6V/60V/600V/750V
DC Voltage Range 0-600mV/6V/60V/600V/1000V
Resistance Range 0-600O/6kO/60kO/600kO/6MO/60MO
Frequency Range 9.999Hz to 9.999MHz
Capacitance Range 0 to 999.9uF
Temperature Range -20°C to 750°C
AC Current Accuracy ±3.0%
DC Current Accuracyq ±3.0%
AC Voltage Accuracy ±1.0%
DC Voltage Accuracy ±0.8%
Resistance Accuracy ±0.8%
Frequency Accuracy ±0.3%
Capacitance Accuracy ±3.0%
Temperature Accuracy ±1.0%
AC Current Resolution 0.1A to 1A
DC Current Resolution 0.1A to 1A
AC Voltage Resolution 0.001V to 1V
DC Voltage Resolution 0.1mV to 1V
Resistance Resolution 0.001Hz to 1kHz
Capacitance Resolution 1pF to 100nF
Temperature Resolution -20°C to 400°C
Certifications CAT-III 600V, IEC-61010-1, IEC-61010-2-032
