Metravi 3-5/6 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 421
- Product Type: Clamp Meters
- Jaw Dia: 35 mm
- Temperature Range: -20°C to 1000°C
- Power Source: Battery Operated
- AC Current Range: 0-600A/1000A
- AC Voltage Range: 0-6V/60V/600V/1000V
- Frequency Range: 9.999Hz to 99.99kHz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹9207.54 (Incl. of all taxes)
₹7803+ ₹1404.54 GST (18%)
MRP ₹11475
SAVE 32%
5 Business Days
1 Pcs
90303100
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

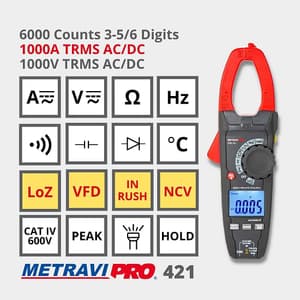

3 5/6 Digits Professional T-RMS AC/DC Clamp Meter, 6000 Counts, 1000V AC T-RMS/DC, 1000A AC T-RMS/DC with LoZ, Inrush, Peak, VFD and Relative Measurements, 100mF Capacitance, 100kHz Frequency, 60MΩ Resistance, 1000°C Temperature, Continuity Test, Non-Contact Voltage Detector, Flashlight, Data Hold, MAX-MIN Record and more.
A professional True RMS Clamp Meter with Inrush current, Low impedance (LoZ) mode, Low Pass Filter (VFD) and Inrush functions. The PRO 421 provides fast A/D converting sampling time, high accuracy and offers all needed features for industrial measurement. Modern housing and jaw design make for perfect handhold and tight place testing. A clear backlit display makes it easy to see the readings and handy data hold keeps measurements on the display.

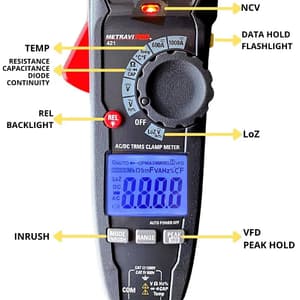

Features:
- Professional T-RMS AC/DC Clamp Meter
- 6000 Counts, 3-5/6 Digits Backlit LCD Display
- Confirms to CAT-IV 600V, CAT-III 1000V, CE, IEC-61010-1
- 600V AC/DC Protection in all ranges
- 34 mm Clamp Jaw Dia
- Auto Power Off
- Low Battery Indication
- Overload Indication

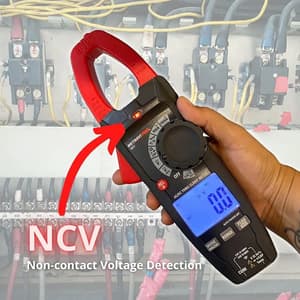

- Non Contact Voltage Detection (NCV)
- Relative Measurement
- Inrush Current Measurement to measure start of Motors
- Peak / Data Hold
- Diode & Continuity tesy
- Measurement of Voltage in Variable Frequency Drive (VFD)
- Lo-Z Voltage measurement

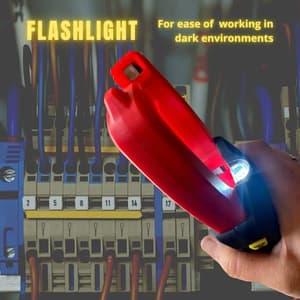

- Flashlight to access dark areas
- Double Injection Housing, providing double insulation
- Data Hold, MAX-MIN Record
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.CL.00073 |
|---|---|
| Product Type | Clamp Meters |
| Model No | Pro421 |
| Display | Backlit LCD |
| Colour | Grey-Pink |
| Jaw Dia | 35 mm |
| Duty Cycle Range | 10% to 90% |
| Temperature Range | -20°C to 1000°C |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 3 |
| AC Current Range | 0-600A/1000A |
| DC Current Range | 0-600A/1000A |
| AC Voltage Range | 0-6V/60V/600V/1000V |
| DC Voltage Range | 0-600mV/6V/60V/600V/1000V |
| Resistance Range | 0-600O/6kO/60kO/600kO/6MO/60MO |
| Capacitance Range | 0-60nF/600nF/6uF/60uF/600uF/6000uF/60mF/100mF |
| Frequency Range | 9.999Hz to 99.99kHz |
| Temperature Accuracy | ±3% |
| AC Current Accuracy | ±2.5% |
| DC Current Accuracy | ±2.5% |
| AC Voltage Accuracy | ±1.5% |
| DC Voltage Accuracy | ±0.5% |
| Resistance Accuracy | ±1.0% |
| Capacitance Accuracy | ±3.0% |
| Frequency Accuracy | ±1.2% |
| Certifications | CAT III 1000V, CAT IV 600V, CE, IEC-61010-1 |
