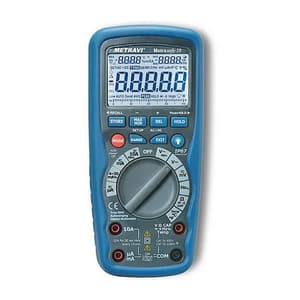

Metravi 4-3/4 Digits / 1000V Fully-Protected Digital TRMS Multimeter With Wireless USB PC Interface, Metrasafe-19
- Weight: 342 Grams
- Product Type: Multimeter
- DC Voltage Resolution: 0.01mV to 0.1V
- DC Current Resolution: 0.01µA to 0.001A
- Resistance Resolution: 0.01 to 0.001M Ohms
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹20039.94 (Incl. of all taxes)
₹16983+ ₹3056.94 GST (18%)
MRP ₹24975
SAVE 32%
5 Business Days
1 Pcs
90308990
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
4-3/4 Digits, Analogue Bargraph, Wireless PC Interface, T-RMS, Backlit LCD, Autoranging, Fully protected, Data & Peak Hold, Max/Min Record, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Temperature, Non Contact type Infra Red Thermometer, Duty Cycle, Diode & Continuity Test. Confirms to CAT IV 600V.
This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency (electrical & electronic), Duty Cycle, Diode Test, and Continuity plus Thermocouple Temperature. It can store and recall data. It features waterproof, rugged design for heavy duty use. Proper use and care of this meter will provide many years of reliable service. It can store 9999 readings in offline mode and also has wireless PC Interface facility.
Features:
- Fully Protected DMM
- 1200V DC/AC RMS Protectoin in Voltage Ranges
- 20A DC/AC RMS Protection in Ampere Ranges
- 1000V DC/AC RMS Protection in Resistance, Capacitance, Frequency, Temperature, Diode and Continuity Test
- Surge Protection 8kV Peak IEC-61010
- “O” Ring Seal Body
- Dust & Water Proof IP-67 Protection
- Wireless USB PC Interface
- T-RMS Measurements
- Low Battery Indication
- Overload Indication
- Peak Hold, Relative Measuring Facility,
- MAX / MIN Recording, Auto Power Off
- Display: 4-¾ Digits 40,000 Counts Backlit LCD
- DC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ± 0.06%
- AC Voltage: 0 – 400mV/4V/40V/400V/1000V T-RMS
- Accuracy: ± 1.0%
- DC Current: 0 – 400µA/4000µA/40mA/400mA/10A
- Accuracy: ± 1.0%
- AC Current: 0 – 400µA/4000µA/40mA/400mA/10A T-RMS
- Accuracy: ± 1.0%
- Resistance: 0 – 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
- Accuracy: ± 0.3%
- Capacitance: 0 – 40nF/400nF/4µF/40µF/400µF/4000µF/40mF
- Accuracy: ± 3.5%
- Frequency: 40Hz/400Hz/4KHz/40KHz/400KHz/4MHz/40MHz/100MHz
- Accuracy: ± 0.1%
- Duty Cycle: 0.1% to 99.90%
- Accuracy: ± 1.2%
- Temperature: -58°F to 2192°F / -50°C to 1200°C
- Accuracy: ± 1.0%
- Diode Test and Audible Continuity Test Facility
- Confirms to EN61010-1,CAT-III 1000V, CAT-IV 600V, UL 61010B-2-031
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00082 |
|---|---|
| Product Type | Multimeter |
| Model No | Metrasafe19 |
| Display | Backlit LCD |
| Colour | Blue-Grey |
| Bargraph | Analogue Bargraph |
| Drop Tested | Drop Tested up to 2 Mtr |
| Polarity | Automatic |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Sensor Type | Temperature Sensor |
| Protection | Surge Protection |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| Infrared Temperature Range | -30°C to 550°C |
| Temperature Adaptor | Infra-red Non-contact Type |
| DC Voltage Resolution | 0.01mV to 0.1V |
| AC Voltage Resolution | 0.1mV to 1V |
| DC Current Resolution | 0.01µA to 0.001A |
| AC Current Resolution | 0.01µA to 0.001A |
| Resistance Resolution | 0.01 to 0.001M Ohms |
| Capacitance Resolution | 0.001nF to 0.001mF |
| Frequency Resolution | 0.001Hz to 0.01MHz |
| Temperature Resolution | 1°C |
| Certifications | CAT III 1000V, CAT IV 600V, CSA 61010-1, EN-61010-1, IEC-61010-1, Pollution Grade 2, UL 61010B-2-031, UL-61010-1 |
