Mitutoyo 100 - 115 mm V-Anvil Micrometer with Carbide Tip (3 Flute), 114-108
Roll over image to zoom zoom_in
- Weight: 1.48 Kg
- Product Type: V-Anvil Micrometer
- Range (mm): 100 - 115 mm
- Flutes: 3
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹33444.74 (Incl. of all taxes)
₹28343+ ₹5101.74 GST (18%)
MRP ₹37790
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

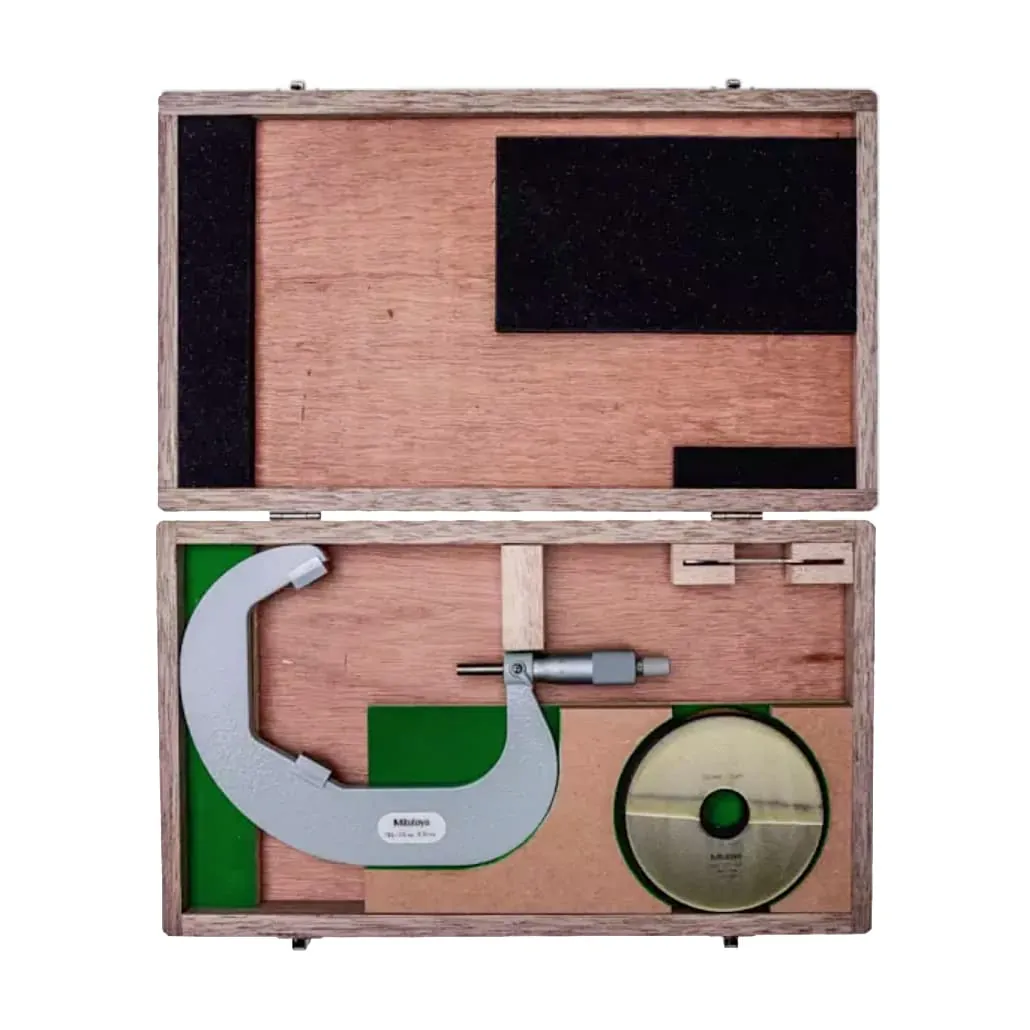

Package Content:
- V-Anvil Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.VA.00024 |
|---|---|
| Product Type | V-Anvil Micrometer |
| Model No | 114-108 |
| Range (mm) | 100 - 115 mm |
| Flutes | 3 |
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error (JMPE) | ±8µm |
| Anvil | 60 Degree (Without Groove) |
| Measuring Force | 5 - 10 |
| Measuring Spindle | With Spindle Lock ø6.35 mm & Spindle Pitch 0.75 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Setting Standard | 167 - 334 ø100 mm |
