Mitutoyo 58 mm Dia. Transfer Stand, 519-109-10

Name: Mitutoyo 58 mm Dia. Transfer Stand, 519-109-10
Brand: Mitutoyo
SKU: ME.DI.DI.00583
Price: 38565 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Mitutoyo

SKU: ME.DI.DI.00583

Model: 519-109-10

Roll over image to zoom zoom_in

Visit Mitutoyo Store keyboard_double_arrow_right

Key Features

Weight: 6 Grams
Product Type: Dial Indicator Stand
Effective table dimensions (Dia.): Ø58 mm
Type of Product: For Dial Indicators

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹45506.7 (Incl. of all taxes)

₹38565+ ₹6941.7 GST (18%)

MRP ₹51420

SAVE 25%

Dispatch: 7 Business Days

Items in Pack: 1 Pcs

HSN Code: 90319000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

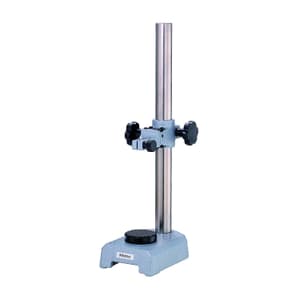

Transfer Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator

Features:

Fine-adjustment of 1 mm available for zero-setting of the indicator
Interchangeable anvils are optional
Supplied with serrated anvil

Package Content:

1x Transfer Stand

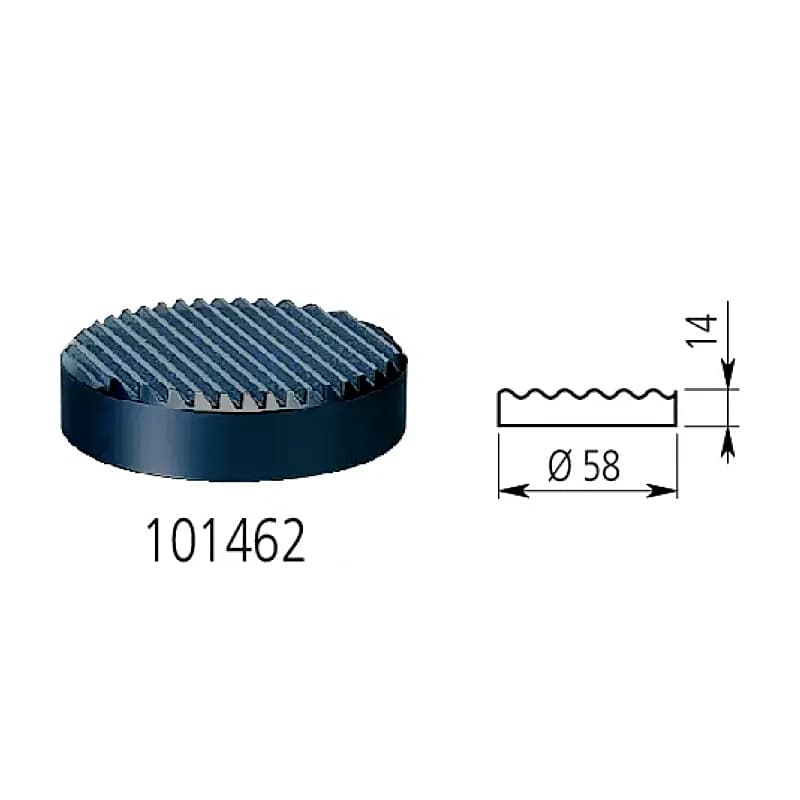

1x serrated anvil (101462)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

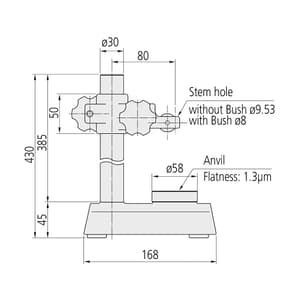

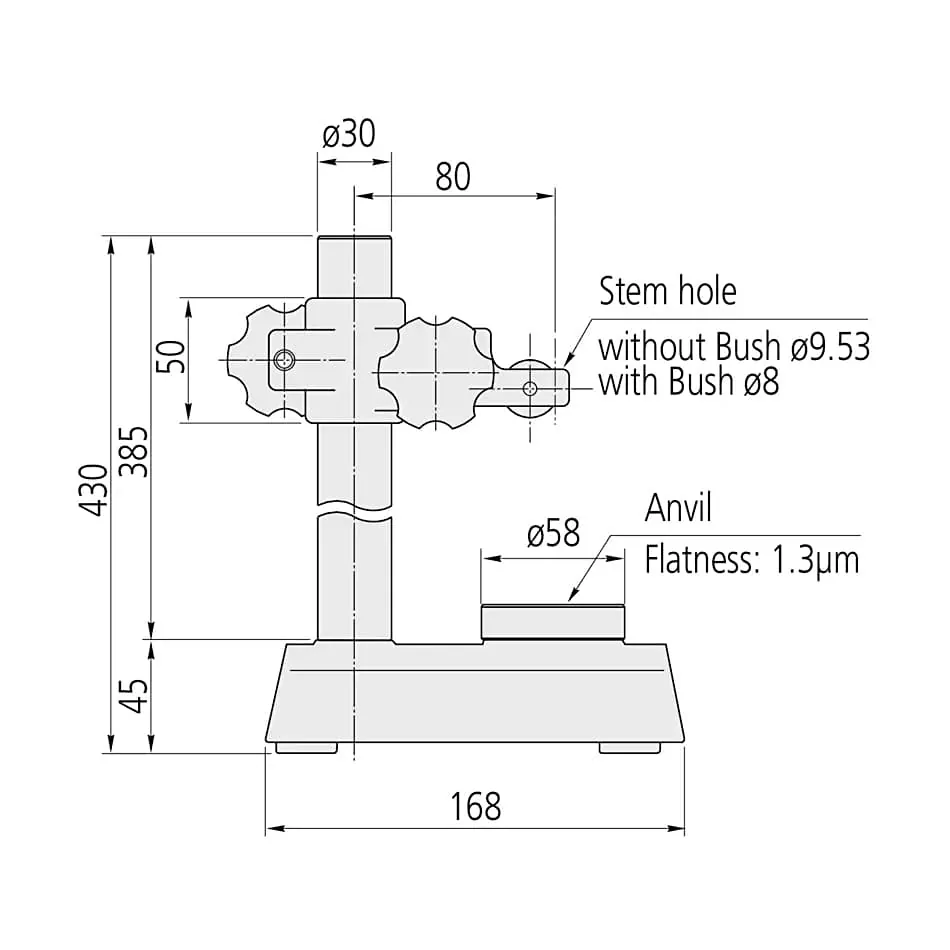

Specifications

SKU	ME.DI.DI.00583
Product Type	Dial Indicator Stand
Model No	519-109-10
Effective table dimensions (Dia.)	Ø58 mm
Type of Product	For Dial Indicators
Basic Size	168 x 110 mm
Measuring table	Serrated
Column (Dia)	30 mm Dia.
Max. height measurement	318 mm
Perpendicularity of the table-barrel opening	0.4 / 100 mm
Table surface	1.3 µm
Fine Adjustment	1 mm
Rod hole (Dia.)	ø 3/8" / 9.53 mm , 8 mm with bush (standard accessory)
