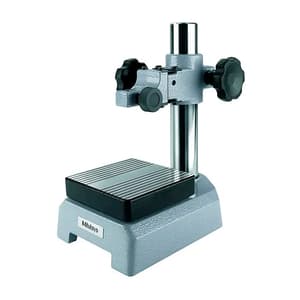

Mitutoyo 90 x 90 mm (Square Anvil) Dial Gauge Stand, 7007-10
Roll over image to zoom zoom_in
- Weight: 5 Kg
- Product Type: Dial Indicator Stand
- Type of Product: For Dial Indicators
- Effective table dimensions (mm): 90 x 90 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹39604.34 (Incl. of all taxes)
₹33563+ ₹6041.34 GST (18%)
MRP ₹44750
SAVE 25%
7 Business Days
1 Pcs
90319000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Mitutoyo Dial Gauge Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Vertical fine adjustment is available with one-touch control thanks to the parallel spring suspension.
Package Content:
- 1x Dial Gauge Stand
- 1x Stem bush (21JAA317)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

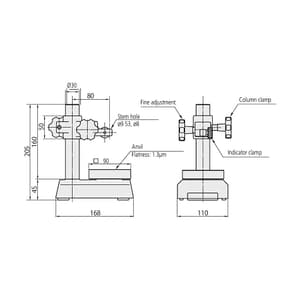

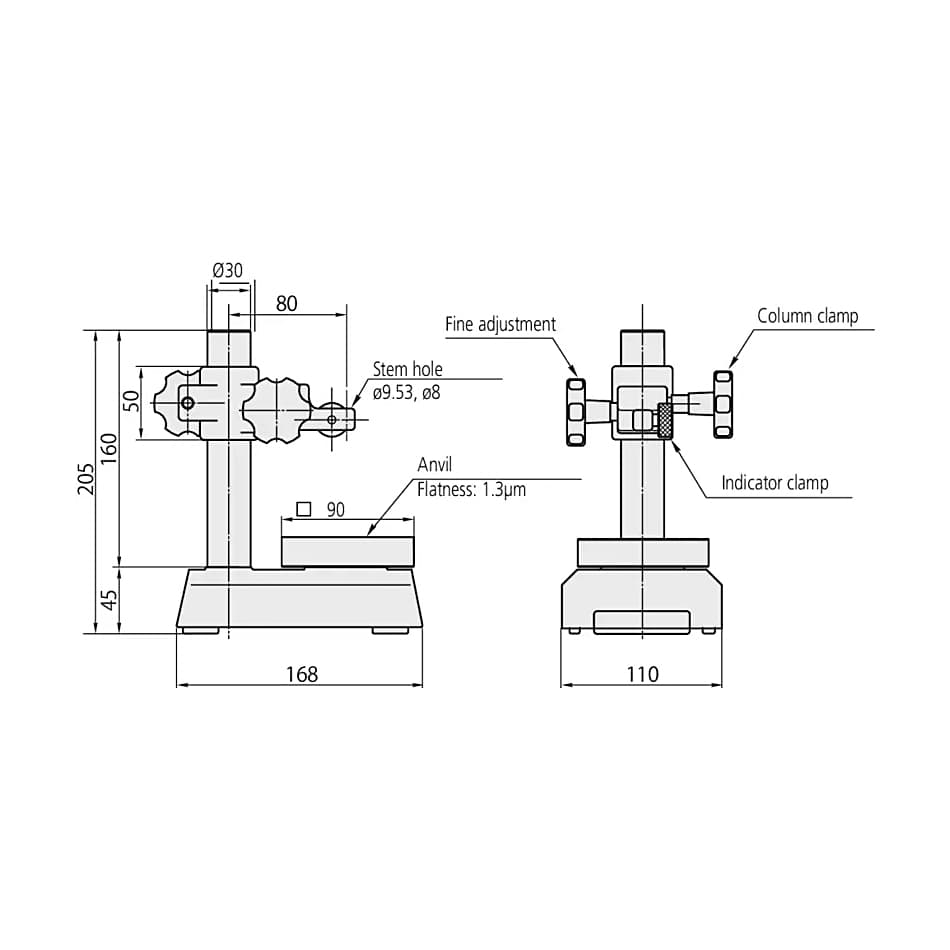

Specifications
| SKU | ME.DI.DI.00595 |
|---|---|
| Product Type | Dial Indicator Stand |
| Model No | 7007-10 |
| Type of Product | For Dial Indicators |
| Effective table dimensions (mm) | 90 x 90 mm |
| Column Dia. | Ø30 mm |
| Fine Adjustment | 1 mm |
| Max. measurement height | 90 mm |
| Perpendicularity table-stem hole | 100 mm / 0.4 inch |
| Stem hole Dia. | Ø3/8" / 9.53 mm , 8 mm with bush (Standard Accessory) |
| Table Flatness | 1.3µm |
