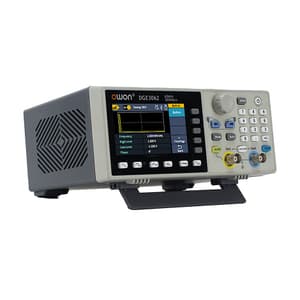

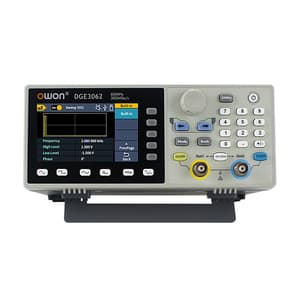

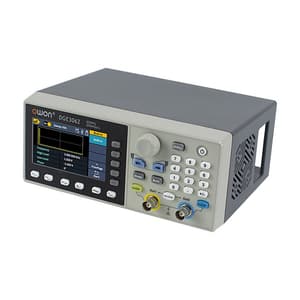

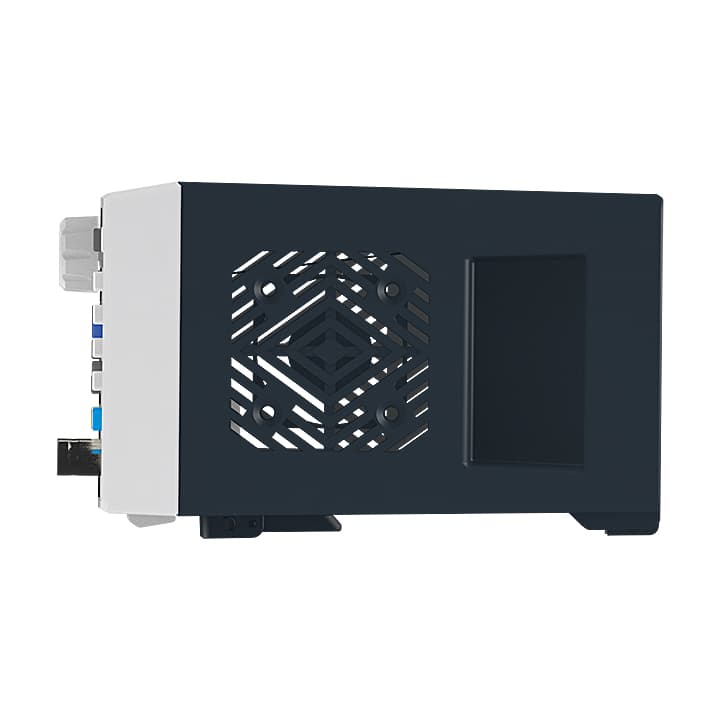

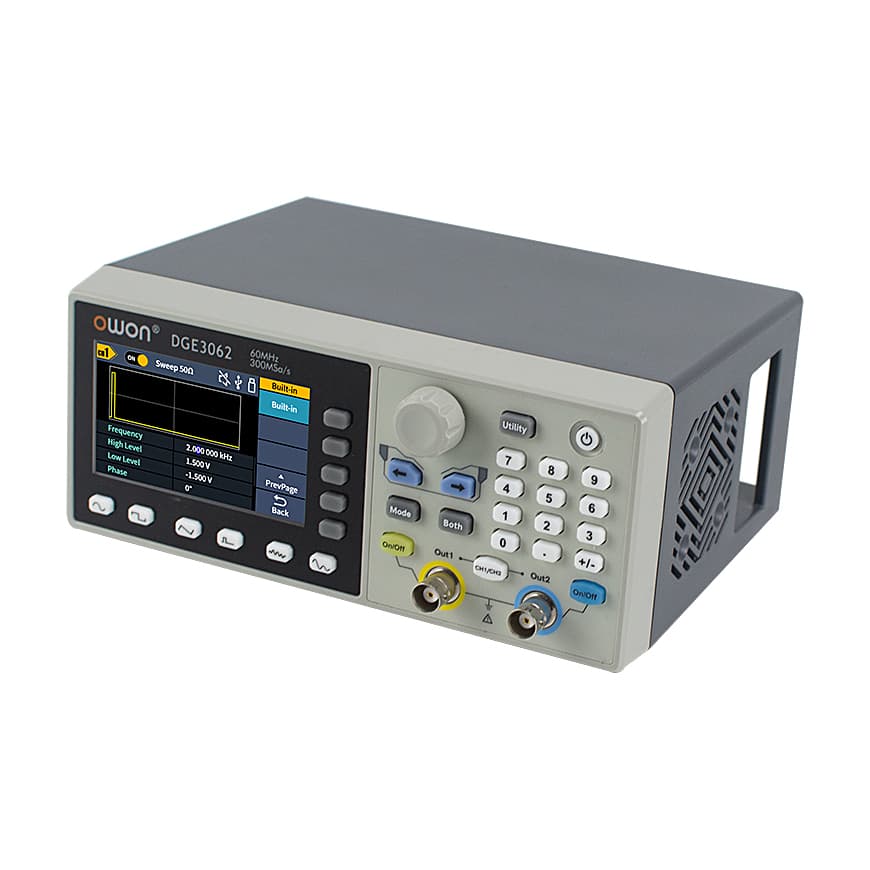

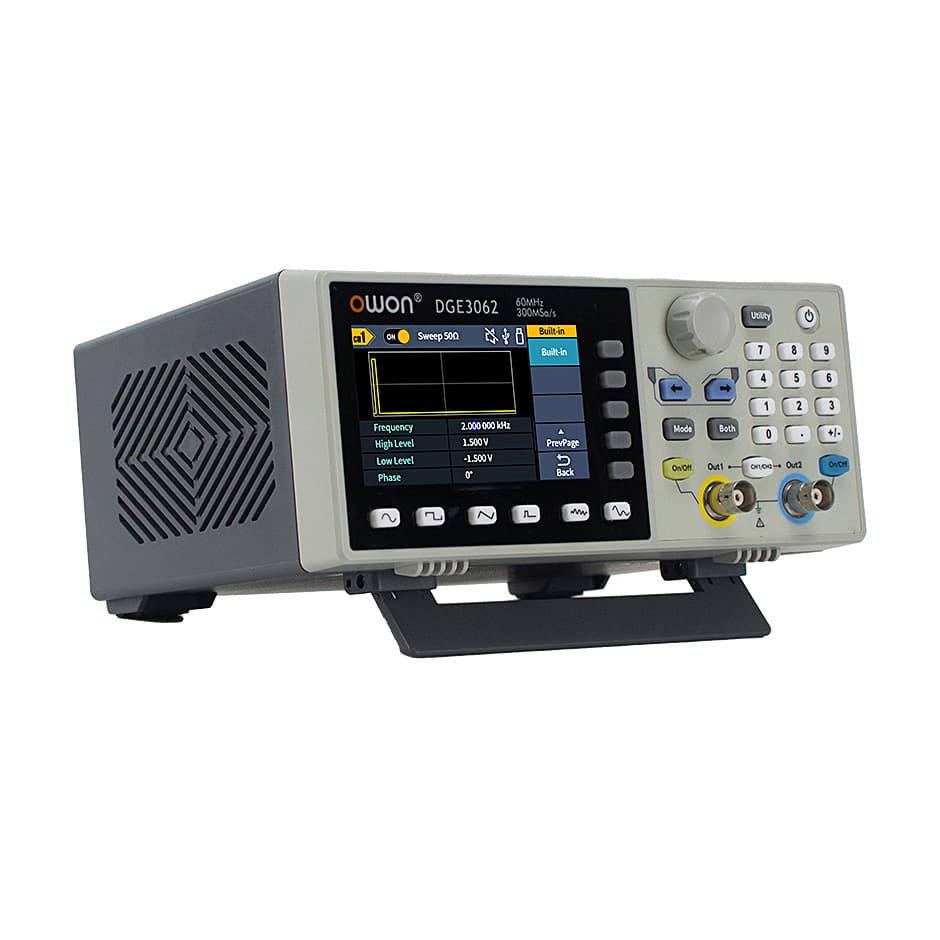

Owon 60MHz / 300MS/s Arbitrary Waveform Function Generator, DGE 3062
Roll over image to zoom zoom_in
- Product Type: Function Generators
- Frequency Output: 60MHz
- Sample Rate: 300MSa/s
- Channel: 2
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹23125.64 (Incl. of all taxes)
₹19598+ ₹3527.64 GST (18%)
MRP ₹23900
SAVE 18%
5 Business Days
1 Set
90303350
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Max 60MHz frequency output,300MSa/s Sample rate
- 14 bits Vertical Resolution, 100K Arb waveform length

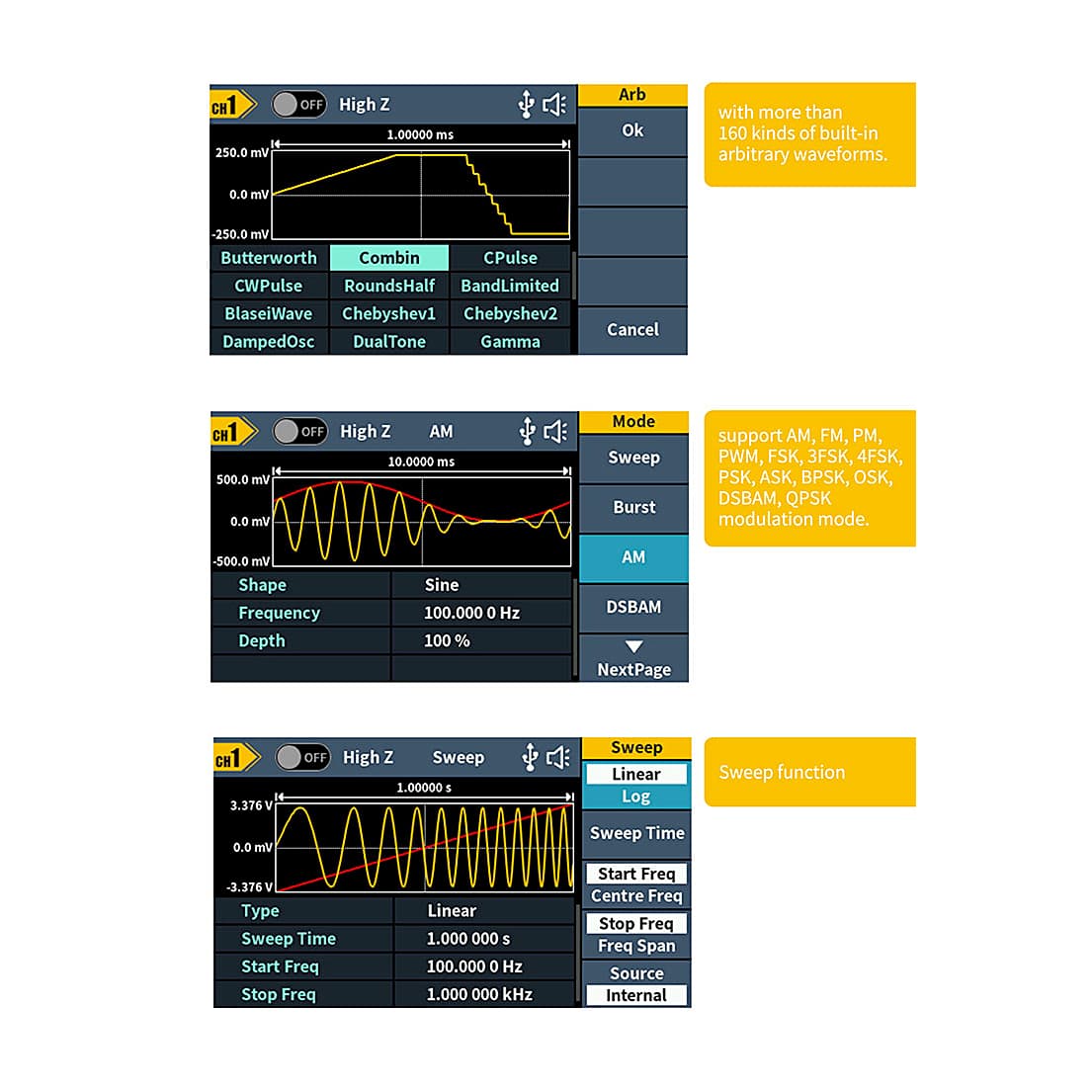

- Comprehensive waveform output: 5 basic waveforms and 160 built-in arbitrary waveforms
- Comprehensive modulation functions: AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSBAM, QPSK, SUM, sweep, Burst
- SCPI supported
Technical Data:
|
Amplitude | ||
|
into 50Ω load |
| |
|
DC Offset Range (AD+DC) |
±(10 Vpk – Amplitude Vpp/2) high resistance; ±(5 Vpk – Amplitude Vpp/2) 50Ω | |
|
DC offset resolution |
1mV or 4digits | |
|
Load Impedance |
50Ω (typical) | |
|
DC offset Accuracy |
±(1 % of |setting| + 1 mV + amplitude Vpp 0.5%) | |
|
Modulation | ||
|
Type |
AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSB-AM, QPSK, SUM, Sweep, Burst | |
|

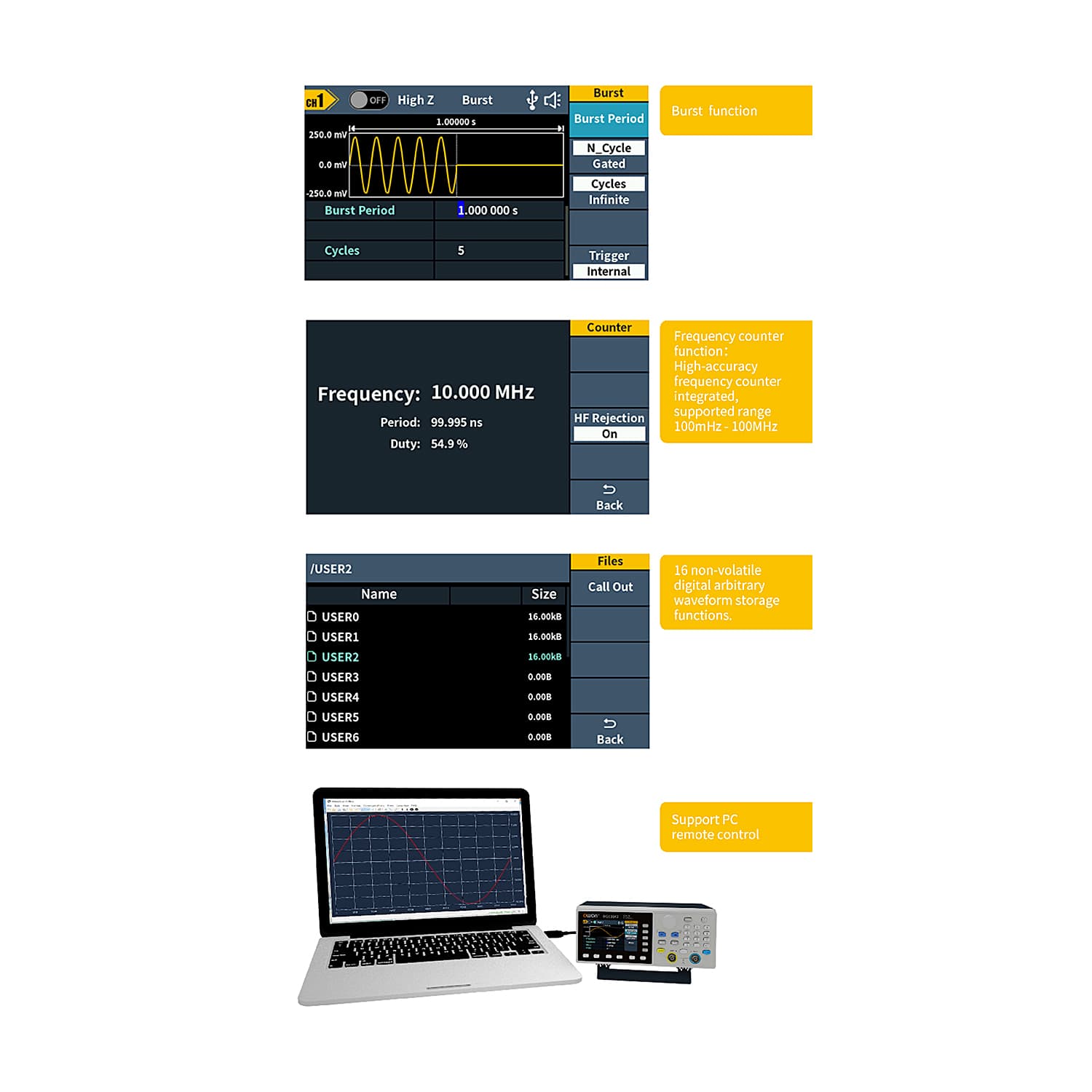

Frequency Counter | ||
|
Function |
Frequency, Period | |
|
Frequency Range |
100mHz ~ 200MHz | |
|
Frequency Resolution |
6 digits | |
|
Input / Output | ||
|
Display |
3.6-inch LCD | |
|
Input mode |
| |
|
Communication Interface |
USB Host, USB Device | |
Package Content:
- Waveform Function Generator
- Power Cord
- Quick Guide
- USB Cable
- Q9 Cable
- BNC to Alligator Clip
 |
 |
 |
 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.FU.00037 |
|---|---|
| Product Type | Function Generators |
| Model No | DGE3062 |
| Frequency Output | 60MHz |
| Sample Rate | 300MSa/s |
| Channel | 2 |
| Vertical Resolution | 14 Bits |
| Standard Waveform | Sine, Square, Pulse, Ramp & Nois |
| Arbitrary Waveform | Exponential Rise, Exponential Fall, Sin(X)/x, Step Wave & Others, Total 160 Built-in Waveforms |
| Frequency | 1µHz-60MHz (Sine) / 1µHz ~ 20MHz (Square & Pulse) / 1µHz ~ 2MHz (RAMP) |
| Frequency Noise | 20MHz (-3dB, Typical) |
| Frequency Arbitrary Waveform | 1µHz - 10MHz |
| Arbitrary Waveform Length | 2 Points – 100K Points |
| Arbitrary Sample Rate | 300MSa/s |

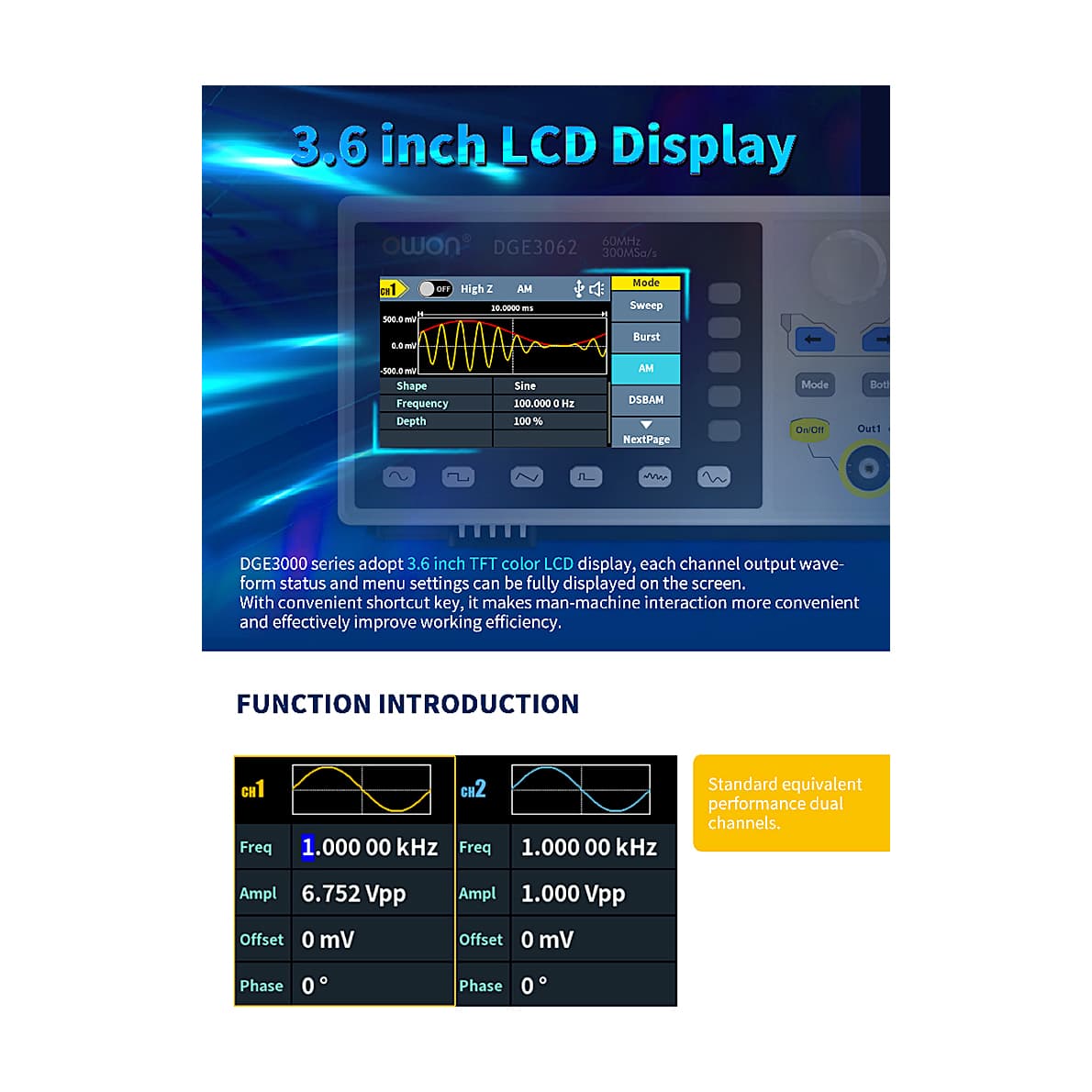

| Display | 3.6 inch LCD |
| Communication Interface | USB Host, USB Device |
| Input Mode | External Modulation Input, External Trigger Input, External Reference Clock Input / Output |

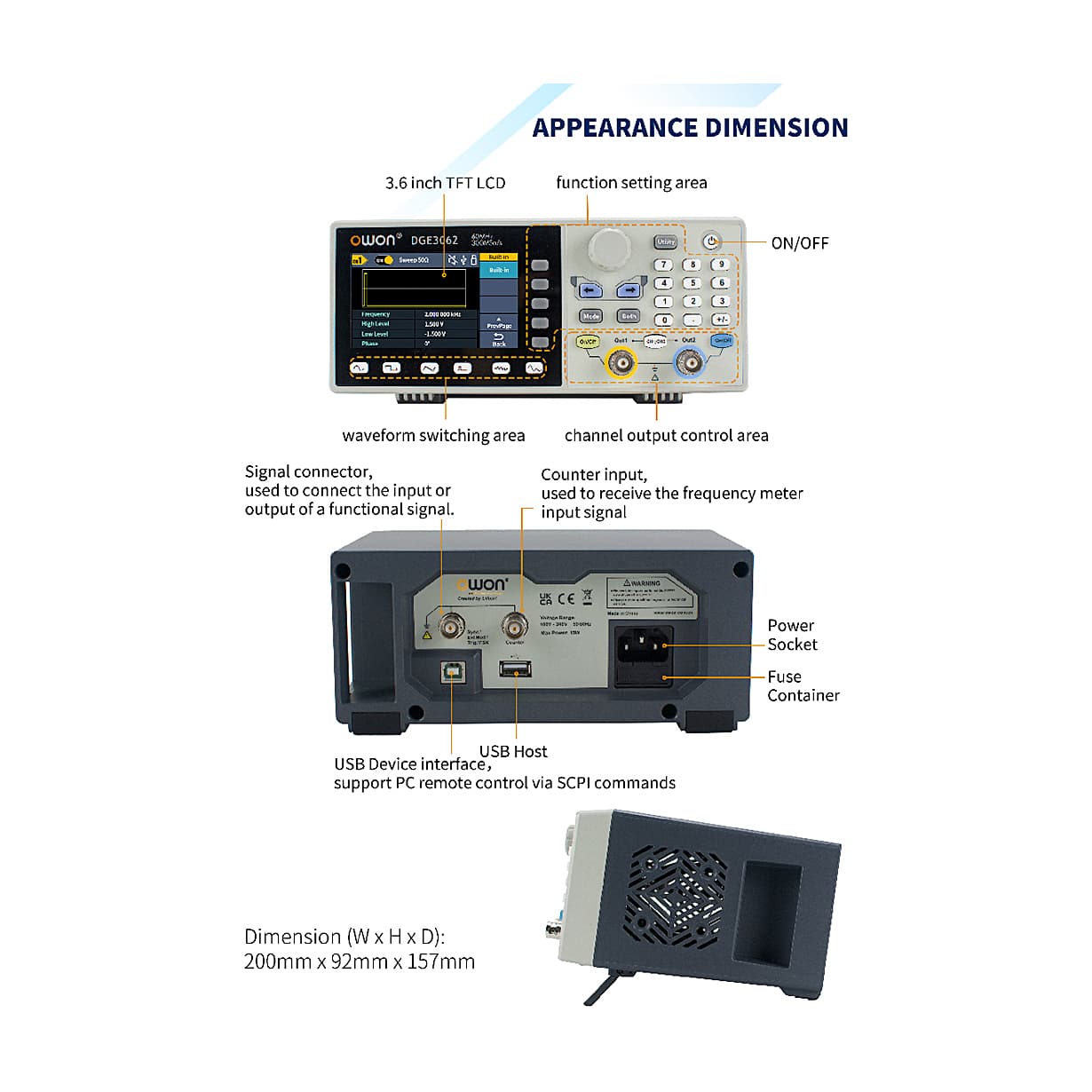

| Dimensions (W×H×D) | 200 x 92 x 157 mm |
