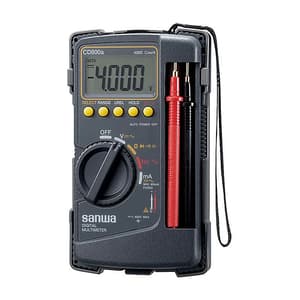

The CD800a is designed for the measurement of home electrical appliances, small communication equipment, and low voltage circuit analysis. This device features a 4000 count high-contrast display with a character height of 17.5 mm. It has an accuracy of 0.7% and measures a max of 600 V in DC mode and 600 Volts in AC mode. Auto range feature allows users to change the measurement ranges, and can also be manually adjusted by pressing the range hold function.

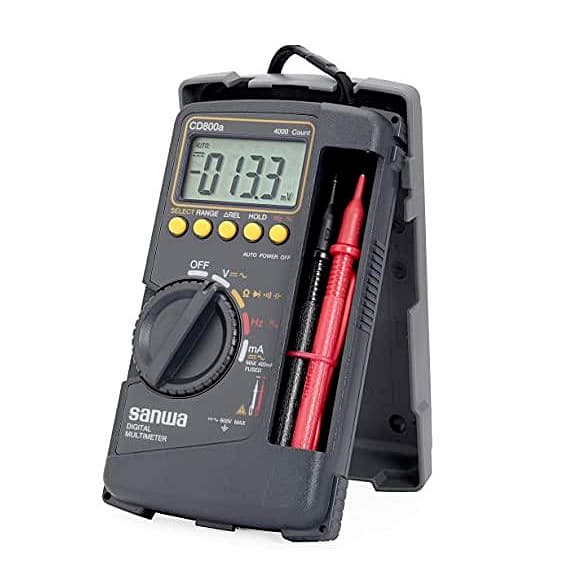

This multimeter offers all necessary features required to measure basic electrical quantities such as voltage, resistance, current, capacitance, frequency, duty cycle, and continuity test. The device also features a hold function that allows users to hold or pause a measurement. The device has a 0.5 A/250V fuse with a blow-out capacity of 1.5kA. It has a solid and protective body cover that can also be used as a tilt stand to keep the meter upright on a stable base. The device does not have lead holders on the back, but it does have a compartment in the front to keep the testing leads protected.

Features:

• 4000 counts
• 0.7% Best Accuracy
• Sharp contrast LCD with character 17.5mm high is used

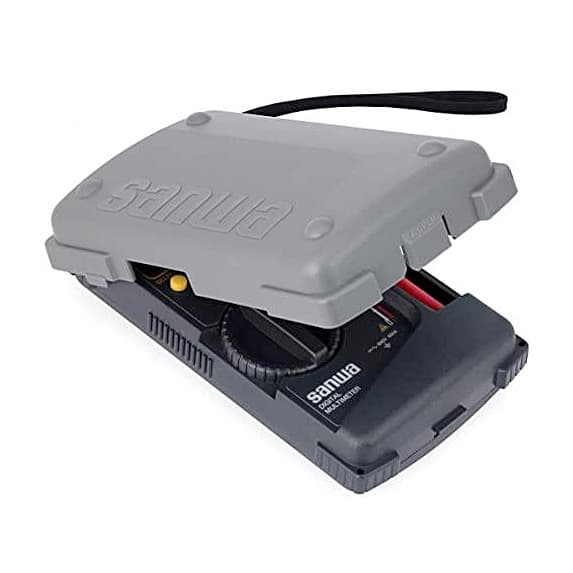

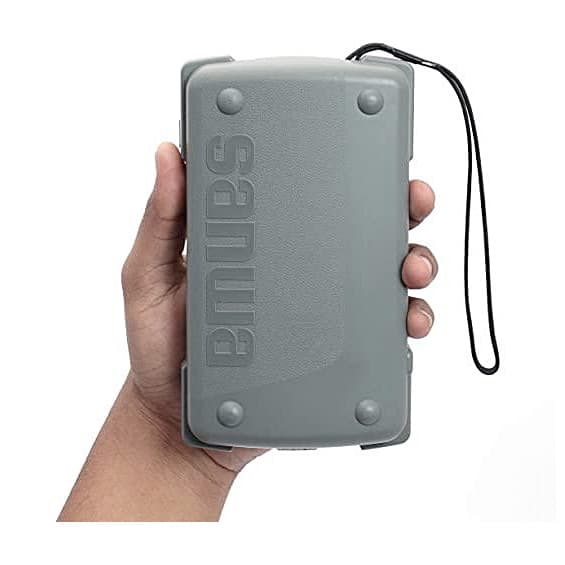

• Solid & protective body cover that can also be used as a tilt stand
• Frequency, capacitance, and duty cycle measurement function
• Continuity test with buzzer

Technical Data:

	Range	Accuracy	Resolution	Input Impedance
DCV	400m / 4 / 40 / 400 / 600V	±(0.7%+3)	0.1mV	10M~100MΩ
ACV	4 / 40 / 400 / 600V	±(1.6%+5)	0.001V	10M~11MΩ
DCA	40m / 400mA	±(2.2%+5)	0.01mA	-
ACA	40m / 400mA	±(2.8%+5)	0.01mA	-
Resistance	400 / 4k / 40k / 400k / 4M / 40M Ω	±(1.2%+5)	0.1 Ω	-
Capacitance	50n / 500n / 5 μ / 50 μ / 100 μF	±(5%+10)	0.01nF	-
Frequency	5Hz-100kHz	+(0.5%+3)	-	-
Duty cycle	20%-80%	+(0.5%+5)	-	-
Continuity	Buzzer sounds at between 10 Ω and 120 Ω Open voltage: Approx.0.4V

Functions:

	Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting.
	Low Power Ohm Ohm Resistance is measured by applying voltage of approximately 0.4V or less on a measuring object.
	Range Hold The range is fixed in the measurement of varying voltage and current which is difficult to read in the auto range.
	Frequency in Hertz Commercial frequencies of 50Hz/60Hz can be measured.
	Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc.
	Duty Cycle The duty cycle of repeating waveform is indicated on a percentage basis (%).
	Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes.
	Relative Value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0.
