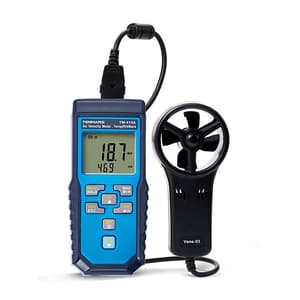

Tenmars 0.4 ~ 30 m/s Air Velocity Meter, TM-413A
Roll over image to zoom zoom_in
- Weight: 296 Grams
- Product Type: Anemometer
- Air Velocity Measurement (m/s): 0.4 ~ 30 m/s
- Air Flow Calculation: 0 ~ 9999 (CMM & CFM)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹12903.3 (Incl. of all taxes)
₹10935+ ₹1968.3 GST (18%)
7 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
TM-413A measures air speed, temperature and humidity. It is ideal for spot measurements at air outlets on account of its 30mm vane. In addition to air speed and temperature, it also measures air moisture and absolute pressure. In this way, air conditions can be reliably checked.
Features:
- Air flow calculates the function.
- Max/Min/Avg and data hold.
- Auto power off with disabled function.
- Memory recall function.
- Backlight function.
- Absolute Pressure Sensor
- Humidity Sensor
Functions:
- Velocity
- Flow
- 99 Record
- Temperature
- Humidity
Technical Data:
| Velocity | |||
| Unit | Range | Resolution | Accuracy |
| m/s | 0.4 ~ 30 | 0.1 | ≤10m/s ±(3.0+0.5) >10m/s ±(3.5%+1) |
| Km/hr(Kph) | 1.5 ~ 106 | 0.1 | ≤36Km/hr ±(3.0%+1.8) >36Km/hr ±(3.5%+3.6) |
| mph | 0.9 ~ 66 | 0.1 | ≤22mph ±(3.0%+1.1) >22mph ±(3.5%+2.2) |
| Knots(kts) | 0.8 ~ 58 | 0.1 | ≤19Knots ±(3.0%+1) >19Knots ±(3.5?+1.9) |
| ft/min(fpm) | 79 ~ 5866 | 1 | ≤2000ft/min ±(3.0%+100) >2000ft/min ±(3.5%+200) |
| Beaufort | 1 ~ 8 | 1 | -- |
| Air Flow Calculation | |||
| Unit | Range | Resolution | Accuracy |
| CMM | 0 ~ 9999 | 1 | -- |
| CFM | 0 ~ 9999 | 1 | -- |
| Temperature | |||
| Unit | Range | Resolution | Accuracy |
| °C | -20 ~ 60 | 0.1 | ±1°C |
| °F | -4 ~ 140 | 0.1 | ±1.8°F |
| Humidity | |||
| Unit | Range | Resolution | Accuracy @25°C |
| %RH | 20 ~ 80 | 0.1 | ±3.5%RH |
| %RH | <20, >80 | 0.1 | ±5%RH |
| Absolute Pressure | |||
| Unit | Range | Resolution | Accuracy |
| hPa | 350 ~ 1100 | 0.1 | ±2hPa |
| mmHg | 263 ~ 825 | 0.1 | ±1.5mm Hg |
| inHg | 10.3 ~ 32 | 0.1 | ±0.1 |
Package Content:
- 1x Air Velocity Meter
- 1x 9V battery
- 1x Probe
- 1x Bag
- User’s manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.NO.AN.00049 |
|---|---|
| Product Type | Anemometer |
| Model No | TM413A |
| Air Velocity Measurement (m/s) | 0.4 ~ 30 m/s |
| Air Flow Calculation | 0 ~ 9999 (CMM & CFM) |
| Temperature Measurement | -20 ~ 60°C (-4 ~ 140°F) |
| Humidity | 20 ~ 80%RH |
| Memory Capacity | 99 Records |
| High Sensitivity | 0.4m/s |
| Battery | 9 Volt battery |
| Battery Lift | Approx. Continuous Used 100 Hours |
| Shutoff Rate Power | 3µA |
| Operate Maximum Power | 25mA |
| Cable Length | 95 cm |
| Display Type | Monochrome LCD with Backlight |
| Display Size (W x L) | 42 x 33 mm |
| Instrument Dimensions (LxWxH) | 140 x 65 x 38 mm |
| Probe Dimensions (LxWxH) | 135 x 67 x 31 mm |
