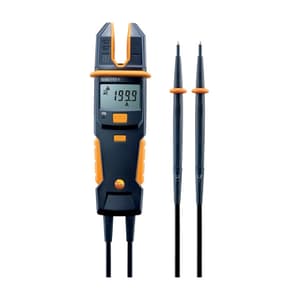

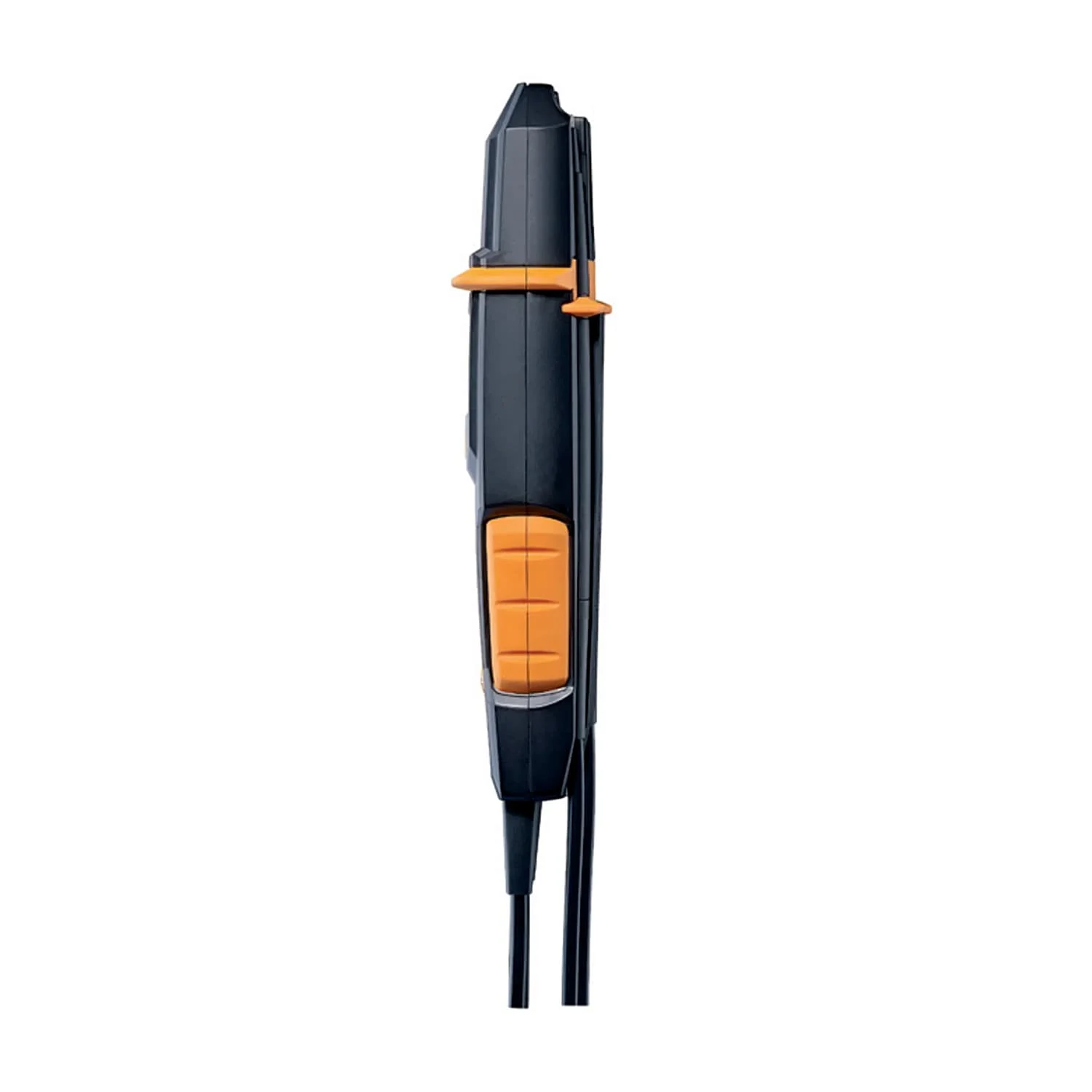

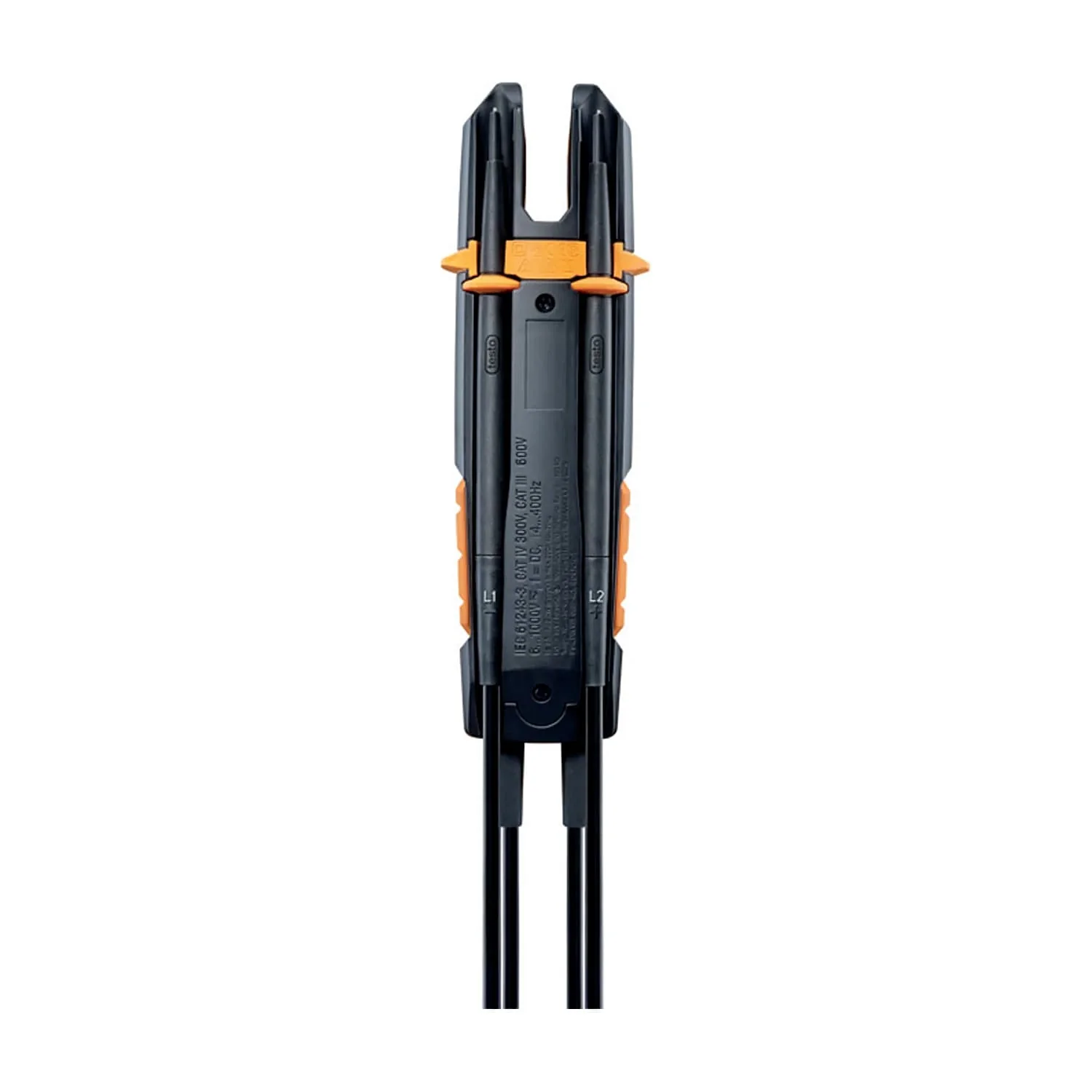

Testo 30 Ohm - 100 kOhm Electrical Tester, Testo 755-1

Shop all Testo

SKU: ME.EL.EL.00068

Model: TESTO755-1

Roll over image to zoom zoom_in
  1. Testo 30 Ohm - 100 kOhm Electrical Tester, Testo 755-1
  2. Testo 30 Ohm - 100 kOhm Electrical Tester, Testo 755-1
  3. Testo 30 Ohm - 100 kOhm Electrical Tester, Testo 755-1
  4. Testo 30 Ohm - 100 kOhm Electrical Tester, Testo 755-1
  5. Testo 30 Ohm - 100 kOhm Electrical Tester, Testo 755-1
  6. Testo 30 Ohm - 100 kOhm Electrical Tester, Testo 755-1
Video

  • Weight: 320 Grams
  • Product Type: Electrical Testers
  • Voltage Range (AC/DC): 6 - 600V
  • Current Range (AC): 0.1 to 200A
  • Resistance Range (Ohm): 30 Ohm - 100 kOhm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

16750.1 (Incl. of all taxes)

14195+ ₹2555.1 GST (18%)

MRP ₹16700

SAVE 15%



3 Business Days

1 Pcs

90303310

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

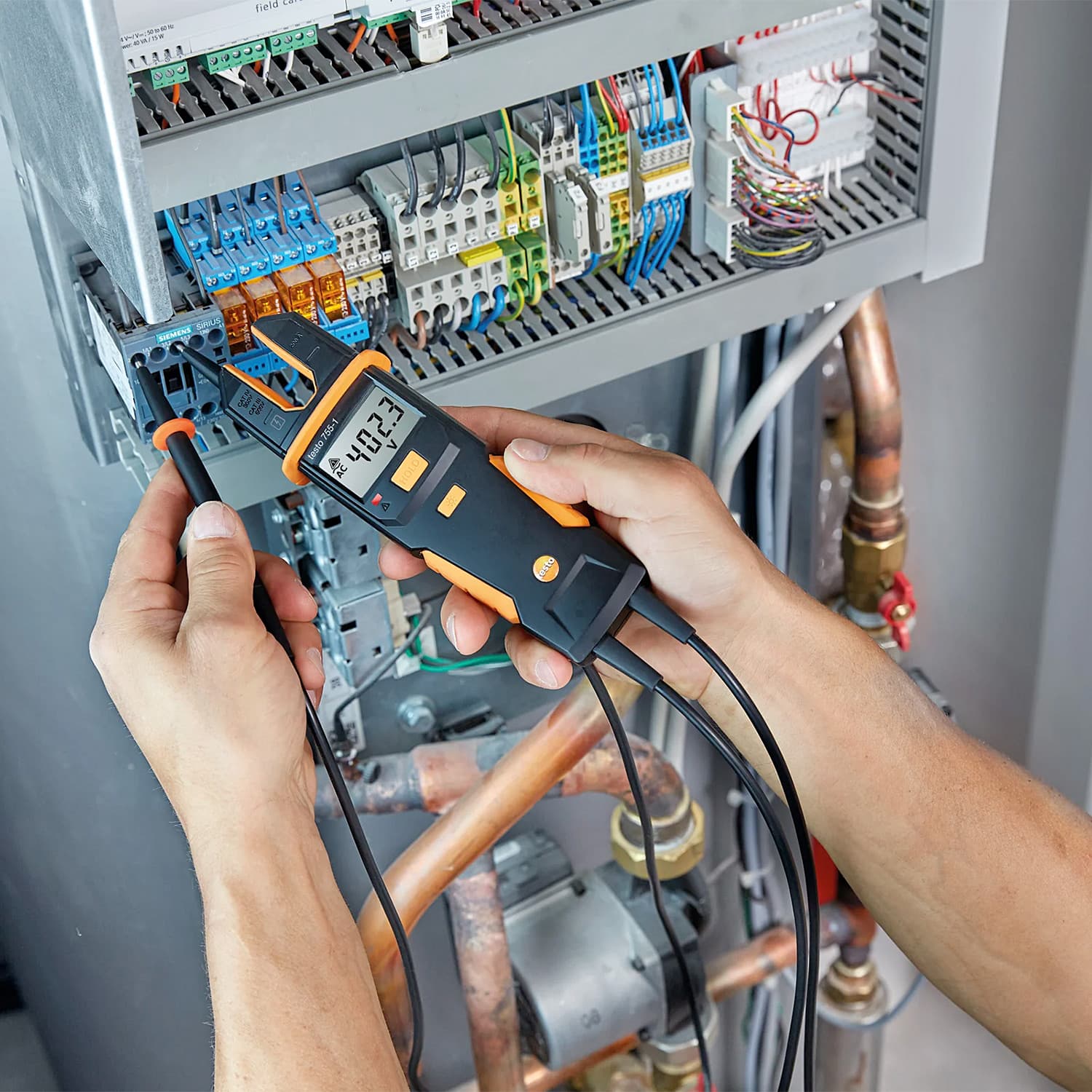

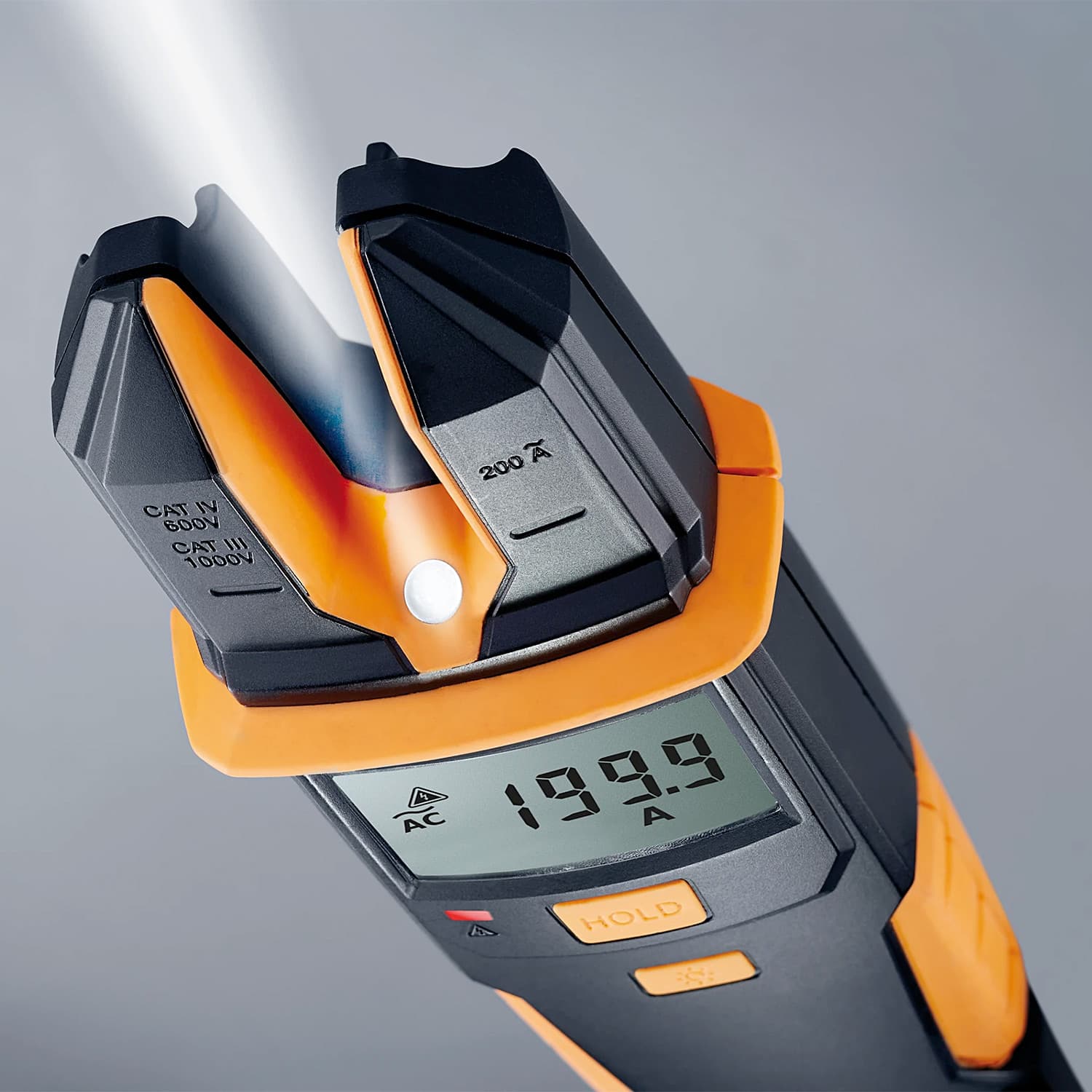

The first voltage tester with current measurement is here: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure flow of current or current consumption and carry out continuity tests using a single instrument. In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring – without any switching on or selection. The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points. The testo 755-1 current/voltage tester is a genuine allrounder which will make your day-to-day work easier.


Features:

  • Continuity Testing, Display Lighting, Hold, Measuring Point Illumination, Autom. Measurement Parameter Detection
  • Easy, reliable operation through automatic measurement parameter detection
  • DIN EN 61243-3:2014 and DIN EN 61010-1:2011 certified
  • Exchangeable measuring tips
  • Suitable for almost all electrical measuring tasks


Accuracy:

  • AC/DC Voltage: 50 to 600.0 V: ± (1.5 % of mv + 3 Digits) / 6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
  • AC Current: ± (3% of mv + 3 Digits)
  • Resistance: ± (1 % of mv + 5 Digits)

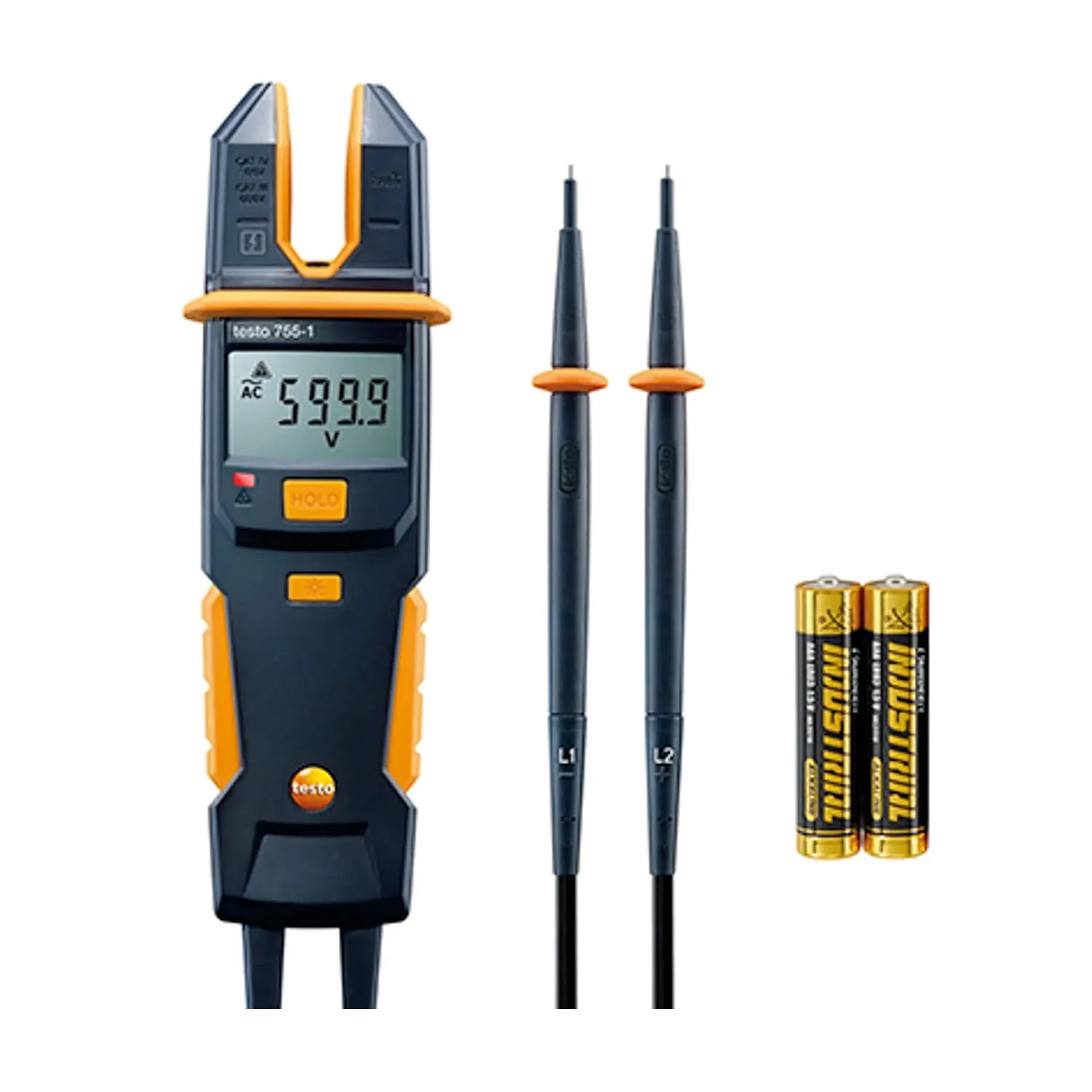

Package Content:

  • 1x current/voltage tester
  • 2x AAA micro batteries
  • Measuring tips
  • Measuring tip caps
  • Calibration protocol
  • Instruction manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.EL.00068
Product TypeElectrical Testers
Model NoTESTO755-1
Voltage Range (AC/DC) 6 - 600V
Current Range (AC) 0.1 to 200A
Resistance Range (Ohm) 30 Ohm - 100 kOhm
Resolution 0.1V (AC/DC Voltage) / 0.1A (AC Current)
Operating Humidity 0 to 75%RH
Operating Temperature -10 to +50°C
Storage Temperature -15 to +60°C
Protection Class IP64
Display Count 4000
Standards EN 61243-3; EN 61010-1
Power Supply 2 AAA Micro Batteries
Display Size One-line
Display Type LCD
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE
Dimensions (mm) 199 x 62 x 40 mm
