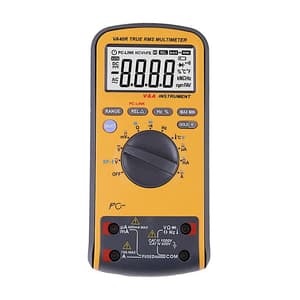

This digital multimeter with RMS function complies with IEC 1010-1 (61010-1@IEC: 2001), CAT. II 1000V and CAT. III 600V over-voltage standards.

Features:

• Auto/Manual Range
• NCV Function
• Max measurement
• Backlight
• DATA HOLD mode
• Manual ranging and Autorange mode
• Battery Saver
• Relative measurement mode
• TRUE RMS measurement
• AC and DC Voltage measurement
• Resistance measurement
• Diode Test
• Continuity Check
• Capacitance measurement
• Frequency and Duty Cycle measurement
• Temperature measurement
• Current measurement
• PC Link
• USB port connect to PC
• Low power indication
• Auto power off
• Low battery detect
• Max. Voltage between terminals and earth ground: 1000V AC rms or 1000V DC.
• Fuse Protection: F 0.63A/1000V ∅10.3×38 (A & mA); F 10A/1000V ∅10.3×38 (A)
• Automatic indication of functions and symbols
• Low battery indication: The “” is displayed when the battery is under the proper operation range.

Application:

• With Functions of TRUE RMS measurement, Voltage measurement, Current measurement, Resistance measurement, Diode and continuity Test, Temperature measurement, Capacitance measurement, Relative measurement, Manual and Auto Range, PC link,
• This digital multimeter is ideal for use in the fields, workshop, school, hobby & home applications.

General Maintenance:

• Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents.
• Dirt or moisture in the terminals can affect readings.
• Turn the meter off and remove all test leads.
• Shake out any dirt that may be in the terminals.
• Soak a new swab with a cleaning and oiling agent (such as VA-40).
• Work the swab around in each terminal. The oiling agent insulates the terminals from moisture-related contamination.

Package Content:

• 1x Digital Multimeter
• 1x User’s Manual
• 1x Test leads
• 1x ”K” Type Thermocouple
• 1x Multi-function socket
• 1x USB line
• 1x PC-Link software CD
