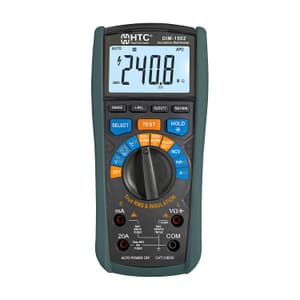

HTC 3-5/6 Digit / 5999 Count Digital Insulation Multimeter, DIM-1502
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 480 g
- Display Digits: 3-5/6 Digits
- Display Counts: 5999 Count
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,479 (Incl. of all taxes)
₹2,948 + ₹531 GST (18%)
MRP was MRP ₹3,685
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- True Rms
- Insulation Resistance
- Duty Cycle
- Data Hold
- Dual Integral A/D Conversion Integrated Circuit

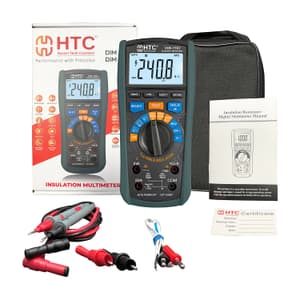

Package Content:
- Test Lead
- Shockproof Cover
- Carry Case
- TP01 Temperature Probe
- Manual & Battery
DC Voltage:
| Range | Resolution | Accuracy |
| 600mV | 0.1 mV |
±(0.5%+5 digits) |
| 6V | 1mV | |
| 60V | 10mV | |
| 600V | 100mV | |
| 1000V | 1V | ±(1.0%+5 digits) |
AC Voltage (True RMS):
| Range | Resolution | Accuracy |
| 6V | 1mV | ±(0.8%+10 digits) |
| 60V | 10mV |
±(1.0%+10 digits) |
| 600V | 100mV | |
| 750V | 1V |
Resistance:
| Range | Resolution | Accuracy |
| 600Ω | 0.1Ω | ±(0.8%+5 digits) |
| 6kΩ | 1Ω |
±(0.8%+2 digits) |
| 60kΩ | 10Ω | |
| 600kΩ | 100Ω | |
| 6MΩ | 1kΩ | ±(1.2%+5 digits) |
| 60MΩ | 10kΩ |
DC Current:
| Range | Resolution | Accuracy |
| 6mA | 1µA |
±(1.0%+5 digits) |
| 60mA | 10µA | |
| 600mA | 100µA | |
| 6A | 1mA | |
| 20A | 10mA | ±(2.0%+5 digits) |
AC Current:
| Range | Resolution | Accuracy |
| 6mA | 1µA |
±(1.5%+5 digits) |
| 60mA | 10µA | |
| 600mA | 100µA | |
| 6A | 1mA | |
| 20A | 10mA | ±(2.0%+5 digits) |
Temperature:
| Range | Resolution | Accuracy |
| (-40~1000)ºC | <400ºC± (1% +5 digits) | 1ºC |
| >400ºC± (1% +5 digits) | ||
| (0~1832)ºF | <750ºF± (1% +5 digits) | 1ºF |
| >750ºF± (1% +5 digits) |
Frequency:
| Range | Resolution | Accuracy |
| 50kHz | Switch to display ACV | ±(0.5%+4 digits) |
Insulation Resistance Testing:
| Range | Test Conditions | Accuracy |
| 300MΩ | 250V | ±(4%+2 digits) |
| 500MΩ | 500V | |
| 2000MΩ | 1000MΩ |
Capacitance:
| Range | Resolution | Accuracy |
| 60nF | 10pF | ±(2.5%+6 digits) |
| 600nF | 100pF | ±(2.5%+5 digits) |
| 6µF | 1nF | |
| 60µF | 10nF | |
| 600µF | 100nF | ±(5.0%+8 digits) |
| 6mF | 1µF | |
| 60mF | 10µF |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digits | 3-5/6 Digits |
|---|---|
| Display Counts | 5999 Count |
| Dimension (HxWxD) | 200 x 92 x 50 mm |
