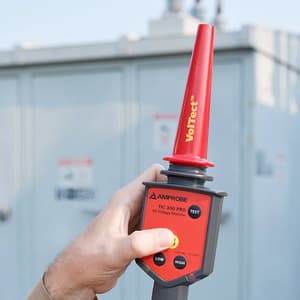

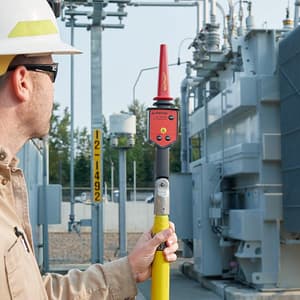

Amprobe 1500V / 122 kV AC Pro High Voltage Detector, TIC 300

Shop all Amprobe

SKU: ME.NO.DE.00009

Model: TIC300

Roll over image to zoom zoom_in
  1. Amprobe 1500V / 122 kV AC Pro High Voltage Detector, TIC 300
  2. Amprobe 1500V / 122 kV AC Pro High Voltage Detector, TIC 300
  3. Amprobe 1500V / 122 kV AC Pro High Voltage Detector, TIC 300
  4. Amprobe 1500V / 122 kV AC Pro High Voltage Detector, TIC 300
  5. Amprobe 1500V / 122 kV AC Pro High Voltage Detector, TIC 300

  • Product Type: Detectors
  • Storage Temperature: 32 °F to 125 °F; battery removed
  • Response Time: Instantaneous
  • Frequency Response: 50/60 Hz
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

39128.8 (Incl. of all taxes)

33160+ ₹5968.8 GST (18%)

MRP ₹48765

SAVE 32%



12 Business Days

1 Set

90221900

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

MSHA certified and intrinsically safe, the Amprobe TIC 300 PRO High Voltage Detector with VolTect™ alert is a rugged, reliable, non-contact, high voltage tester for utility, industrial, and mine safety applications up to 122kV. Select low or high voltage levels to verify the presence of voltage without contacting the energized conductor.

When this high voltage electricity tester is moved within close proximity of an energized line, the intuitive VolTect™ alert warns users with bright flashing lights and loud beeps. All functionality is available through push buttons designed for easy use with PPE gloves. A universal adapter Hot Stick TIC 410A is available for voltage higher than 1500 VAC.


Features:

  • Verifies presence of voltage from 30 VAC to 122,000 VAC (122 kV) without contacting the conductor
  • Simple two-level electricity tester provides:
  • High voltage (1,500 V to 122 kV AC) setting to check transmission lines, power distribution equipment, down power lines, and load break connectors
  • Low voltage (30 to 1,500 V AC) setting to check for voltage in breaker panels, breakers, power outlets, fuses, and wiring
  • VolTect™ alert warns that voltage is present with bright flashing lights and loud beeps
  • Push-button self-test verifies that tester is working properly

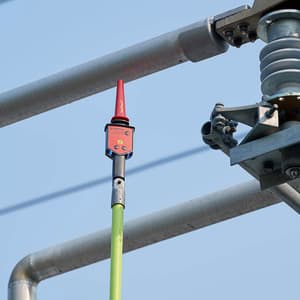

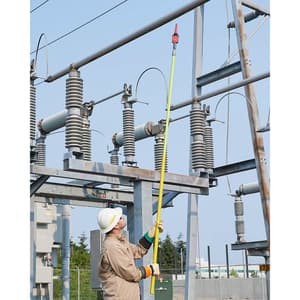

  • Ergonomic design includes a convenient handle and a universal adapter for use with TIC 410A Hot Stick attachment to extend the reach
  • Drop-proof to 6 feet (1.8 m)

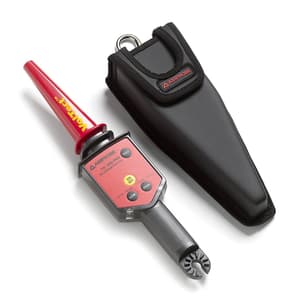

What's Included In This Package:

  • TIC 300 PRO
  • Hard carrying case
  • 9 V battery (installed)


Specifications:

Operating VoltageLOW Range: 30 to 1500 VAC
HIGH Range: 1500 VAC to 122 kV AC
*Use only with Amprobe optional accessory hot stick and proper safety equipment for voltages up to 122 kV AC

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.DE.00009
Product TypeDetectors
Model NoTIC300
Operating Temperature 32 °F to 125 °F; < 90% RH
Storage Temperature 32 °F to 125 °F; battery removed
Environment < 2000 m, outdoor operation
Power 9 V alkaline battery
Power Consumption OFF: 340uA Low / High Detection mode: 39 mA
Duty Cycle Continuous
Response Time Instantaneous
Frequency Response 50/60 Hz
