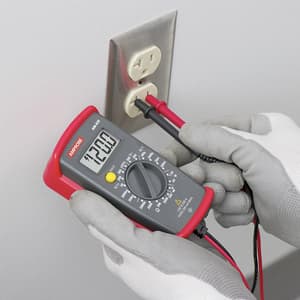

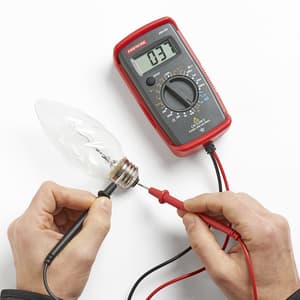

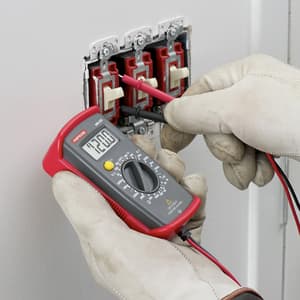

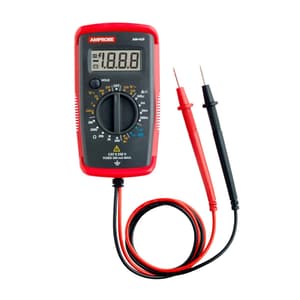

Designed for in-home repair and electrical testing applications, the AM-420 Digital Multimeter accurately measures the voltage in receptacles, switches, extension cords and light fixtures. Use the continuity function to easily troubleshoot light bulbs and fuses. This compact tool is designed for in-home repair and electrical testing applications, including measuring the presence of voltage in electrical sockets, extension cords, batteries and other electrical circuits up to 250 V.

It is a must-have tool for residential projects including installation, troubleshooting or repair of light fixtures, fans or appliances. DC ranges of voltage and current are included to help with automotive diagnostics of electrical systems. The battery test feature checks the amount of charge remaining in standard 1.5 V and 9 V batteries.

Features:

• Test leads installed
• Measures AC/DC voltage
• Measures DC current
• Measures resistance
• Audible continuity alert
• Rated to CAT II 250 V
• Diode testing.

What's Included In This Package:

• AM-420
• 9V alkaline battery (installed)

Specifications:

Feature	AM-420	Best Accuracy
AC Voltage	200.0 / 300 V	+/-(1.5% rdg + 4 LSD) @ 45 Hz to 400 Hz, 2 V to 200 V
DC Voltage	200 mV 2.000 / 20.00 / 200.0 / 250 V	+/-(1.2% rdg + 2 LSD) @ 200 mV to 200 V
DC Current	200.0 µA 2.000 / 20.00 / 200.0 mA	+/-(1.2% rdg + 5 LSD) @ 200 µA to 20 mA
Resistance	200.0 Ω 2.000 / 20.00 / 200.0 kΩ	+/-(1.5% rdg + 5 LSD) @ 200 Ω to 200 kΩ
Continuity	Yes
Diode Test	Yes
Battery test	1.5 V, 9 V	+/-(5.0% rdg + 1 LSD)
Data Hold	Yes



General Specifications:

Maximum display	1999, updates 2 to 3/sec
Range	Manual-ranging
Operating temperature	32°F to 104°F (0°C to +40°C)
Relative humidity	32°F to 86°F (0°C to +30°C) ≤75%; 86°F to 104°F (+30°C to +40°C) ≤50%
Pollution degree	2
Operating altitude	≤ 6561 ft (2000 m)
Storage temperature	14°F to 122°F (-10°C to +50°C)
Electromagnetic compatibility	In an RF filed of 1V/m = Specified accuracy ± 5%. RF field > 1V/m is not specified.
Over-range indication	” 1 “, “-1” or maximum display reading
Battery	One 9V alkaline battery (6LF22, 6LR61, MN1604) or equivalent
Battery life	Alkaline: 100 hours typical
Low battery indication	Safety Certifications
Overvoltage Category	CAT II 250V
Safety Compliance	IEC 61010-1, UL 61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010-1-04 Update No.1:2008
EMC Compliance	Conforms to IEC 61326-1
Certification	Safety Certifications
Dimensions (L x W x H)	4.5 x 2.6 x 1.6 in (115 x 65 x 40 mm)
