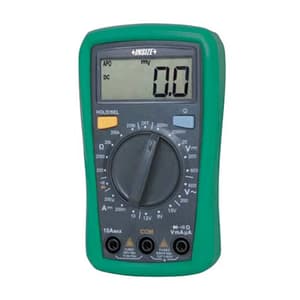

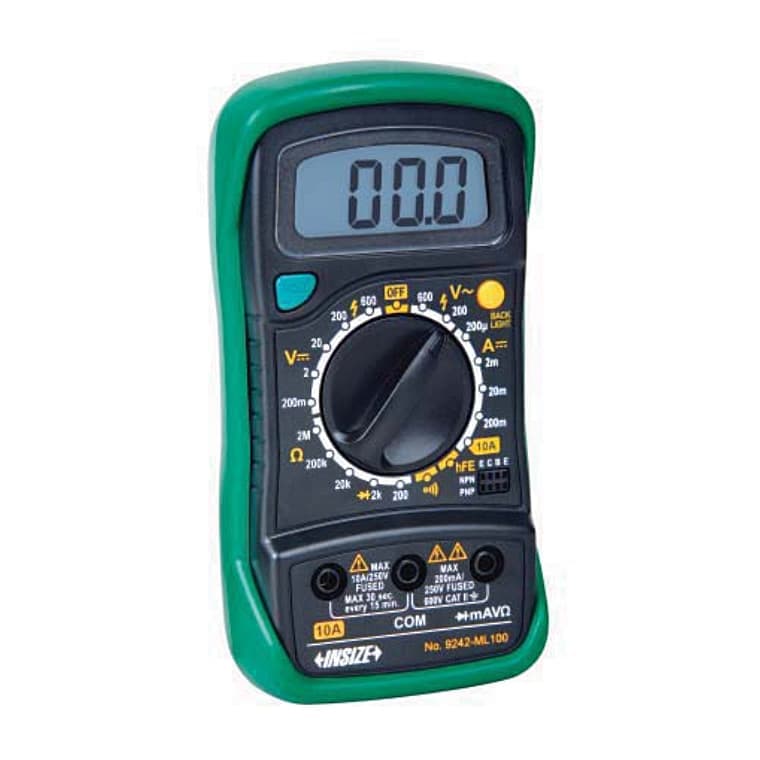

Insize 1999 Counts Mini Digital Multimeter (Basic Type), 9242-ML100A
Roll over image to zoom zoom_in
- Weight: 206 Grams
- Product Type: Multimeter
- Display Counts: 1999 Counts
- Continuity Test: <50 ohm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹1216.58 (Incl. of all taxes)
₹1031+ ₹185.58 GST (18%)
MRP ₹1982
SAVE 48%
3 Business Days
1 Pcs
9030
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Portable size with protective case
- Data hold
- Display with backlight
- Low battery indication
- Auto power-off
- Safety rating: CAT | 600V
Specification:
| Function | Range | Resolution | Accuracy ("d" is the least Reading) |
| DC Voltage | 200.0mV | 0.1mV | ±(0.7%+3d) |
| 2000mV | 1mV | ±(0.5%+2d) | |
| 20.00V / 200.0V / 600V | 0.01V / 0.1V / 1V | ±(0.7%+3d) | |
| AC Voltage (40 ~ 400Hz) | 200.0V / 600V | 0.1V / 1V | ±(1.2%+3d) |
| DC Current | 200.0µA / 200.0mA | 0.1µA / 0.1mA | ±(1.0%+2d) |
| 10.00A | 0.01A | ±(1.2%+5d) | |
| Resistance | 200.0 ohm | 0.1 ohm | ±(1.0%+2d) |
| 2000 ohm / 20.00K ohm / 200.0k ohm | 1 ohm/0.01k ohm/0.1k ohm | ±(0.8%+2d) | |
| 20.00M ohm | 0.01M ohm | ±(1.2%+3d) |
Standard Delivery:
| Main unit | 1 pc |

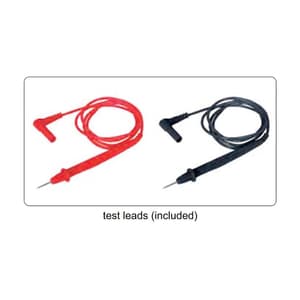

| Test Lead | 2 pcs |
| AAA battery | 2 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00180 |
|---|---|
| Product Type | Multimeter |
| Model No | 9242-ML100A |
| Display Counts | 1999 Counts |
| Battery Test | 1.5V / 9V / 12V Battery Check |
| Diode Test | 2.1V DC (Open Circuit Voltage) |
| Continuity Test | <50 ohm |
| Power Supply | 2 x 1.5V AAA Batteries |
| Dimension (mm) | 134 x 77 x 47 mm |
