Hioki 4.199 V - 600 V AC Clamp On AC/DC HiTester (True-RMS), 3287

Shop all Hioki

SKU: ME.EL.CL.00046

Model: 3287

Roll over image to zoom zoom_in

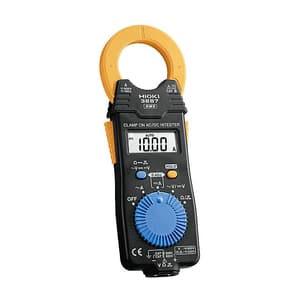

  1. Hioki 4.199 V - 600 V AC Clamp On AC/DC HiTester (True-RMS), 3287
Video

  • Weight: 170 Grams
  • Product Type: Clamp Meters
  • DC Current range: 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
  • Core jaw dia.: 35 mm (1.38 in)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

22707.92 (Incl. of all taxes)

19244+ ₹3463.92 GST (18%)

MRP ₹24055

SAVE 20%



5 Business Days

1 Pcs

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

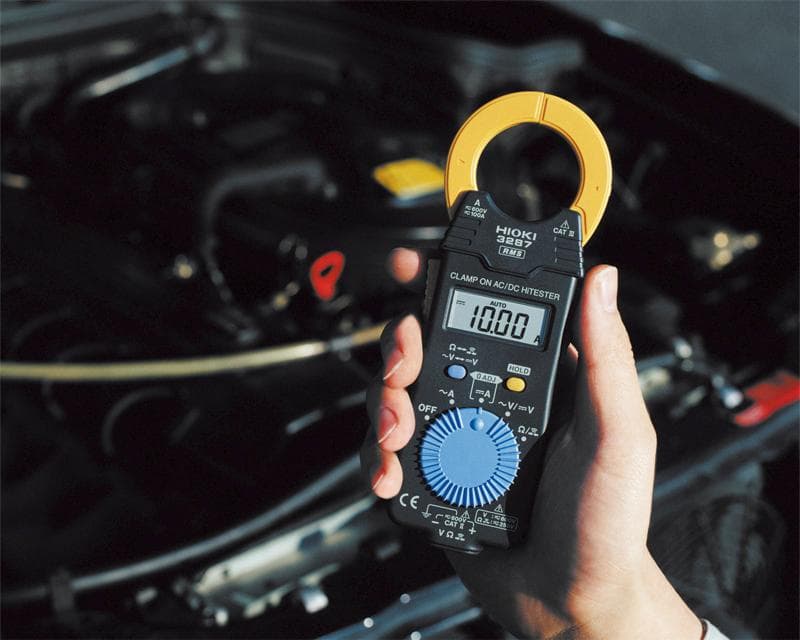

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki 3287 is an AC/DC current and voltage clamp meter that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.

  • CAT III 600 V (Current)
  • CAT III 300 V (Voltage)
  • CAT II 600 V (Voltage)


Key Features:

  • Accurately measure even small currents with 10 A range
  • Voltage, resistance, and continuity check function


What's Included In This Package:

  • 1x Coin type lithium battery (CR2032)
  • 1x Carrying case 9398
  • 1x Test lead L9208
  • 1x Instruction manual


Compact & Easy

The 3287 performs accurate measurements of even small currents in the AC/DC 10.00 A range. In AC mode it also guarantees accuracy of true RMS measurements for frequencies from 10 Hz to 1 kHz. Handles low frequency to distorted currents including higher harmonics, simplifying maintenance of energy-saving equipment up to a maximum of 100 A.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.CL.00046
Product TypeClamp Meters
Model No3287
DC Current range 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS) Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS) Basic accuracy: ±2.3 % rdg. ±8 dgt.
Resistance range 419.9 O to 41.99 MO, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt
Crest factor 2.5 or less (150 A, 1000 V max.)
Other functions Continuity: (50 O ±40 O) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 25 hours
Core jaw dia. 35 mm (1.38 in)
Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz)
