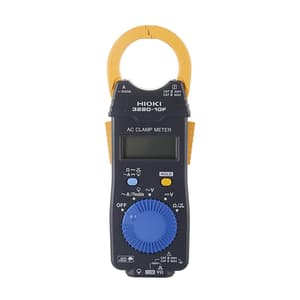

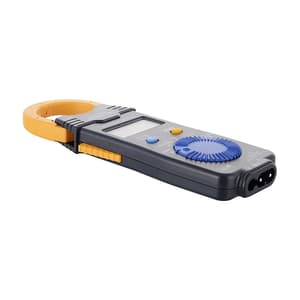

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

Using 3280 series AC clamp meters: Introduction to functionality and measurement methods

In addition to AC current measurement, these clamp meters provide voltage and resistance measurement as well as continuity check functionality. Their compact size, low-profile design, and resistance to both rough handling and extreme temperatures make them essential tools for any electrician.

Using 3280 series AC clamp meters: Difference between mean value and true RMS measurement

Measurements taken with the Hioki 3280-10F (which uses the mean value method) and the the Hioki 3280-20F (which uses the true RMS method) are compared. Observe the difference between readings from these two types of instruments when measuring a distorted waveform that contains harmonic components such as those produced by inverters and switching power supplies.

• CAT IV 300 V (Current)
• CAT III 600 V (Current)
• CAT III 300 V (Voltage)
• CAT II 600 V (Voltage)

Key Features:

• Measure the fundamental waveform component using the average rectified method
• Expanded -25°C to 65°C operating temperature range
• Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
• Drop proof design withstands drop from a height of 1 meter

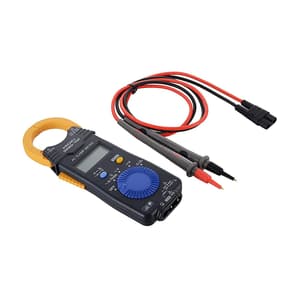

What's Included In This Package:

• 1x Coin type lithium battery (CR2032)
• 1x Carrying case 9398
• 1x Test lead L9208
• 1x Instruction manual

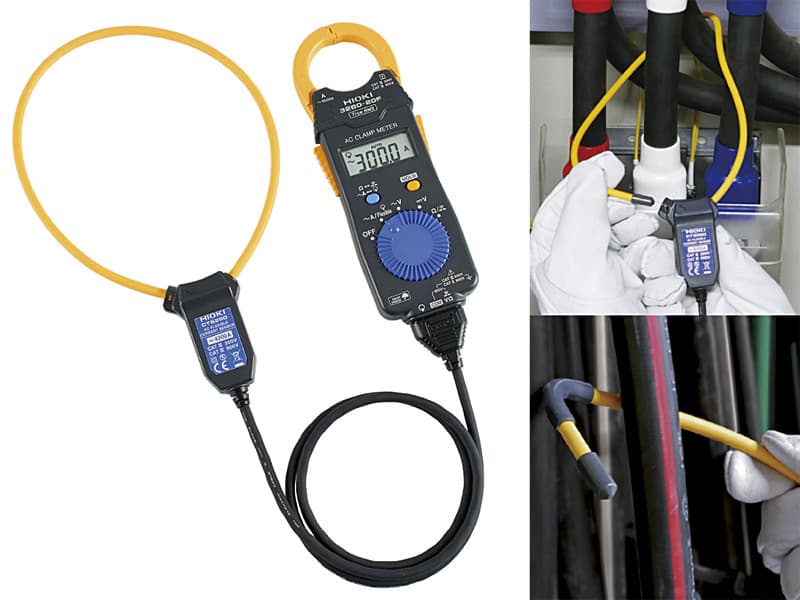

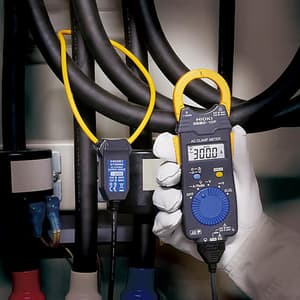

A pocket clamp meter that can use flexible sensors When connected to an optional flexible current sensor, the 3280-10F can be used to measure the current flowing in pairs of wires or in tangled or complexly routed wires around which it was not possible to apply a clamp-on sensor in the past.

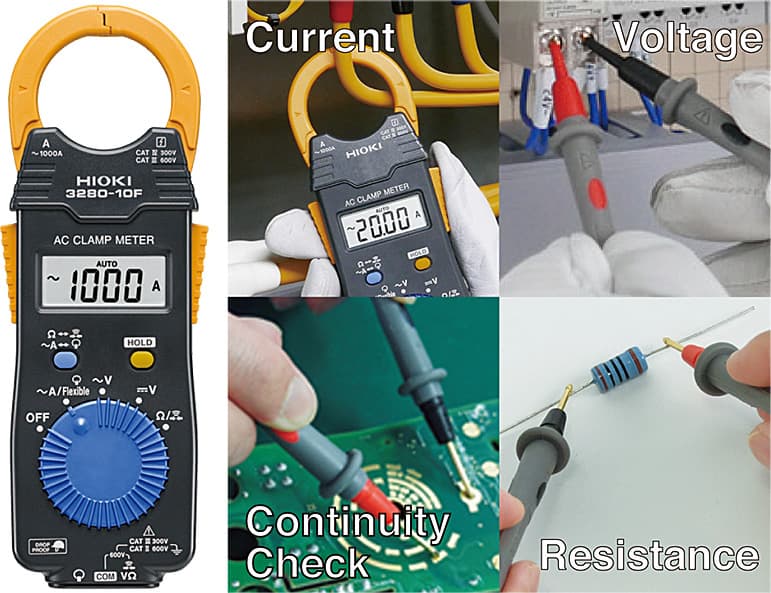

Essential for electrical work: A thin card tester that fits in the pocket with all the capabilities of a clamp meter The 3280-10F delivers all the functionality of a clamp meter and card tester in the form factor of the latter. In addition to current measurement, this single instrument delivers voltage measurement, continuity check, and resistance measurement functionality.

A tough, pocket-size clamp meter with an operating temperature range of -25°C to 65°C The 3280-10F inherits the drop-proof durability of the previous 3280-10 (making it able to withstand being dropped onto concrete from a height of 1 m) and expands that instrument’s operating temperature range to -25°C to 65°C (from the previous 0°C to 40°C). As a result, it can be used in even harsher environments.
