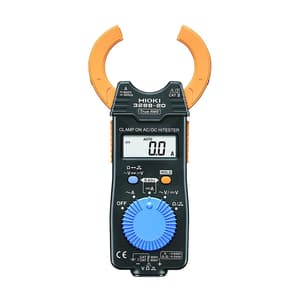

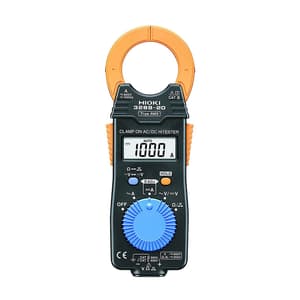

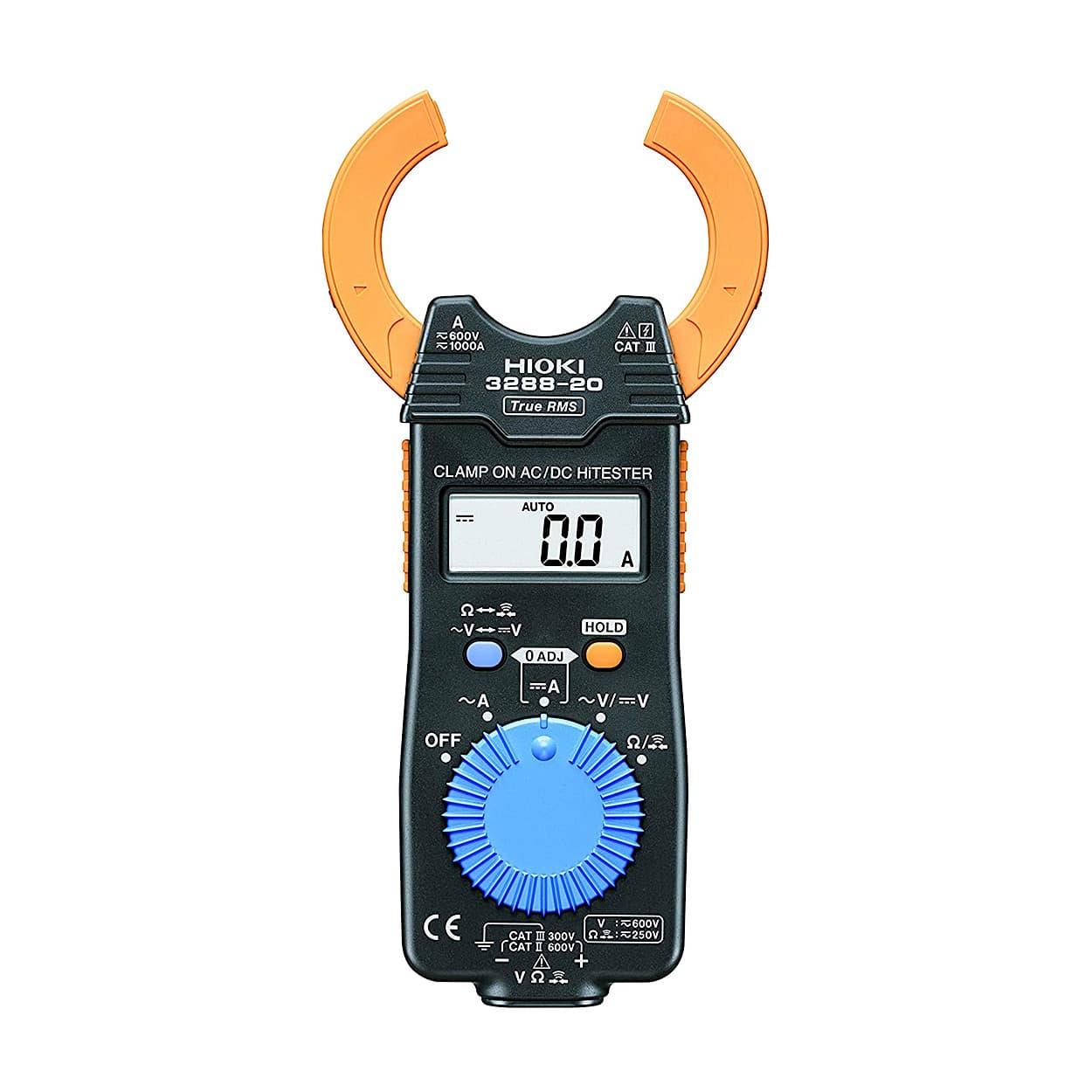

Hioki 419.9 mV - 600 V AC Clamp On AC/DC HiTester (True-RMS), 3288-20

Shop all Hioki

SKU: ME.EL.CL.00045

Model: 3288-20

Roll over image to zoom zoom_in
  1. Hioki 419.9 mV - 600 V AC Clamp On AC/DC HiTester (True-RMS), 3288-20
  2. Hioki 419.9 mV - 600 V AC Clamp On AC/DC HiTester (True-RMS), 3288-20
Video
Visit Hioki Store keyboard_double_arrow_right
  • Weight: 150 Grams
  • Product Type: Clamp Meters
  • DC Current range: 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
  • Core jaw dia.: f 35 mm (1.38 in)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹14460.9 (Incl. of all taxes)

₹12255+ ₹2205.9 GST (18%)

MRP ₹15319

SAVE 20%

5 Business Days

1 Pcs

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.

  • CAT III 600 V (Current)
  • CAT III 300 V (Voltage)
  • CAT II 600 V (Voltage)


Key Features:

  • Voltage, resistance, and continuity check functions

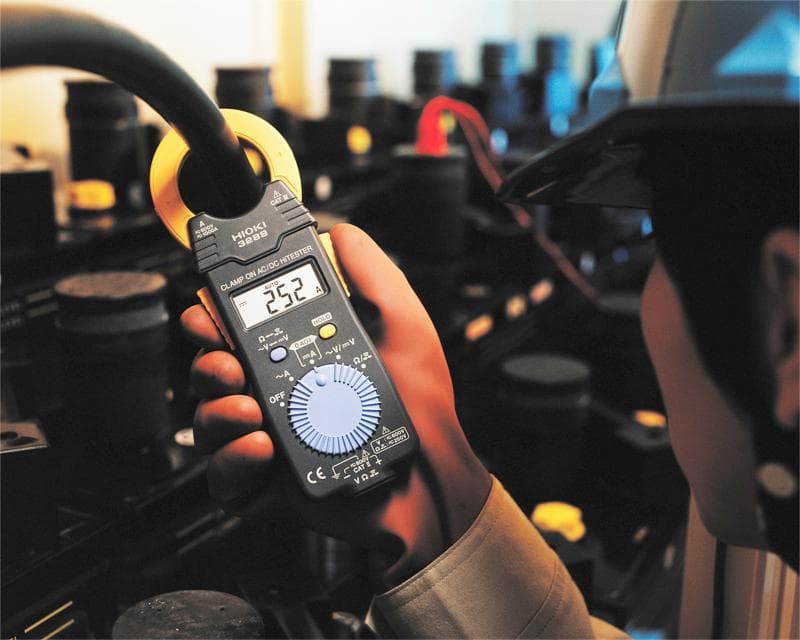

  • Use the 3288 for high current measurements such as UPS emergency batteries and train motors


What's Included In This Package:

  • 1x Coin type lithium battery (CR2032)
  • 1x Carrying case 9398
  • 1x Test lead L9208
  • 1x Instruction manual


Compact & Easy

Multi-function clamp that simplifies equipment diagnosis. Besides AC/DC current measurement, it also contains DMM functions for voltage, resistance, and continuity checking.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.CL.00045
Product TypeClamp Meters
Model No3288-20
DC Current range 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range 100.0/ 1000 A, (10 Hz to 500 Hz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range 4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, True RMS)
Resistance range 419.9 O to 41.99 MO, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Crest factor 3 or less (2 at 1000 A range, 1.5 at Voltage)
Other functions Continuity: (50 O ±40 O) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 35 hours
Core jaw dia. f 35 mm (1.38 in)
Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)
