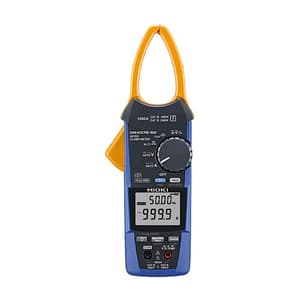

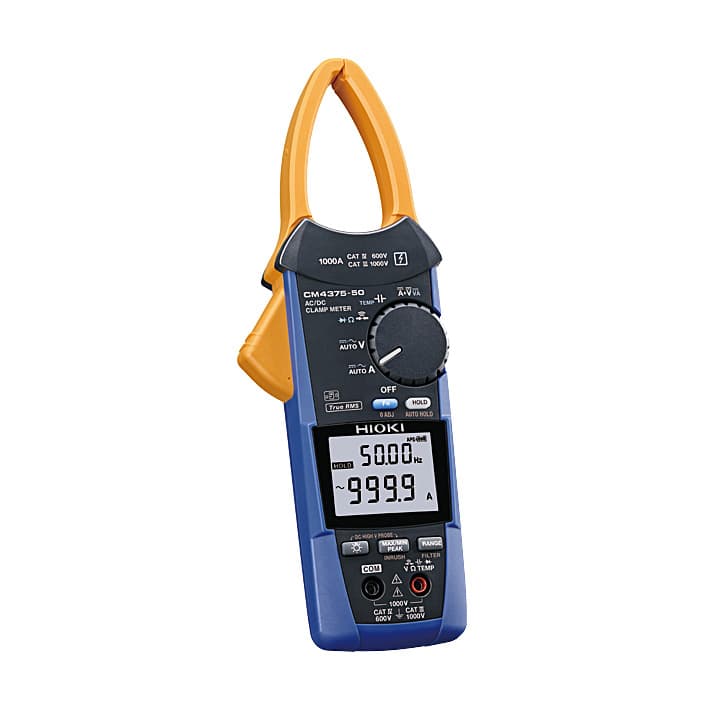

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4375-50 is a 1000 A AC/DC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter.

The broad IP54 dustproof and waterproof enclosure to enable professionals to work quickly in challenging situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 2000 V (*1) is ideal for the clamp maintenance inspections of electrical and solar power equipment.

Key Features:

• CAT IV 600 V, CAT III 1000 V
• When using P2000: CAT III 2000 V, CAT IV 1000 V
• Easily get into tight spaces between cables thanks to thin sensor structure
• Measure DC voltages of up to 2000 V (*1) for open voltage inspections of solar panels
• Automatic AC/DC function helps boost work efficiency, Measure up to 1000 A
• Simultaneously measure inrush current in RMS and crest values
• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (*2)
• Harmonic analysis from 1st to 30th order with GENNECT Cross (*2
• Note: When using the optional DC High Voltage Probe P2000. The clamp meter itself is capable of measuring up to 1000 V DC. / Wireless Adapter Z3210 (not Included) is necessary.
• Uncompromising Design: Innovative jaw provides remarkable accessibility: Panel overcrowding is commonly found in many power distribution breakers and termination boxes. The newly designed thin sensor gets into even the most limited spaces. Eliminate the issues of trying to find the right wire or forcing the clamp around thick cables.
• Excel® Direct Input Function: Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel®.
• Stop worrying about losing test lead caps: Test Lead L9300 incorporate integrated caps for greater convenience and safety. The design lets you change the measurement category simply by sliding the test lead’s protective finger guard. You no longer have to worry about losing caps!
• Easy! Just connect the Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready: Wirelessly connect Hioki-compliant instruments with a simple connection. Transfer measurements to your smartphone or tablet and quickly create reports with field photos and drawings.



Other functions	Continuity check, Diode check, Automatic AC/ DC detection, DC current and DC voltage polarity detection function, MAX/MIN/AVG/ PEAK MAX/PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Backlight, Auto power save, Buzzer sound, Zero-adjustment
Power supply	LR03 Alkaline battery ×2 Continuous use: approx. 40 hr (without Z3210 installed), approx. 20 hr. (with Z3210 installed and using wireless communications) Other conditions: 100 A AC measurement, backlight off, 23°C reference value



What's Included In This Package:

• 1x Test Lead L9300
• 1x Carrying Case C0203
• 1x Operating Precautions
• 2x LR03 Alkaline battery
• 2x Instruction manual



Safe inspection of solar installations with high voltage DC High V Probe Mode: Enables high voltage measurement up to CAT III 2000 V. Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2000 to compatible Hioki clamp meters and digital multimeters (DMMs)

Wireless communication capability for even greater convenience Wireless support: When the Wireless Adapter Z3210 is installed, Bluetooth® wireless communication is enabled. It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

Helping personnel analyze issues in the field Harmonic measurement: When combined with GENNECT Cross (*2), you can perform simple harmonic analysis. Applications include problem analysis of power supply systems. Problems that can be caused by harmonics: Equipment burn-out and destruction due to overheating Malfunctions of power control devices Increased loss along with reduced service life and efficiency for power devices GENNECT Cross is an free app that lets you connect field measuring instruments to smartphones and tablets using Bluetooth® communications. Wireless Adapter Z3210 (sold separately) is required in order to pair the instrument with GENNECT Cross.

Damage-resistant jaws! Guaranteed for 30,000 open-close cycles The new and improved design features stronger jaws (the current sensor portion of the instrument) and a dramatic boost in the duration of the warranty from 10,000 to 30,000 open-close cycles to ensure the instrument will provide even more years of reliable use. The CM4375siries deliver the dual functionality of ease of clamping and resistance to damage.

Inrush (Rush current): Assess transient currents at motor startup Can simultaneously measure inrush current in RMS as well as maximum crest values at motor startup and for welding currents. The clamp meters automatically detect the duration of the inrush current (which can range from several dozen milliseconds to several hundred milliseconds) and measure the current during that interval, enabling them to yield more accurate measurements than standard clamp-on meters whose measurement interval is fixed to 100 ms. Use the inrush current feature for motor installation and maintenance to prevent circuit breakers from tripping, especially with high efficiency motors that have inrush current many times greater than the steady-state current of the motor.
