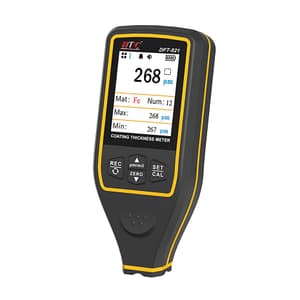

HTC 0 - 1700 Mtr Ultrasonic Thickness Gauge, DFT-821
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Screen: 2 Inches Color Screen
- Memory: 8 Groups & Each 32 Sets Of Data
- Data Export: USB port connecting PC to export
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,971 (Incl. of all taxes)
₹5,060 + ₹911 GST (18%)
MRP was MRP ₹6,325
Save 20%
5 Business Days
1
90318000
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 2 Inches Color Screen.
- Rotatable Screen with four direction.
- Built-in 850mAh Lithium battery.
- USB port connecting PC to export data.
- Voice broadcast.
- Data grouping, 8 groups and each 32 sets of data.
- Calibrated data grouping, corresponding to calibrating 8 groups of base-metal.
- On-screen shows directly the thickness of the cover and the material of the base-metal.
Technical Data:
| Measuring range | Magnetic material 0~1700 m; Non magnetic material 0~1700 m |
| Resolution | 0.1 m @ (0~99.9 m); 1 m @ (100~1700 m) |
| Indication error | ±(2+2%*H) m @ (0~500 m) ±(2.5%*H) m @ (500~1700 m) |
| Min measuring area | Magnetic material 25×25mm; Non magnetic material 25×25mm |
| Min curvature | Convexity 5mm; concave 30mm |
| Min substrate thickness | Magnetic material 0.2mm; Non magnetic material 0.05mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Screen | 2 Inches Color Screen |
|---|---|
| Memory | 8 Groups & Each 32 Sets Of Data |
| Data Export | USB port connecting PC to export |
| Battery Specification | 3.7V 850mAh Lithium Battery |
| Working temp and humidity | 0oC~50 C, 10%~80%RH |
| Storage temp and humidity | -10oC~60 C, 10%~70%RH |
| Dimension | 120 x 52 x 26 mm |
