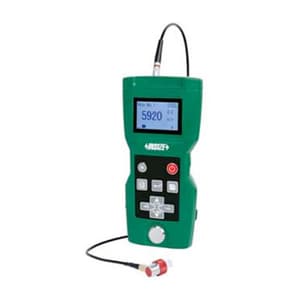

Insize Ultrasonic Thickness Gauge (Advanced Type), ISU-800D

• Real-time temperature compensation eliminates the error caused by temperature variation
• Support both single element transducers and dual element transducers
• Measure the thickness of substrate through coating
• Measuring mode: standard mode (dual element transducer: P-E mode, single element transducer: I-E mode), penetrate coating mode (dual element transducer: I-E mode, single element transducer: E-E mode or auto mode)
• Measure method: single point, scanning, deviation
• Set upper and lower limits for alarm when out-of-tolerance
• Single point and 2 points calibration
• Keyboard lock function avoids parameter setting change caused by unintended press during measurement
• Memory 1000 measurement values
• Data can be transferred to PC by Bluetooth connection or Mini-USB cable

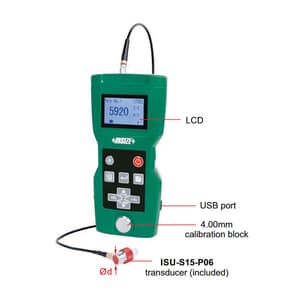

Package Content:

Specification of Transducer (on Steel):

• Module No: SU-S15-P06
• Type: Single Element
• Frequency: 15mHz
• Diameter (Ød): 8 mm
• Measuring Range: 0.9 - 28 mm (I-E) / 0.15 - 14 mm (E-E)
• Min. Size of Pipes (Diameter x Wall thickness): Ø10 x 1.5 mm / Ø15 x 0.35 mm
• Accuracy: ±0.02 mm / 0.3%H (Take the larger one)
• Working Temperature: -10 ~ 60°C
• Application: High Precision or thin workpieces
