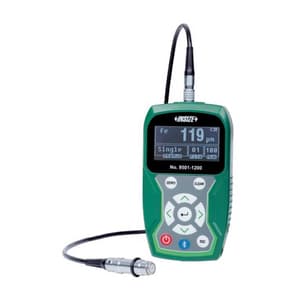

Insize Standard Type Coating Thickness Gauge with Eddy Current Probe, 9501-1200N
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Weight: 170 g
- Probe: Eddy Current Probe
- Measuring Range: 0 - 1250μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹29,524 (Incl. of all taxes)
₹25,020 + ₹4,504 GST (18%)
MRP was MRP ₹36,794
Save 32%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

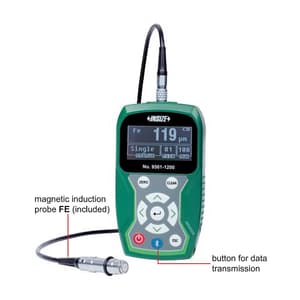

- Magnetic induction probe (FE) measures the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate. Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel) Coating: zinc, copper, chrome, tin, plastic, powder, paint (not for nickel)
- Eddy current probe (NFE) measures the thickness of non-conductive coating on non-magnetic metal substrate. Substrate: copper, aluminum, zinc, non-magnetic stainless steel, Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)
- Tolerance measurement
- Data statistic, including average, variance, maximum and minimum values
- Data can be sent to Excel by connecting to computers via bluetooth or cable of receiver
- Support bluetooth printer
- Automatic power off
- Resolution: 0.1µm (range<100µm) / 1µm (range≥100um)
- Accuracy: ±(3%L+1)µm (range ≤1250µm) / ±(3%L+10)µm (range>1250µm) L is measuring the thickness in µm
Specification of Probe:
| Code | 9501-1200-NFE |
| Range | 0 - 1250µm |
| Minimum Substrate Thickness | 0.3 mm |
| Minimum Measuring Area | Ø15 mm |
| Minimum Curvature Radius of Convex Workpiece | 3 mm |
| Probe Type | Eddy Current Probe (NFE) |

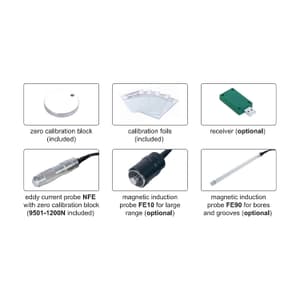

Standard Delivery:
| Coating Thickness Gauge | 1 pc |
| Eddy Current Probe (9501-1200-NFE) | 1 pc |
| Zero Calibration block for NFE probe | 1 pc |
| Software & USB Cable | 1 pc |
| Calibration Foils (50/100/250/500/1000µm) | 1 Set |
| 1.5V VV Battery | 2 pcs |
Optional Accessory:
| Magnetic Induction Probe | 9501-1200-FE |
| Magnetic Induction Probe for bores & grooves | 9501-1200-FE90 |
| Magnetic Induction Probe for Large Range | 9501-1200-FE10 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Probe | Eddy Current Probe |
|---|---|
| Measuring Range | 0 - 1250μm |
| Measuring Mode | Continuous & Single |
| Storage Capacity | 600 |
| Output | Type-C |
| Power Supply | 2x 1.5V AA Batteries |
| Dimensions (mm) | 135 x 77 x 32 mm |
