• Measurement without ultrasonic coupling agent, for workpieces with surface temperatures less than 600°C (depending on the probes)

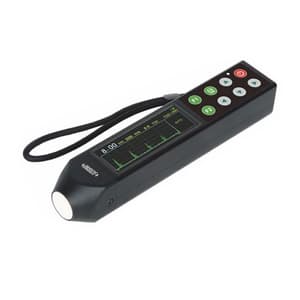

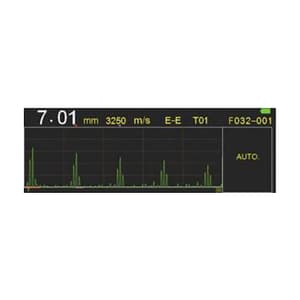

• Compact size, easy to carry, comes with waveform display and full-function keyboard, easy to adjust the measurement parameters
• Non-contact measurement of rough, corroded surfaces without sanding
• Storage of 10000 data and 100 files
• Highly intelligent functions such as alarm for exceeding upper and lower limits, automatic zero calibration, automatic identification of probes, etc
• Automatic power off
• Suitable for inspection of workpieces of various shapes, such as pipes, small tubes, elbows, etc
• Working Gap (The distance between the probe and the measured object): ≤1mm

Accuracy:

• ±0.04mm (H≤10mm)
• ±(0.04+H/1000)mm (10≤H<100mm)
• ±H/333mm (H≥100mm)
• His measuring thickness in mm

Specification of Probe (Code: EMU-B100-T01):

• Magnet: Permanent Magnet
• Measuring Range: 1.5 - 150 mm
• Diameter (Ød): Ø20 mm
• Working Temperature: -10 ~ 120°C
• Application: General use, mainly used for fine crystal materials, such as mild steel, aluminum

What's Included in this Package:

• 1x Main Unit

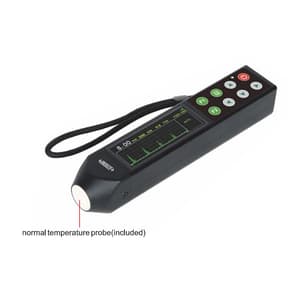

• 1x Normal Temperature Probe
• 1x Calibration Block (8 mm)
• 1x USB Cable
