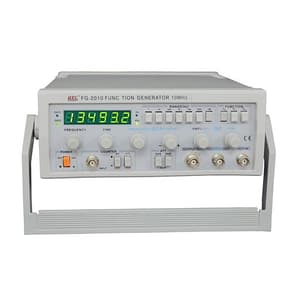

HTC 0.1Hz - 10MHz Function Generator, FG-2010
Roll over image to zoom zoom_in
- Product Type: Function Generators
- Package Contents: Power Cord, BNC Line Cable, Manual
- Dimension: 310 (H) x 230 (W) x 90 (D) mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹11384.64 (Incl. of all taxes)
₹9648+ ₹1736.64 GST (18%)
MRP ₹12060
SAVE 20%
5 Business Days
1 Set
90303350
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
| Frequency Range | Output : Impedance : 50Ω±10% |
| 0.1Hz-2MHz (FG-2002) | Amplitude : no less than 20vp-p (Empty Load) |
| 0.1Hz-10MHz (FG-2010) | Attenuation : 20dB 40dB |
| Waveforms | DC bias 0-±10V (Continuously adjustable) |
| Sine wave, Square wave, Triangle wave, Positive & Negative Sawtooth and Positive & Negative Pulse | Adjustment range of symmetry |
| 90:10-10:90 | |
| Square-wave front | VCF input |
| 0.1Hz-2MHz<100ns | Input Voltage : 5V-0V±10% |
| 0.1Hz-10MHz<35ns | The maximum Voltage ratio : 1000:1 |
| Sine wave Distortion | Input Signa 1: DC-1KHz |
| <1% (10HZ-100KHz) | Frequency meter |
| Frequency response | Measuring Range : 1Hz-20MHz |
| 0.1Hz-100KHz≤±0.5dB | Input impedance : no less than 1MΩ/20pF |
| 100KHz-5MHz≤±1dB | Sensitivity : 100m Vrms |
| 100KHZ-2MHz≤±1dB | The maximum input : 150V (AC+DC) with attenuator |
| TTL/CMOS output | |
| Level : TTL pulse low level is no more than | Input attenuation : 20dB |
| 0.4V, high level is no less than 3.5V | Measurement error : ≤0.003%±1 digit |
| Rissing Time : no more than 100ns | Voltage : 220V±10% (110V±10%) |
| Frequency : 50Hz±2Hz (220V±10%) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.FU.00007 |
|---|---|
| Product Type | Function Generators |
| Model No | FG2010 |
| Package Contents | Power Cord, BNC Line Cable, Manual |
| Dimension | 310 (H) x 230 (W) x 90 (D) mm |
