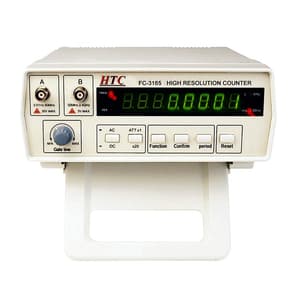

HTC AC 220V Frequency Counter, VC-3165
Roll over image to zoom zoom_in
- Product Type: Function Generators
- Dimension: 270 (H) x 215 (W) x 100 (D) mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹4332.96 (Incl. of all taxes)
₹3672+ ₹660.96 GST (18%)
MRP ₹4590
SAVE 20%
Out of Stock
7 Business Days
1 Pcs
90303350
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- 8 digits green LED display
- Selective range, high stability
- Two Channels, operation mode memory
- Range and gate time adjustable
- Power supply: AC 220V, +10%
Standard Accessories :
- Manual
- Test Probe
- Power Cord
| Frequency Range | Accuracy |
| 0.01Hz ~ 2.4GHz | Time base error x Frequency+ 1Digit |
| Cyclic Measurement Range | Time Gate |
| 0.5nS ~ 10S | 100ms ~ 10s |
| Attenuation | Input impedance |
| 20dB | 1MΩ |
| Channel A (40MHz ~ 2.4GHz) | Channel B (0.01Hz ~ 40MHz) |
| Sensitivity : 50m Vrms | Sensitivity : 30m Vrms |
| Input resistance : 50Ω | Input resistance : 1MΩ (<35pF) |
| Maximum Input : 3V | Maximum Input : 30V |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.FU.00005 |
|---|---|
| Product Type | Function Generators |
| Model No | VC-3165 |
| Dimension | 270 (H) x 215 (W) x 100 (D) mm |
